Toyota MR2
1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · United States
Discontinued model
Data version 1989-12

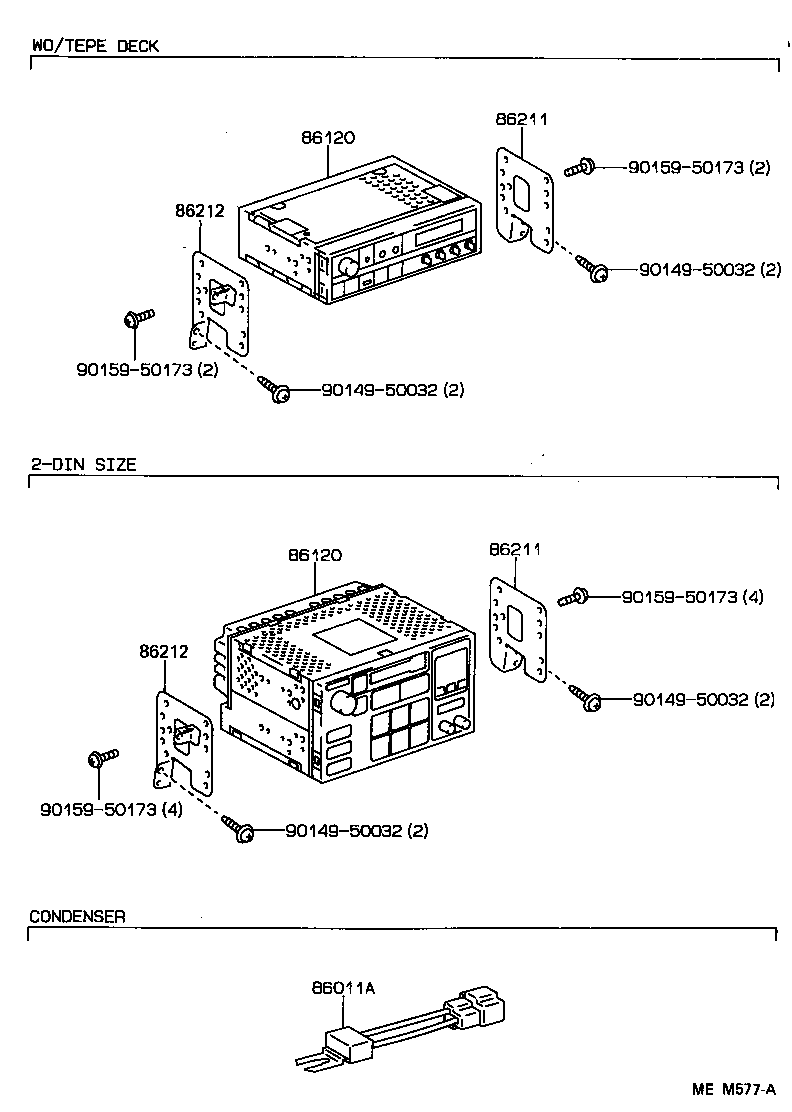

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86011A — Condenser, Radio Setting | ||||
| 90980-04041 |
Condenser, Radio Setting
1984-12 → 1989-12
ended
|
AW11 | — | |
| 86120 — Receiver Assy, Radio | ||||
| 86120-12430 |
Receiver Assy, Radio
1988-03 → 1988-08
ended
|
AW11 | — | |
| 86120-12430 note |
Receiver Assy, Radio
1987-08 → 1988-03
ended
|
AW11 | — | |
| 86120-17050 note |
Receiver Assy, Radio
1984-12 → 1985-08
ended
|
AW11 | — | |
| 86120-17051 note |
Receiver Assy, Radio
1985-08 → 1986-08
ended
|
AW11 | — | |
| 86120-17061 note |
Receiver Assy, Radio
1985-08 → 1986-08
ended
|
AW11 USA | — | |
| 86120-17070 note |
Receiver Assy, Radio
1984-12 → 1986-08
ended
|
AW11 | — | |
| 86120-17140 note |
Receiver Assy, Radio
1986-08 → 1987-08
ended
|
AW11 | — | |
| 86120-17160 note |
Receiver Assy, Radio
1986-08 → 1988-03
ended
|
AW11 | — | |
| 86120-17160 |
Receiver Assy, Radio
1988-03 → 1988-08
ended
|
AW11 | — | |
| 86120-17180 |
Receiver Assy, Radio
1988-08 → 1989-12
ended
|
AW11 USA | — | |
| 86120-20680 |
Receiver Assy, Radio
1988-03 → 1988-08
ended
|
AW11 USA | — | |
| 86120-20680 note |
Receiver Assy, Radio
1987-08 → 1988-03
ended
|
AW11 USA | — | |
| 86120-28030 note |
Receiver Assy, Radio
1986-08 → 1987-08
ended
|
AW11 USA | — | |
| 86120-32130 note |
Receiver Assy, Radio
1986-08 → 1988-03
ended
|
AW11 | — | |
| 86120-32130 |
Receiver Assy, Radio
1988-03 → 1988-08
ended
|
AW11 | — | |
| 86120-32330 note |
Receiver Assy, Radio
1988-08 → 1989-12
ended
|
AW11 | — | |
| 86120-32370 |
Receiver Assy, Radio
1988-08 → 1989-12
ended
|
AW11 | — | |
| 86120-32390 note |
Receiver Assy, Radio
1988-08 → 1989-12
ended
|
AW11 USA | — | |
| 86211 — Bracket, Radio, NO.1 | ||||
| 86211-17010 |
Bracket, Radio, NO.1
1984-12 → 1986-08
ended
|
AW11 | — | |
| 86211-17030 |
Bracket, Radio, NO.1
1986-08 → 1989-12
ended
|
AW11 | — | |
| 86212 — Bracket, Radio, NO.2 | ||||
| 86212-17010 |
Bracket, Radio, NO.2
1984-12 → 1986-08
ended
|
AW11 | — | |
| 86212-17030 |
Bracket, Radio, NO.2
1986-08 → 1989-12
ended
|
AW11 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
