Toyota MR2
1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · United States
Discontinued model
Data version 1989-12
Transmission Case & Oil Pan (ATM)

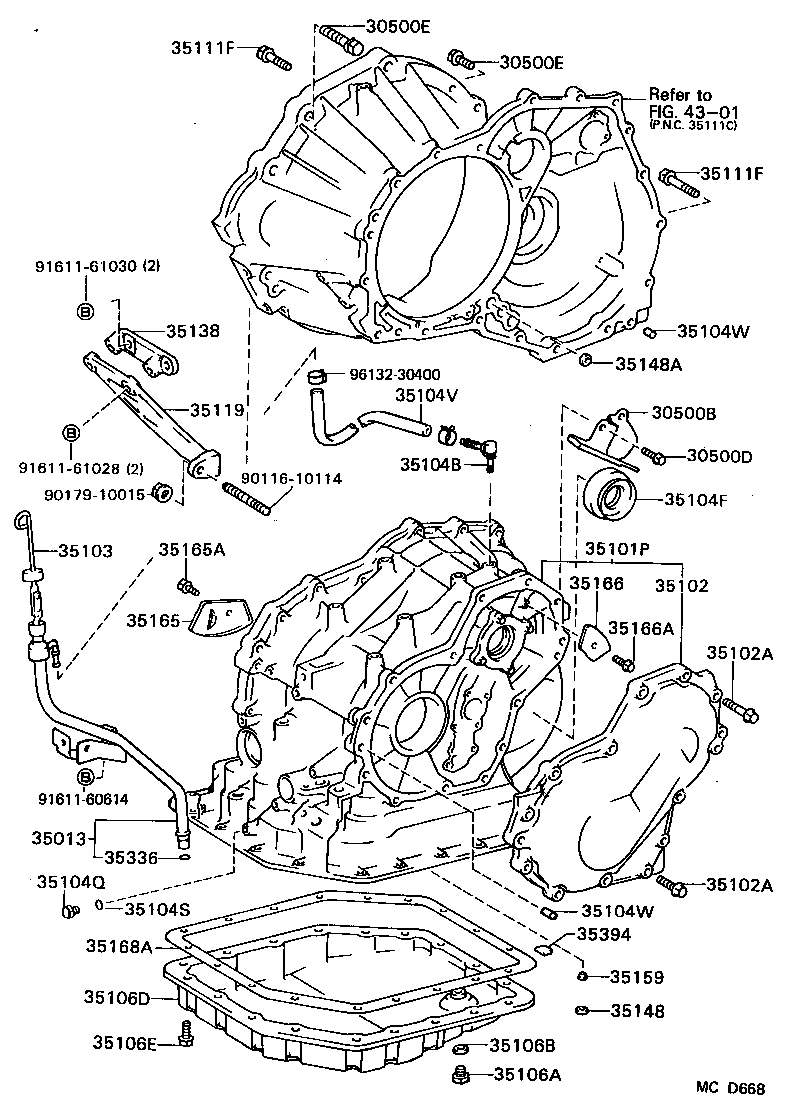

36 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 30500B | Protector, Transaxle Case |
| 30500D | Bolt(FOR TRANSAXLE CASE PROTECTOR) |
| 30500E | Bolt(FOR TRANSAXLE & ENGINE SETTING) |
| 35013 | Tube Sub-assy, Transmission Oil Filler |
| 35101P | Case & Cover Sub-assy, Transaxle |
| 35102 | Cover Sub-assy, Transaxle Rear |
| 35102A | Bolt (FOR TRANSAXLE REAR COVER SETTING) |
| 35103 | Gage Sub-assy, Transmission Oil Level |
| 35104B | Plug, Breather, NO.1 (ATM) |
| 35104E | Case Sub-assy, Automatic Transaxle |
| 35104F | Seal, Oil (FOR TRANSAXLE CASE) |
| 35104Q | Plug, NO.1 (FOR TRANSAXLE CASE) |
| 35104S | Ring, O (FOR TRANSAXLE CASE PLUG NO.1) |
| 35104U | Bolt (FOR TRANSAXLE CASE) |
| 35104V | Hose (FOR BREATHER PLUG) |
| 35104W | Pin, Straight (FOR TRANSAXLE CASE) |
| 35106A | Plug Sub-assy, Drain (ATM) |
| 35106B | Gasket, Drain Plug (ATM) |
| 35106D | Pan Sub-assy, Automatic Transaxle Oil |
| 35106E | Bolt (FOR TRANSAXLE OIL PAN) |
| 35111F | Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) |
| 35119 | Plate, Stifener, LH (ATM) |
| 35138 | Adapter, Stiffener Plate |
| 35148 | Gasket, Governor Apply, NO.1 |
| 35148A | Gasket, Governor Apply, NO.2 |
| 35159 | Gasket, Brake Drum |
| 35165 | Plate, Transmission Case, NO.1 |
| 35165A | Bolt (FOR TRANSMISSION CASE PLATE NO.1) |
| 35166 | Plate, Transmission Case, NO.3 |
| 35166A | Bolt (FOR TRANSMISSION CASE PLATE NO.3) |
| 35168A | Gasket, Automatic Transaxle Oil Pan |
| 35175 | Cap, Transaxle Case, NO.2 |
| 35175A | Ring, O (FOR TRANSAXLE CASE CAP) |
| 35179 | Gasket, Overdrive Brake |
| 35336 | Ring, O (FOR TRANSMISSION OIL FILLER TUBE) |
| 35394 | Magnet, Oil Cleaner (FOR TRANSMISSION) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
