Toyota MR2
1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · United States
Discontinued model
Data version 1989-12

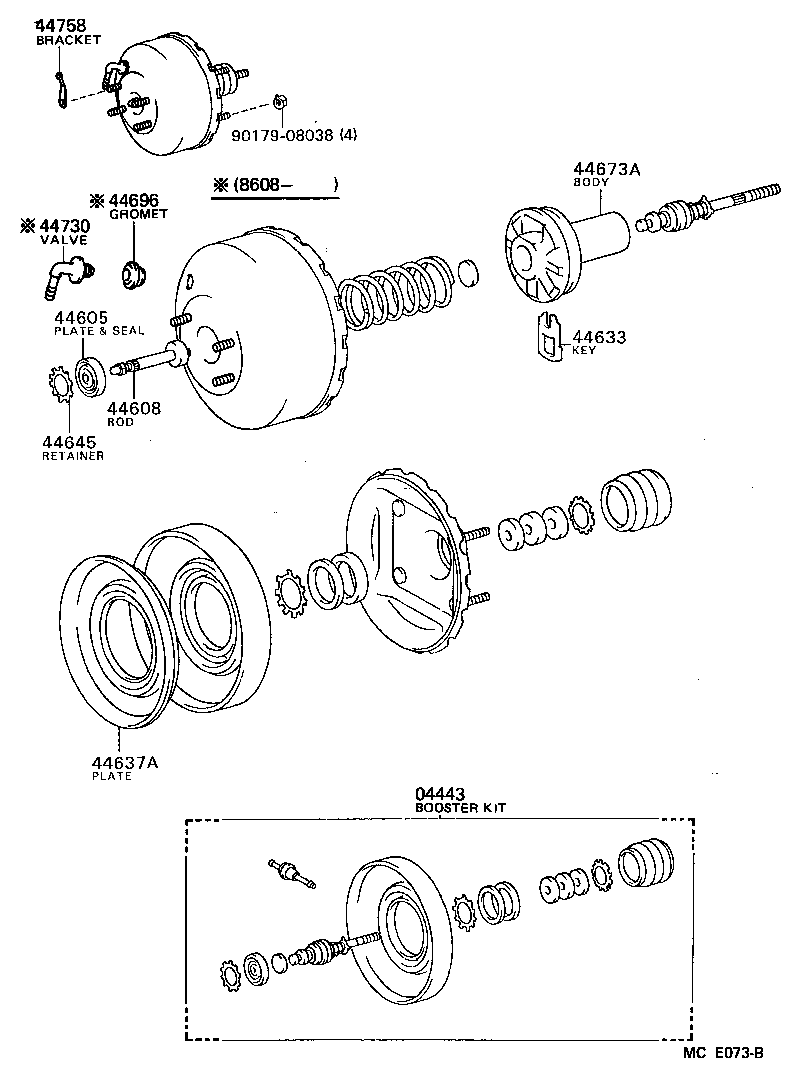

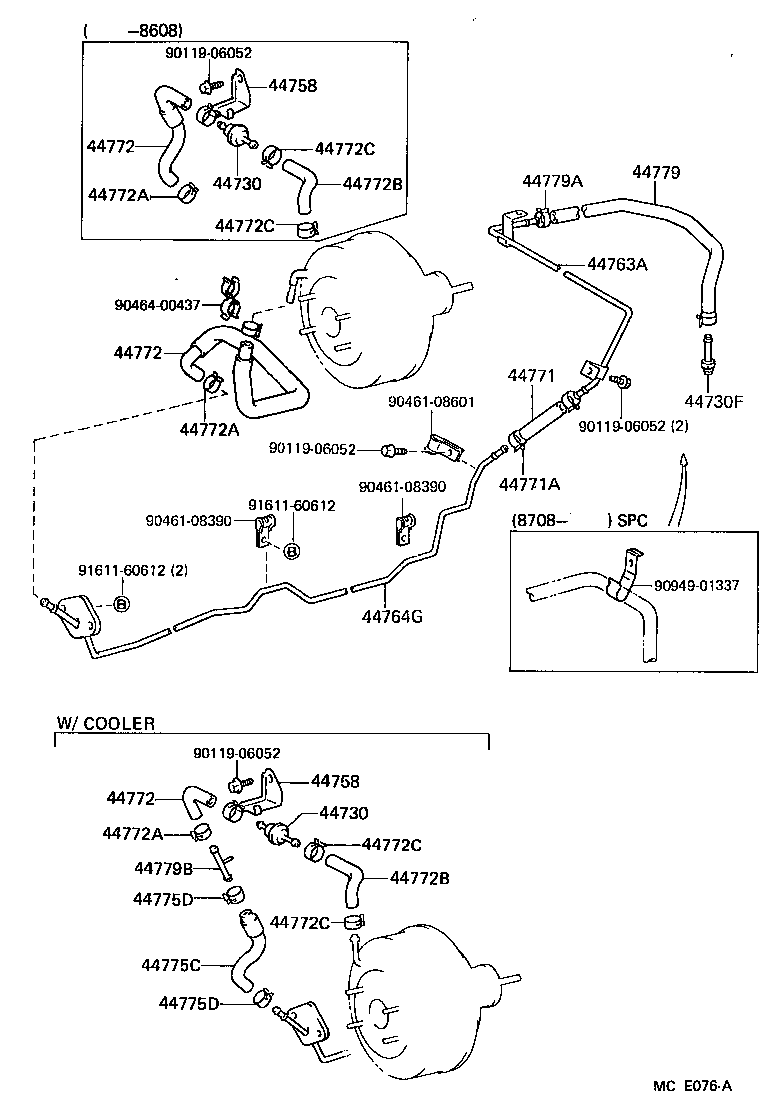

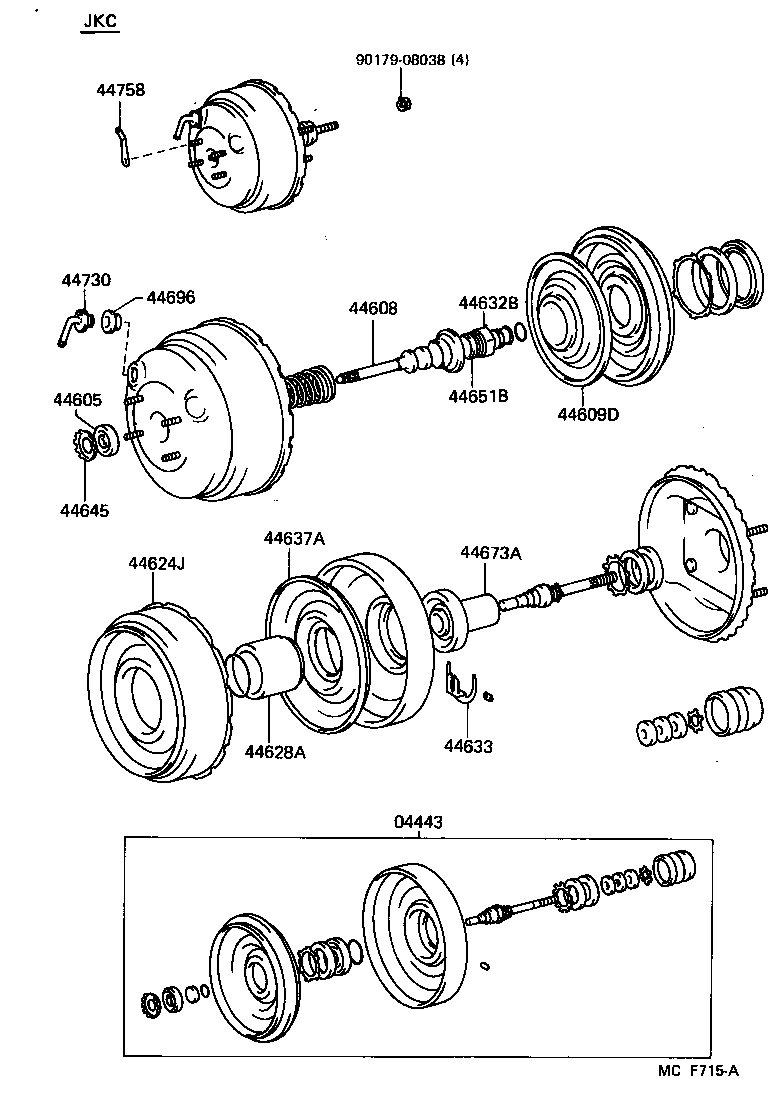

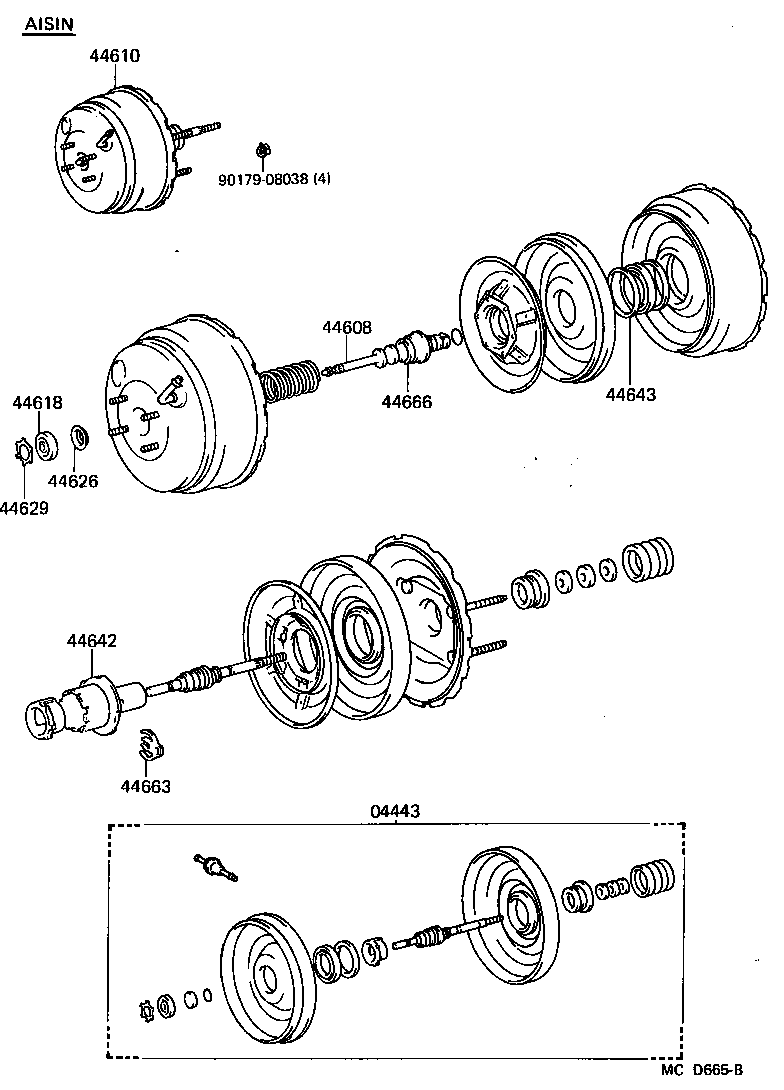

Brake Booster & Vacuum Tube
37 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 04443 | Booster Kit, Brake |
| 44605 | Plate & Seal Sub-assy, Booster |
| 44608 | Push Rod Sub-assy, Booster |
| 44609D | Plate & Retainer Sub-assy, Booster |
| 44610 | Booster Assy, Brake |
| 44618 | Seal, Booster Body |
| 44624J | Plate, Booster Center |
| 44626 | Retainer, Booster Rod Cup |
| 44628A | Body, Booster Center |
| 44629 | Ring, Circular Internal |
| 44632B | Hub, Booster Reaction Disk |
| 44633 | Key, Booster Valve Plunger |
| 44637A | Plate, Booster Diaphragm |
| 44642 | Piston, Brake Booster |
| 44643 | Retainer, Diaphragm |
| 44645 | Retainer, Booster Push Rod Seal |
| 44651B | Nut, Booster |
| 44663 | Key, Valve Stopper |
| 44666 | Case, Reaction Disc |
| 44673A | Body, Booster Valve |
| 44696 | Grommet, Check Valve |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730F | Union, Vacuum Hose(FOR MANIFOLD SIDE) |
| 44758 | Bracket, Vacuum Check Valve |
| 44763A | Tube, Hose TO Hose, NO.1 |
| 44764G | Tube, Connector TO Brake Booster |
| 44771 | Hose, Vacuum Tube Connector |
| 44771A | Clip(FOR VACUUM TUBE CONNECTOR HOSE) |
| 44772 | Hose, Check Valve TO Connector Tube |
| 44772A | Clip(FOR CHECK VALVE TO CONNECTOR TUBE) |
| 44772B | Hose, Check Valve TO Brake Booster |
| 44772C | Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) |
| 44775C | Hose, Connector TO Way |
| 44775D | Clamp(FOR CONNECTOR TO WAY HOSE) |
| 44779 | Hose, Union TO Connector |
| 44779A | Clip(FOR UNION TO CONNECTOR HOSE) |
| 44779B | Way(FOR UNION TO CONNECTOR HOSE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
