Toyota MR2

1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · United States

Discontinued model Data version 1989-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

20 part groups · 2 illustrations

Illustrations

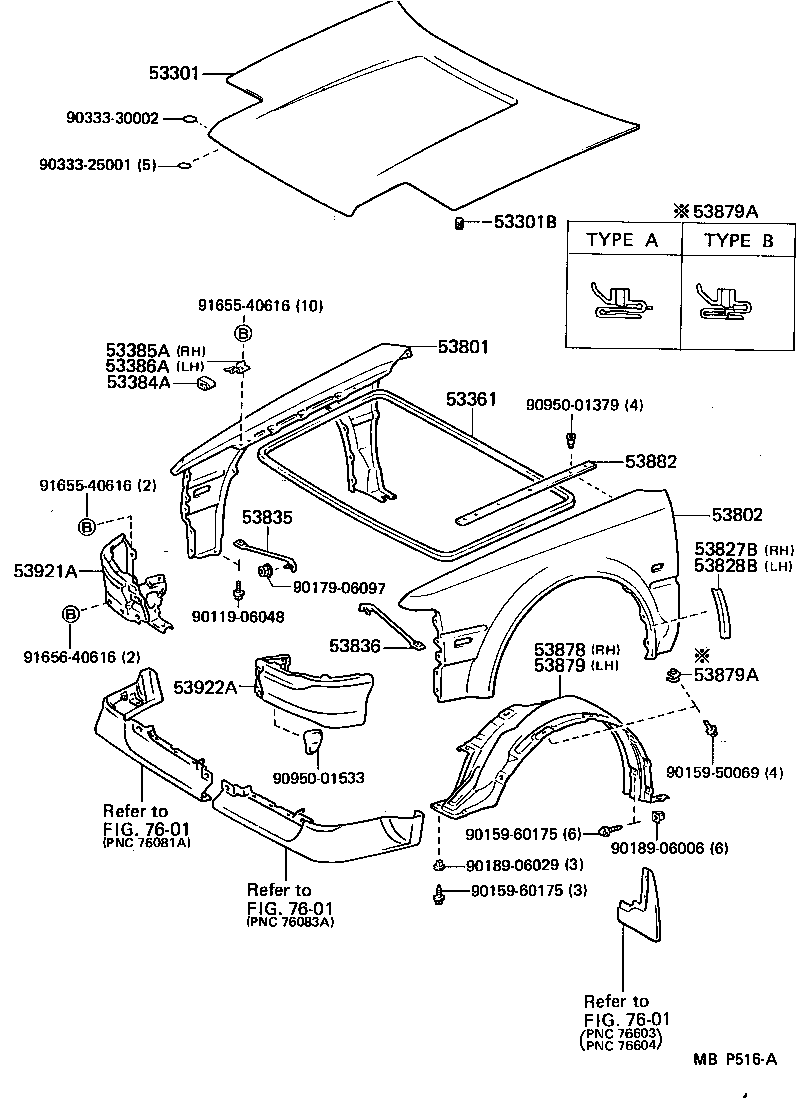

Figure MBG262G MBG262G 1984-12 → 1986-08 Figure MBP516A MBP516A 1986-08 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53301B Cushion, Hood Bumper
53361 Weatherstrip, Hood
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384A Bumper, Fender TO Hood
53385A Retainer, Hood Bumper, RH
53386A Retainer, Hood Bumper, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53827B Protector, Front Fender Side Panel
53828B Protector, Front Fender Side Panel, LH
53835 Brace, Front Fender TO Extension, RH
53836 Brace, Front Fender TO Extension, LH
53878 Liner, Front Fender, RH
53879 Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53882 Packing, Front Fender Main
53921A Panel, Front Valance, RH
53922A Panel, Front Valance, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
