Toyota MR2
1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · United States
Discontinued model
Data version 1989-12

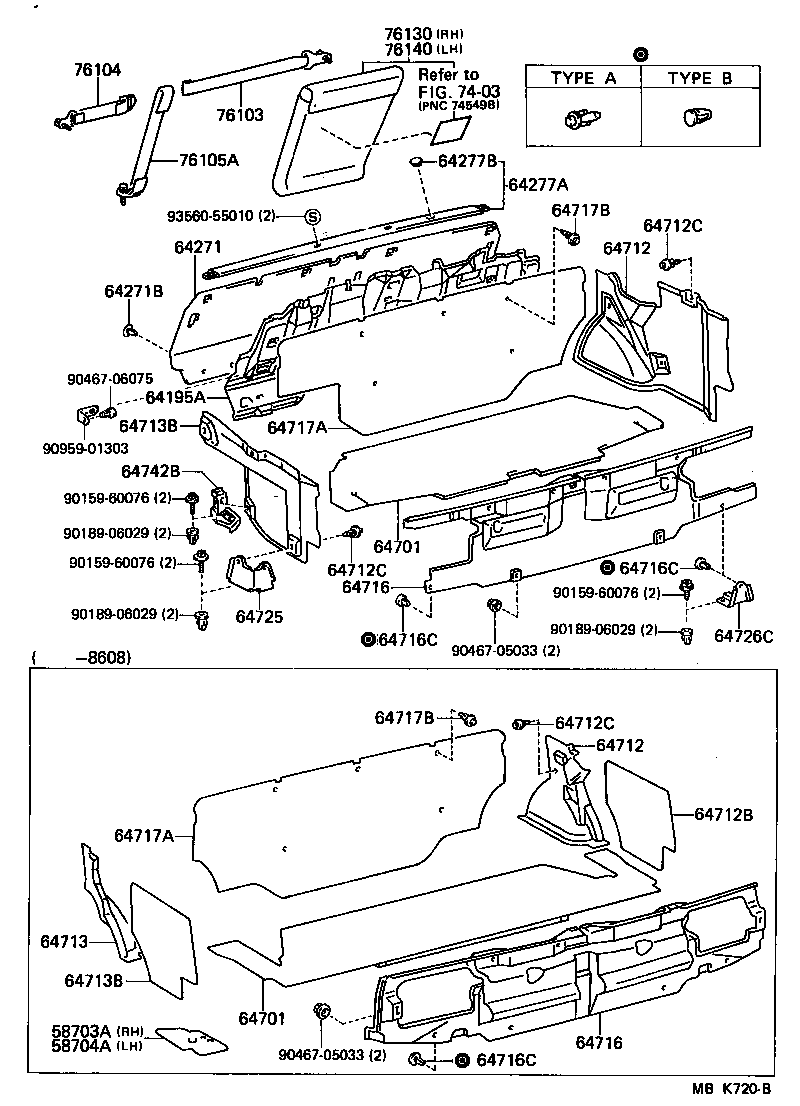

Package Tray Panel & Luggage Compartment Mat
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58703A | Cover Sub-assy, Luggage Compartment Side, RH |
| 58704A | Cover Sub-assy, Luggage Compartment Side, LH |
| 64271 | Board, Room Partition, NO.1 |
| 64271B | Clip(FOR ROOM PARTITION BOARD) |
| 64277A | Moulding, Room Partition Trim |
| 64277B | Plug, Hole(FOR ROOM PARTITION TRIM MOULDING) |
| 64701 | Mat Sub-assy, Luggage Compartment |
| 64712 | Cover, Luggage Compartment Trim, RH |
| 64712B | Cover, Luggage Compartment Trim, Side, RH |
| 64712C | Clip(FOR LUGGAGE COMPARTMENT TRIM COVER) |
| 64713 | Cover, Luggage Compartment Trim, LH |
| 64713B | Cover, Luggage Compartment Trim, Side, LH |
| 64716 | Cover, Luggage Compartment, Rear Center |
| 64716C | Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64717B | Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) |
| 64718B | Cover, Luggage Trim Service Hole |
| 64721A | Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) |
| 64721B | Cover, Luggage Compartment Trim, NO.1 |
| 64722B | Cover, Luggage Compartment Trim, NO.2 |
| 64723A | Cover, Luggage Compartment Trim, Inner Lower |
| 64725 | Retainer, Luggage Compartment Cover, NO.1 |
| 64726C | Retainer, Deck Trim Rear Cover |
| 64742B | Base, Deck Trim Side Cover, LH |
| 64751A | Bracket, Luggage Compartment Cover, NO.1 |
| 64770 | Cover Assy, Spare Wheel |
| 76103 | Belt Sub-assy, Roof Glass Bag, Inner |
| 76104 | Belt Sub-assy, Roof Glass Bag, Outer |
| 76105A | Belt Sub-assy, Roof Glass Bag, Lower |
| 76130 | Bag Assy, Roof Glass, RH |
| 76140 | Bag Assy, Roof Glass, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
