Toyota MR2

1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · United States

Discontinued model Data version 1989-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

4 part groups · 2 illustrations

Illustrations

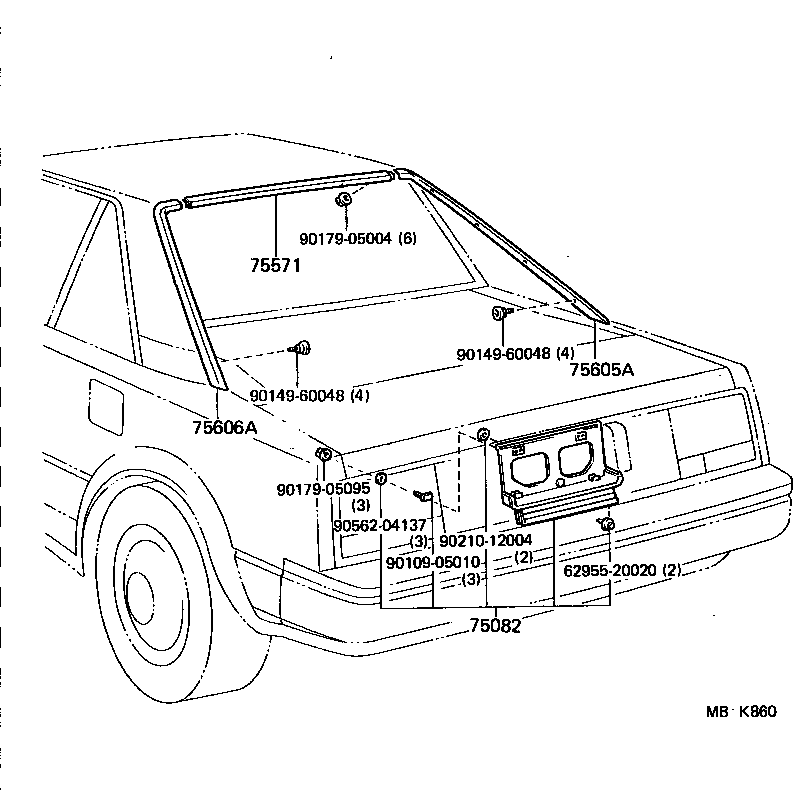

Figure MBH944A MBH944A 1984-12 → 1986-08 Figure MBK860 MBK860 1986-08 → —

Part groups

PNCDescription
75082 Panel Sub-assy, Lower Back Finish, Center
75571 Moulding, Back Window, Outside Upper
75605A Moulding Sub-assy, Quarter Outside, RH
75606A Moulding Sub-assy, Quarter Outside, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
