Toyota MR2

1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · United States

Discontinued model Data version 1989-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

9 part groups · 3 illustrations

Illustrations

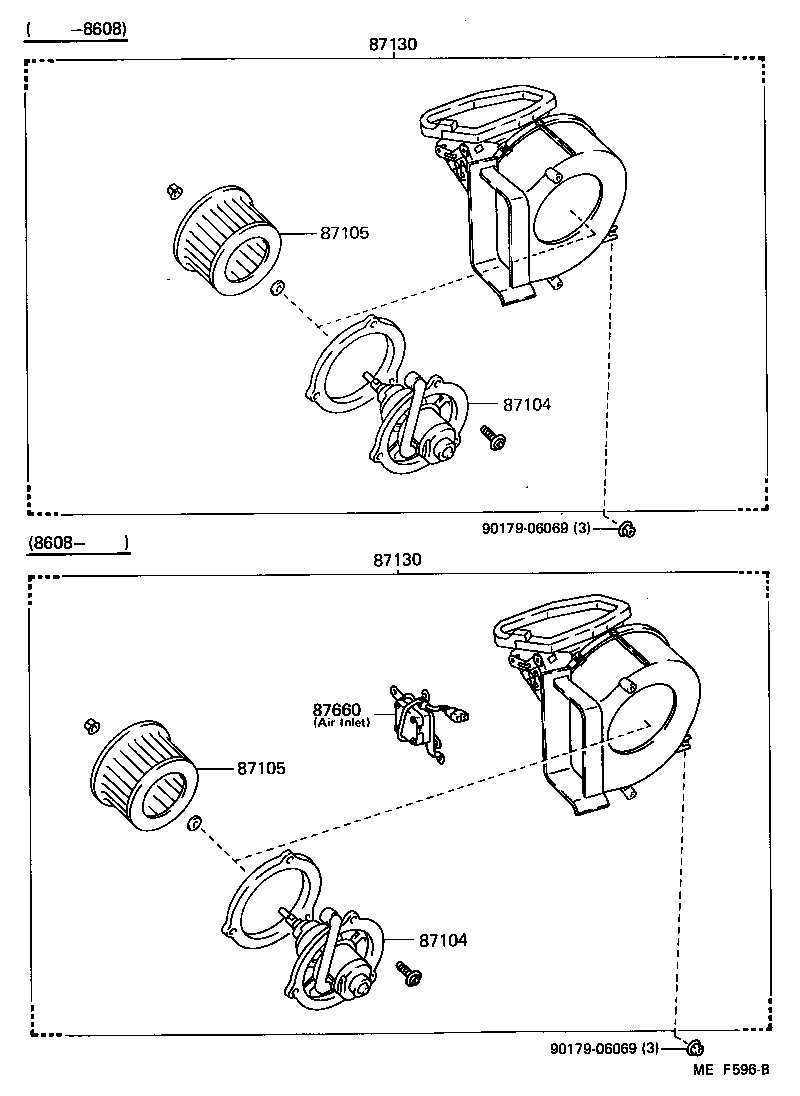

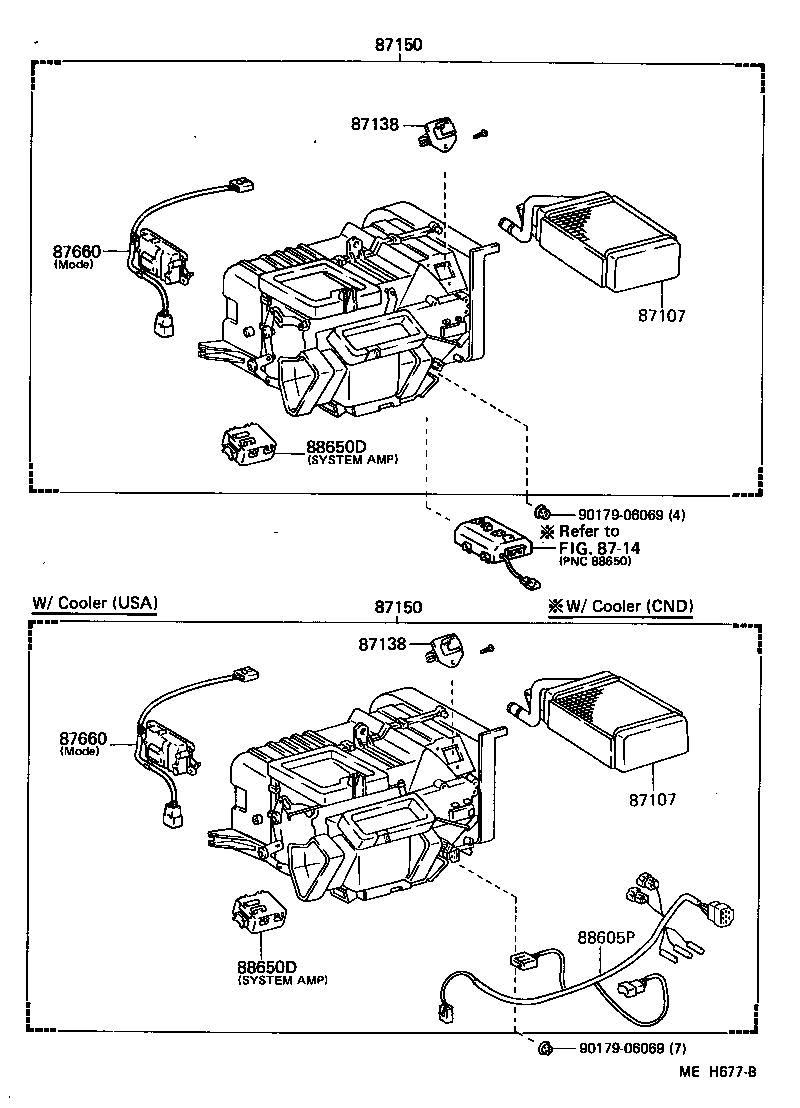

Figure MEF595B MEF595B 1984-12 → 1986-08 Figure MEH677B MEH677B 1986-08 → — Figure MEF596B MEF596B 1984-12 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87660 Servo Assy, Air Conditioner
88605P Harness Sub-assy, Air Conditioner Wiring
88650D Amplifier Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
