Toyota MR2

1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · United States

Discontinued model Data version 1989-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

19 part groups · 4 illustrations

Illustrations

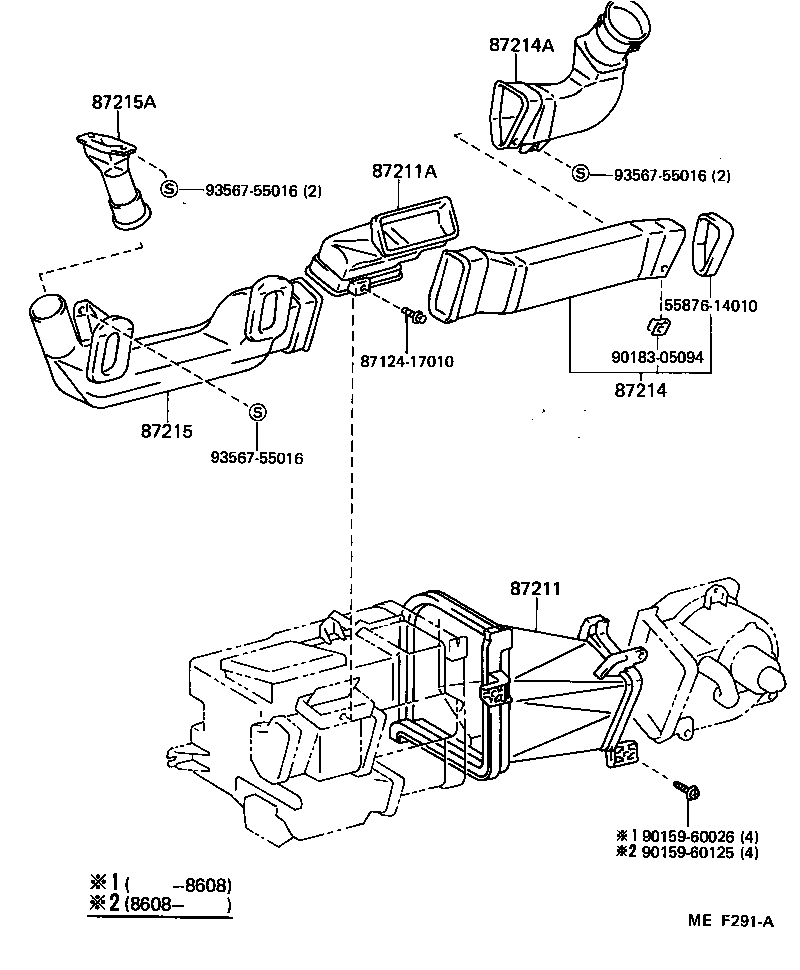

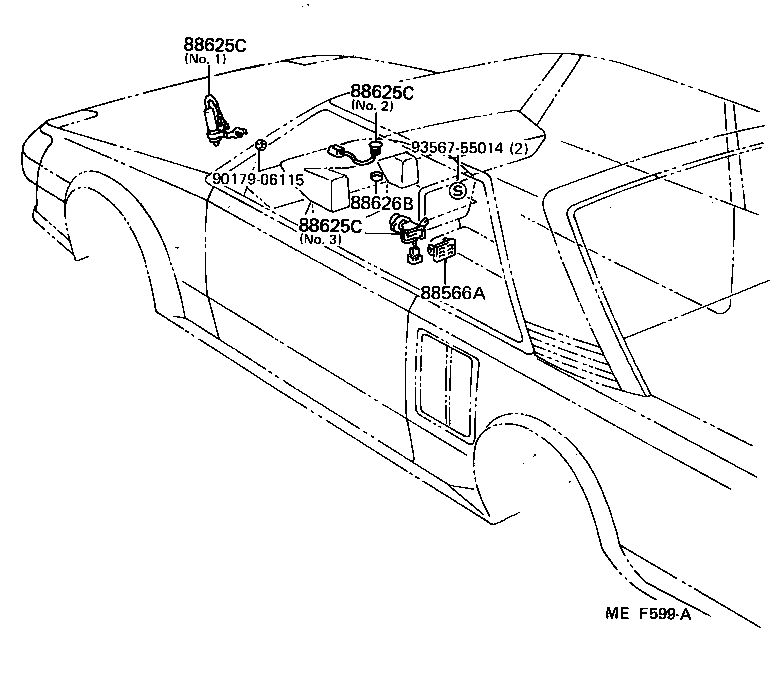

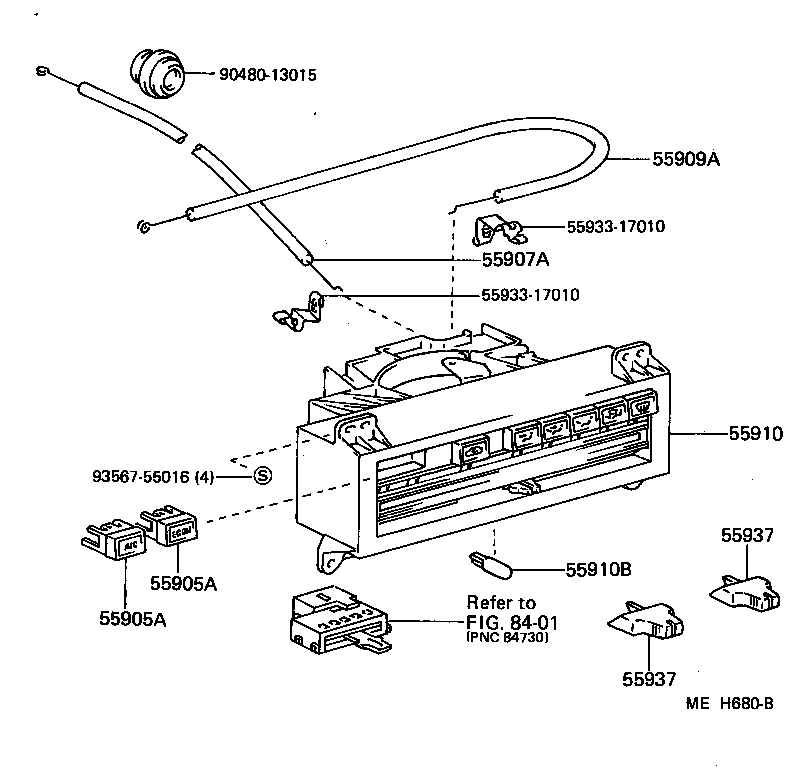

Figure MEF598 MEF598 1984-12 → 1986-08 Figure MEH680B MEH680B 1986-08 → — Figure MEF599A MEF599A 1984-12 → 1986-08 Figure MEF291A MEF291A 1984-12 → —

Part groups

PNCDescription
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910B Bulb, Heater Control
55923 Retainer, Heater Control, Upper
55937 Knob, Heater Control Lever
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87214 Duct, Air, Side NO.1 RH
87214A Duct, Air, Side NO.2 RH
87215 Duct, Air, Side NO.1 LH
87215A Duct, Air, Side NO.2 LH
87284 Resistor Sub-assy, Variable
88566A Duct, Cooler Air, NO.1
88625C Thermistor, Cooler
88626B Holder, Thermistor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
