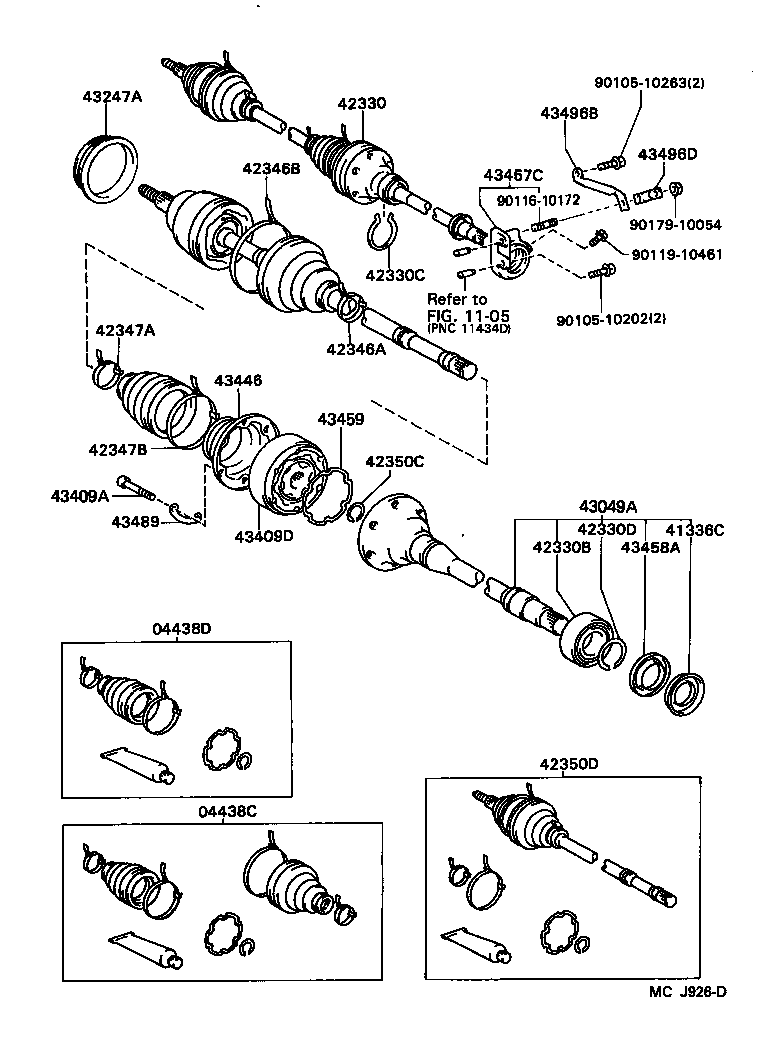

Exploded illustration MCJ926D 9010510263 — not listed in this catalogue 43247A — DEFLECTOR, REAR WHEEL BEARING DUST, NO.2 (3 parts) 42330 — SHAFT ASSY, REAR DRIVE, RH (10 parts) 43496B — STAY, REAR DRIVE SHAFT BEARING BRACKET, NO.1 (1 parts) 43496D — STAY, REAR DRIVE SHAFT BEARING BRACKET, NO.2 (2 parts) 42346B — CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT) (4 parts) 43457C — BRACKET, DRIVE SHAFT BEARING (1 parts) 9011610172 — not listed in this catalogue 9017910054 — not listed in this catalogue 9011910461 — not listed in this catalogue 42330C — RING, HOLE SNAP(FOR REAR DRIVE SHAFT) (4 parts) 1105 — not listed in this catalogue 9010510202 — not listed in this catalogue 42347A — CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) (2 parts) 42346A — CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) (2 parts) 43446 — COVER, REAR AXLE INBOARD JOINT (3 parts) 43459 — GASKET, REAR AXLE INBOARD JOINT END COVER (3 parts) 42347B — CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) (6 parts) 42350C — RING, SNAP (FOR REAR DRIVE SHAFT OUTBOARD JOINT) (4 parts) 43409A — BOLT (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT) (2 parts) 43049A — SHAFT SUB-ASSY, FRONT DRIVE FLANGE (2 parts) 43489 — WASHER, REAR DRIVE SHAFT CROSS GROOVE JOINT (2 parts) 42330D — RING, SHAFT SNAP(FOR REAR DRIVE SHAFT) (1 parts) 41336C — COVER, DUST(FOR REAR DRIVE SHAFT) (4 parts) 43409D — JOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE (3 parts) 42330B — BEARING(FOR REAR DRIVE SHAFT) (3 parts) 43458A — COVER, REAR DRIVE SHAFT DUST (1 parts) 04438D — BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT (4 parts) 42350D — JOINT ASSY, REAR DRIVE SHAFT OUTBOARD, RH (8 parts) 04438C — BOOT KIT, REAR DRIVE SHAFT (4 parts)
MCJ926D · 24 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
79 parts on this figure
Part number Description Fitment Price
04438C — Boot Kit, Rear Drive Shaft
04437-17040 Boot Kit, Rear Drive Shaft
1990-01 → 1993-11 ended
SW20 —
04437-17040 Boot Kit, Rear Drive Shaft
1993-11 → 1995-06 ended
SW20 —
04438-20070 Boot Kit, Rear Drive Shaft
1990-01 → 1992-01 ended
SW21 —
04438-20070 Boot Kit, Rear Drive Shaft
1992-01 → 1995-06 ended
SW21 —
04438D — Boot Kit, Rear Drive Shaft Inboard Joint
04437-17030 Boot Kit, Rear Drive Shaft Inboard Joint
1990-01 → 1993-11 ended
SW20 —
04437-17030 Boot Kit, Rear Drive Shaft Inboard Joint
1993-11 → 1995-06 ended
SW20 —
04438-20060 Boot Kit, Rear Drive Shaft Inboard Joint
1990-01 → 1992-01 ended
SW21 —
04438-20060 Boot Kit, Rear Drive Shaft Inboard Joint
1992-01 → 1995-06 ended
SW21 —
41336C — Cover, Dust(FOR REAR DRIVE SHAFT)
41336-12020 note Cover, Dust(FOR REAR DRIVE SHAFT)
1990-01 → 1995-06 ended
SW20 —
41336-17020 note Cover, Dust(FOR REAR DRIVE SHAFT)
1990-01 → 1995-06 ended
SW20 —
41336-32010 note Cover, Dust(FOR REAR DRIVE SHAFT)
1990-01 → 1995-06 ended
SW21 —
41336-32020 note Cover, Dust(FOR REAR DRIVE SHAFT)
1990-01 → 1995-06 ended
SW21 —
42330 — Shaft Assy, Rear Drive, RH
42330-17110 Shaft Assy, Rear Drive, RH
1990-01 → 1991-01 ended
SW21 —
42330-17111 Shaft Assy, Rear Drive, RH
1991-01 → 1995-06 ended
SW21 —
42330-17120 note Shaft Assy, Rear Drive, RH
1990-01 → 1991-01 ended
SW21 —
42330-17121 note Shaft Assy, Rear Drive, RH
1991-01 → 1995-06 ended
SW21 —
42330-17130 Shaft Assy, Rear Drive, RH
1990-01 → 1991-01 ended
SW20 —
42330-17131 Shaft Assy, Rear Drive, RH
1991-01 → 1995-06 ended
SW20 —
42330-17140 note Shaft Assy, Rear Drive, RH
1990-01 → 1991-01 ended
SW20 —
42330-17141 note Shaft Assy, Rear Drive, RH
1991-01 → 1995-06 ended
SW20 —
42330-17150 note Shaft Assy, Rear Drive, RH
1992-01 → 1995-06 ended
SW20 —
42330-17160 note Shaft Assy, Rear Drive, RH
1992-01 → 1995-06 ended
SW20 —
42330B — Bearing(FOR REAR DRIVE SHAFT)
90369-41001 Bearing(FOR REAR DRIVE SHAFT)
1992-01 → 1993-11 ended
SW20 —
90369-41001 Bearing(FOR REAR DRIVE SHAFT)
1993-11 → 1995-06 ended
SW20 —
90369-41001 Bearing(FOR REAR DRIVE SHAFT)
1990-01 → 1992-01 ended
SW20 —
42330C — Ring, Hole Snap(FOR REAR DRIVE SHAFT)
90521-27005 Ring, Hole Snap(FOR REAR DRIVE SHAFT)
1990-01 → 1995-06 ended
SW21 —
90521-78002 Ring, Hole Snap(FOR REAR DRIVE SHAFT)
1990-01 → 1992-01 ended
SW20 —
90521-78002 Ring, Hole Snap(FOR REAR DRIVE SHAFT)
1992-01 → 1993-11 ended
SW20 —
90521-78002 Ring, Hole Snap(FOR REAR DRIVE SHAFT)
1993-11 → 1995-06 ended
SW20 —
42330D — Ring, Shaft Snap(FOR REAR DRIVE SHAFT)
90520-38015 Ring, Shaft Snap(FOR REAR DRIVE SHAFT)
1990-01 → 1995-06 ended
SW20 —
42346A — Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
42345-14010 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
1990-01 → 1995-06 ended
SW20 —
90949-01559 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
1990-01 → 1995-06 ended
SW21 —
42346B — Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
42345-16060 Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
1993-07 → 1995-06 ended
SW21 —
42345-16070 Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
1993-07 → 1995-06 ended
SW20 —
90949-01339 Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
1990-01 → 1993-07 ended
SW20 —
90949-01473 Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
1990-01 → 1993-07 ended
SW21 —
42347A — Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42345-14010 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
1990-01 → 1995-06 ended
SW20 —
90949-01559 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
1990-01 → 1995-06 ended
SW21 —
42347B — Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42345-16090 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
1993-07 → 1995-06 ended
SW21 —
42345-16100 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
1993-11 → 1995-06 ended
SW20 —
42345-16100 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
1993-07 → 1993-11 ended
SW20 —
42345-30010 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
1990-01 → 1993-07 ended
SW21 —
90949-01340 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
1990-01 → 1992-01 ended
SW20 —
90949-01340 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
1992-01 → 1993-07 ended
SW20 —
42350C — Ring, Snap (FOR REAR DRIVE SHAFT OUTBOARD JOINT)
90520-26028 Ring, Snap (FOR REAR DRIVE SHAFT OUTBOARD JOINT)
1992-01 → 1993-11 ended
SW20 —
90520-26028 Ring, Snap (FOR REAR DRIVE SHAFT OUTBOARD JOINT)
1993-11 → 1995-06 ended
SW20 —
90520-26028 Ring, Snap (FOR REAR DRIVE SHAFT OUTBOARD JOINT)
1990-01 → 1992-01 ended
SW20 —
90520-26048 Ring, Snap (FOR REAR DRIVE SHAFT OUTBOARD JOINT)
1990-01 → 1995-06 ended
SW21 —
42350D — Joint Assy, Rear Drive Shaft Outboard, RH
43460-19375 Joint Assy, Rear Drive Shaft Outboard, RH
1990-01 → 1991-01 ended
SW21 —
43460-19376 Joint Assy, Rear Drive Shaft Outboard, RH
1991-01 → 1995-06 ended
SW21 —
43460-19385 note Joint Assy, Rear Drive Shaft Outboard, RH
1990-01 → 1991-01 ended
SW21 —
43460-19386 note Joint Assy, Rear Drive Shaft Outboard, RH
1991-01 → 1995-06 ended
SW21 —
43470-19355 Joint Assy, Rear Drive Shaft Outboard, RH
1990-01 → 1991-01 ended
SW20 —
43470-19356 Joint Assy, Rear Drive Shaft Outboard, RH
1991-01 → 1995-06 ended
SW20 —
43470-19365 note Joint Assy, Rear Drive Shaft Outboard, RH
1990-01 → 1991-01 ended
SW20 —
43470-19366 note Joint Assy, Rear Drive Shaft Outboard, RH
1991-01 → 1995-06 ended
SW20 —
43049A — Shaft Sub-assy, Front Drive Flange
43049-17010 note Shaft Sub-assy, Front Drive Flange
1992-01 → 1995-06 ended
SW20 —
43049-32030 Shaft Sub-assy, Front Drive Flange
1990-01 → 1995-06 ended
SW20 —
43247A — Deflector, Rear Wheel Bearing Dust, NO.2
43247-12010 note Deflector, Rear Wheel Bearing Dust, NO.2
1990-01 → 1995-06 ended
SW2# —
43247-32011 Deflector, Rear Wheel Bearing Dust, NO.2
1990-01 → 1991-06 ended
SW2# —
43247-33010 Deflector, Rear Wheel Bearing Dust, NO.2
1991-06 → 1995-06 ended
SW2# —
43409A — Bolt (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)
90110-10007 Bolt (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)
1993-11 → 1995-06 ended
SW20 —
90110-10007 Bolt (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)
1990-01 → 1993-11 ended
SW20 —
43409D — Joint Sub-assy, Rear Drive Shaft Cross Groove
43409-17010 Joint Sub-assy, Rear Drive Shaft Cross Groove
1990-01 → 1992-01 ended
SW20 —
43409-17010 Joint Sub-assy, Rear Drive Shaft Cross Groove
1992-01 → 1993-11 ended
SW20 —
43409-17010 Joint Sub-assy, Rear Drive Shaft Cross Groove
1993-11 → 1995-06 ended
SW20 —
43446 — Cover, Rear Axle Inboard Joint
43446-17010 Cover, Rear Axle Inboard Joint
1990-01 → 1992-01 ended
SW20 —
43446-17010 Cover, Rear Axle Inboard Joint
1992-01 → 1993-11 ended
SW20 —
43446-17010 Cover, Rear Axle Inboard Joint
1993-11 → 1995-06 ended
SW20 —
43457C — Bracket, Drive Shaft Bearing
43457-17010 Bracket, Drive Shaft Bearing
1990-01 → 1995-06 ended
SW20 —
43458A — Cover, Rear Drive Shaft Dust
43458-12010 Cover, Rear Drive Shaft Dust
1990-01 → 1995-06 ended
SW20 —
43459 — Gasket, Rear Axle Inboard Joint End Cover
43459-17010 Gasket, Rear Axle Inboard Joint End Cover
1990-01 → 1992-01 ended
SW20 —
43459-17010 Gasket, Rear Axle Inboard Joint End Cover
1992-01 → 1993-11 ended
SW20 —
43459-17010 Gasket, Rear Axle Inboard Joint End Cover
1993-11 → 1995-06 ended
SW20 —
43489 — Washer, Rear Drive Shaft Cross Groove Joint
43489-17010 Washer, Rear Drive Shaft Cross Groove Joint
1990-01 → 1993-11 ended
SW20 —
43489-17010 Washer, Rear Drive Shaft Cross Groove Joint
1993-11 → 1995-06 ended
SW20 —
43496B — Stay, Rear Drive Shaft Bearing Bracket, NO.1
43496-17010 Stay, Rear Drive Shaft Bearing Bracket, NO.1
1990-01 → 1995-06 ended
SW20 —
43496D — Stay, Rear Drive Shaft Bearing Bracket, NO.2
43496-17020 Stay, Rear Drive Shaft Bearing Bracket, NO.2
1990-01 → 1993-11 ended
SW20 —
43496-17030 Stay, Rear Drive Shaft Bearing Bracket, NO.2
1993-11 → 1995-06 ended
SW20 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
