Toyota MR2

1990-01 → 1995-06 · chassis SW20,21 · catalogue 211420 · United States

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

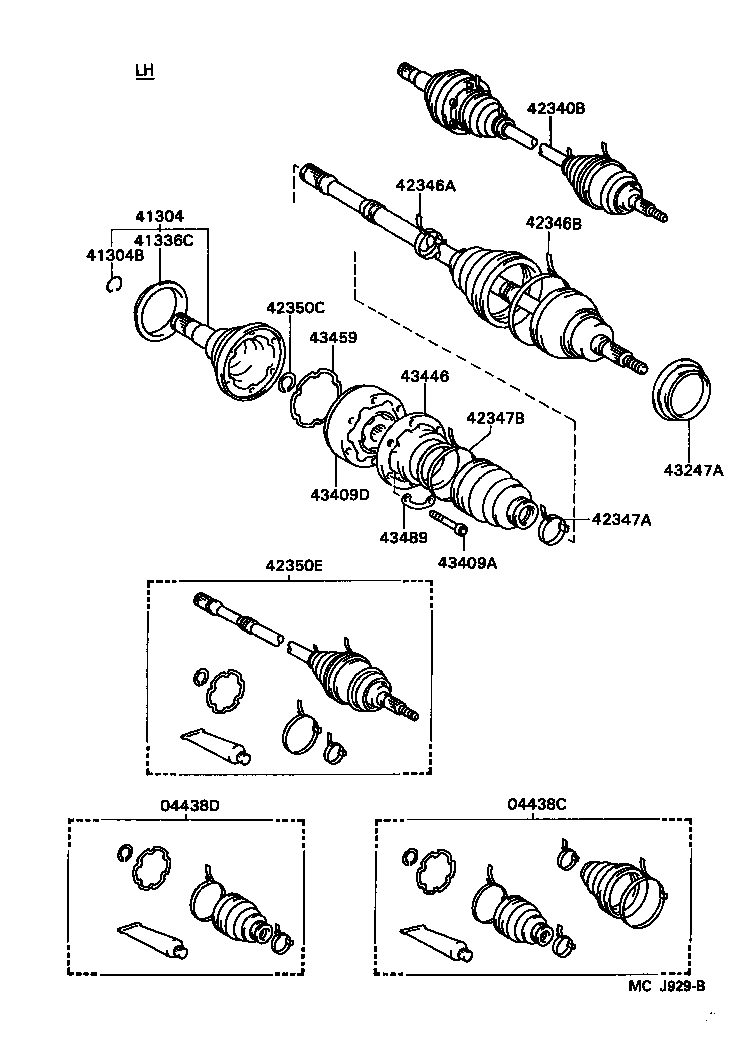

Exploded illustration MCJ929B 42340B — SHAFT ASSY, REAR DRIVE, LH (10 parts) 42346A — CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) (2 parts) 41304 — SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR (2 parts) 42346B — CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT) (4 parts) 41336C — COVER, DUST(FOR REAR DRIVE SHAFT) (4 parts) 41304B — RING, HOLE SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) (1 parts) 42350C — RING, SNAP (FOR REAR DRIVE SHAFT OUTBOARD JOINT) (4 parts) 43459 — GASKET, REAR AXLE INBOARD JOINT END COVER (3 parts) 43446 — COVER, REAR AXLE INBOARD JOINT (3 parts) 42347B — CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) (6 parts) 43247A — DEFLECTOR, REAR WHEEL BEARING DUST, NO.2 (3 parts) 43409D — JOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE (3 parts) 42347A — CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) (2 parts) 43489 — WASHER, REAR DRIVE SHAFT CROSS GROOVE JOINT (2 parts) 43409A — BOLT (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT) (2 parts) 42350E — JOINT ASSY, REAR DRIVE SHAFT OUTBOARD, LH (8 parts) 04438C — BOOT KIT, REAR DRIVE SHAFT (4 parts) 04438D — BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT (4 parts)
MCJ929B · 18 callouts Full size ↗
67 parts on this figure
Part number Description Fitment Price
04438C — Boot Kit, Rear Drive Shaft
04437-17040 Boot Kit, Rear Drive Shaft
1990-01 → 1993-11 ended
SW20 —
04437-17040 Boot Kit, Rear Drive Shaft
1993-11 → 1995-06 ended
SW20 —
04438-20070 Boot Kit, Rear Drive Shaft
1990-01 → 1992-01 ended
SW21 —
04438-20070 Boot Kit, Rear Drive Shaft
1992-01 → 1995-06 ended
SW21 —
04438D — Boot Kit, Rear Drive Shaft Inboard Joint
04437-17030 Boot Kit, Rear Drive Shaft Inboard Joint
1990-01 → 1993-11 ended
SW20 —
04437-17030 Boot Kit, Rear Drive Shaft Inboard Joint
1993-11 → 1995-06 ended
SW20 —
04438-20060 Boot Kit, Rear Drive Shaft Inboard Joint
1990-01 → 1992-01 ended
SW21 —
04438-20060 Boot Kit, Rear Drive Shaft Inboard Joint
1992-01 → 1995-06 ended
SW21 —
41304 — Shaft Sub-assy, Differential Side Gear
41309-17030 Shaft Sub-assy, Differential Side Gear
1990-01 → 1995-06 ended
SW20 —
41309-17040 note Shaft Sub-assy, Differential Side Gear
1992-01 → 1995-06 ended
SW20 —
41304B — Ring, Hole Snap (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
90521-33002 Ring, Hole Snap (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
1990-01 → 1995-06 ended
SW20 —
41336C — Cover, Dust(FOR REAR DRIVE SHAFT)
41336-12020 note Cover, Dust(FOR REAR DRIVE SHAFT)
1990-01 → 1995-06 ended
SW20 —
41336-17020 note Cover, Dust(FOR REAR DRIVE SHAFT)
1990-01 → 1995-06 ended
SW20 —
41336-32010 note Cover, Dust(FOR REAR DRIVE SHAFT)
1990-01 → 1995-06 ended
SW21 —
41336-32020 note Cover, Dust(FOR REAR DRIVE SHAFT)
1990-01 → 1995-06 ended
SW21 —
42340B — Shaft Assy, Rear Drive, LH
42340-17070 Shaft Assy, Rear Drive, LH
1990-01 → 1991-01 ended
SW21 —
42340-17071 Shaft Assy, Rear Drive, LH
1991-01 → 1995-06 ended
SW21 —
42340-17080 note Shaft Assy, Rear Drive, LH
1990-01 → 1991-01 ended
SW21 —
42340-17081 note Shaft Assy, Rear Drive, LH
1991-01 → 1995-06 ended
SW21 —
42340-17090 Shaft Assy, Rear Drive, LH
1990-01 → 1991-01 ended
SW20 —
42340-17091 Shaft Assy, Rear Drive, LH
1991-01 → 1995-06 ended
SW20 —
42340-17100 note Shaft Assy, Rear Drive, LH
1990-01 → 1991-01 ended
SW20 —
42340-17101 note Shaft Assy, Rear Drive, LH
1991-01 → 1995-06 ended
SW20 —
42340-17110 note Shaft Assy, Rear Drive, LH
1992-01 → 1995-06 ended
SW20 —
42340-17120 note Shaft Assy, Rear Drive, LH
1992-01 → 1995-06 ended
SW20 —
42346A — Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
42345-14010 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
1990-01 → 1995-06 ended
SW20 —
90949-01559 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
1990-01 → 1995-06 ended
SW21 —
42346B — Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
42345-16060 Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
1993-07 → 1995-06 ended
SW21 —
42345-16070 Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
1993-07 → 1995-06 ended
SW20 —
90949-01339 Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
1990-01 → 1993-07 ended
SW20 —
90949-01473 Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
1990-01 → 1993-07 ended
SW21 —
42347A — Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42345-14010 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
1990-01 → 1995-06 ended
SW20 —
90949-01559 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
1990-01 → 1995-06 ended
SW21 —
42347B — Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42345-16090 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
1993-07 → 1995-06 ended
SW21 —
42345-16100 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
1993-11 → 1995-06 ended
SW20 —
42345-16100 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
1993-07 → 1993-11 ended
SW20 —
42345-30010 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
1990-01 → 1993-07 ended
SW21 —
90949-01340 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
1990-01 → 1992-01 ended
SW20 —
90949-01340 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
1992-01 → 1993-07 ended
SW20 —
42350C — Ring, Snap (FOR REAR DRIVE SHAFT OUTBOARD JOINT)
90520-26028 Ring, Snap (FOR REAR DRIVE SHAFT OUTBOARD JOINT)
1990-01 → 1992-01 ended
SW20 —
90520-26028 Ring, Snap (FOR REAR DRIVE SHAFT OUTBOARD JOINT)
1992-01 → 1993-11 ended
SW20 —
90520-26028 Ring, Snap (FOR REAR DRIVE SHAFT OUTBOARD JOINT)
1993-11 → 1995-06 ended
SW20 —
90520-26048 Ring, Snap (FOR REAR DRIVE SHAFT OUTBOARD JOINT)
1990-01 → 1995-06 ended
SW21 —
42350E — Joint Assy, Rear Drive Shaft Outboard, LH
43470-19335 Joint Assy, Rear Drive Shaft Outboard, LH
1990-01 → 1991-01 ended
SW21 —
43470-19336 Joint Assy, Rear Drive Shaft Outboard, LH
1991-01 → 1995-06 ended
SW21 —
43470-19345 note Joint Assy, Rear Drive Shaft Outboard, LH
1990-01 → 1991-01 ended
SW21 —
43470-19346 note Joint Assy, Rear Drive Shaft Outboard, LH
1991-01 → 1995-06 ended
SW21 —
43470-19355 Joint Assy, Rear Drive Shaft Outboard, LH
1990-01 → 1991-01 ended
SW20 —
43470-19356 Joint Assy, Rear Drive Shaft Outboard, LH
1991-01 → 1995-06 ended
SW20 —
43470-19365 note Joint Assy, Rear Drive Shaft Outboard, LH
1990-01 → 1991-01 ended
SW20 —
43470-19366 note Joint Assy, Rear Drive Shaft Outboard, LH
1991-01 → 1995-06 ended
SW20 —
43247A — Deflector, Rear Wheel Bearing Dust, NO.2
43247-12010 note Deflector, Rear Wheel Bearing Dust, NO.2
1990-01 → 1995-06 ended
SW2# —
43247-32011 Deflector, Rear Wheel Bearing Dust, NO.2
1990-01 → 1991-06 ended
SW2# —
43247-33010 Deflector, Rear Wheel Bearing Dust, NO.2
1991-06 → 1995-06 ended
SW2# —
43409A — Bolt (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)
90110-10007 Bolt (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)
1990-01 → 1993-11 ended
SW20 —
90110-10007 Bolt (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)
1993-11 → 1995-06 ended
SW20 —
43409D — Joint Sub-assy, Rear Drive Shaft Cross Groove
43409-17010 Joint Sub-assy, Rear Drive Shaft Cross Groove
1990-01 → 1992-01 ended
SW20 —
43409-17010 Joint Sub-assy, Rear Drive Shaft Cross Groove
1992-01 → 1993-11 ended
SW20 —
43409-17010 Joint Sub-assy, Rear Drive Shaft Cross Groove
1993-11 → 1995-06 ended
SW20 —
43446 — Cover, Rear Axle Inboard Joint
43446-17010 Cover, Rear Axle Inboard Joint
1990-01 → 1992-01 ended
SW20 —
43446-17010 Cover, Rear Axle Inboard Joint
1992-01 → 1993-11 ended
SW20 —
43446-17010 Cover, Rear Axle Inboard Joint
1993-11 → 1995-06 ended
SW20 —
43459 — Gasket, Rear Axle Inboard Joint End Cover
43459-17010 Gasket, Rear Axle Inboard Joint End Cover
1990-01 → 1992-01 ended
SW20 —
43459-17010 Gasket, Rear Axle Inboard Joint End Cover
1992-01 → 1993-11 ended
SW20 —
43459-17010 Gasket, Rear Axle Inboard Joint End Cover
1993-11 → 1995-06 ended
SW20 —
43489 — Washer, Rear Drive Shaft Cross Groove Joint
43489-17010 Washer, Rear Drive Shaft Cross Groove Joint
1990-01 → 1993-11 ended
SW20 —
43489-17010 Washer, Rear Drive Shaft Cross Groove Joint
1993-11 → 1995-06 ended
SW20 —
