Toyota MR2
1990-01 → 1995-06 · chassis SW20,21 · catalogue 211420 · United States
Discontinued model
Data version 1996-11

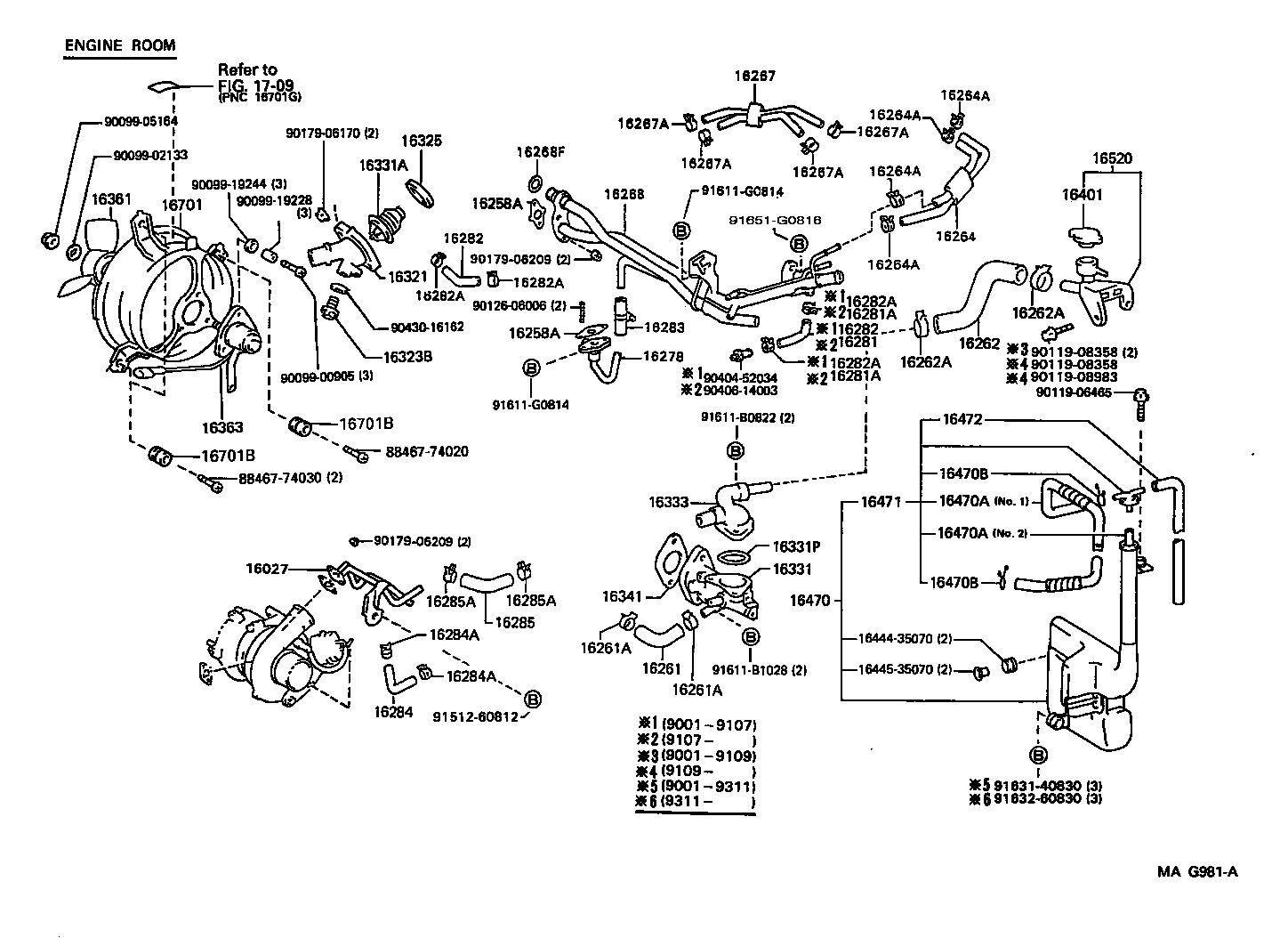

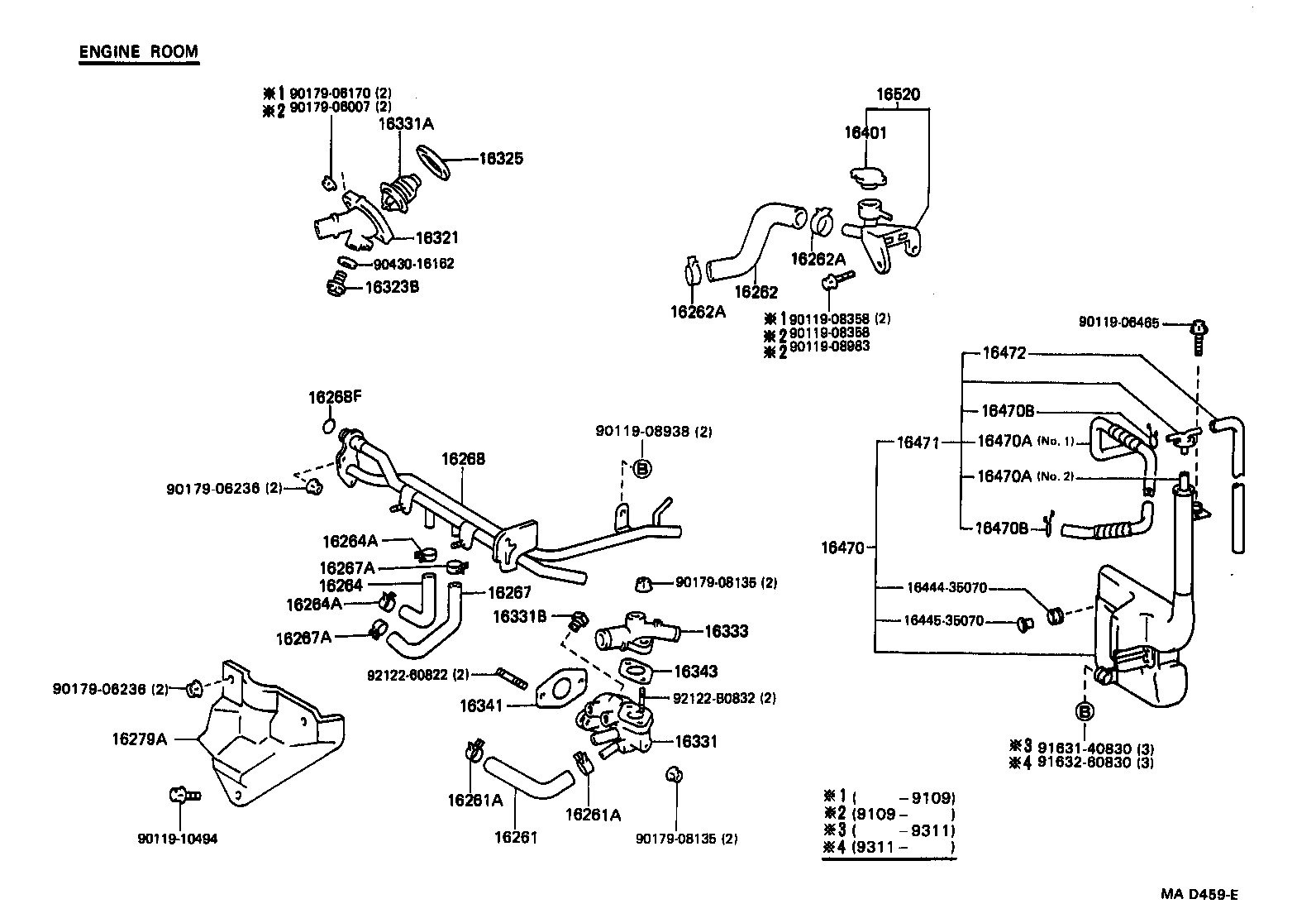

Radiator & Water Outlet
71 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16027 | Pipe Sub-assy, Turbo Water, NO.1 |
| 16258A | Gasket(FOR HEATER RETURN) |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16262 | Hose, Water Inlet |
| 16262A | Clip(FOR WATER INLET HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268F | Ring, O(FOR WATER BY-PASS PIPE) |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16279A | Protector, Hose Heat |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16282 | Hose, Water By-pass, NO.5 |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16283 | Hose, Water By-pass, NO.6 |
| 16284 | Hose, Turbo Water, NO.1 |
| 16284A | Clip(FOR TURBO WATER HOSE NO.1) |
| 16285 | Hose, Turbo Water, NO.2 |
| 16285A | Clip(FOR TURBO WATER HOSE NO.2) |
| 16321 | Inlet, Water |
| 16323B | Plug(FOR WATER INLET HOUSING) |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16331B | Plug(FOR WATER OUTLET) |
| 16331P | Ring,O(FOR WATER OUTLET) |
| 16333 | Housing, Water Outlet |
| 16341 | Gasket, Water Outlet |
| 16343 | Gasket, Water Outlet Housing |
| 16361 | Fan |
| 16363 | Motor, Cooling Fan |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16470 | Tank Assy, Radiator Reserve |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470B | Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16472 | Hose, Breather |
| 16520 | Filler Assy, Water |
| 16533 | Support, Radiator, Upper |
| 16535 | Support, Radiator, Lower |
| 16537 | Support, Radiator Pipe, NO.1 |
| 16538 | Support, Radiator Pipe, NO.2 |
| 16558B | Hose, Radiator, NO.7 |
| 16558C | Clip, Radiator Hose, NO.7 |
| 16559 | Pipe, Radiator, NO.4 |
| 16569 | Pipe, Radiator, NO.5 |
| 16571 | Hose, Radiator, Inlet |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16572 | Hose, Radiator, Outlet |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16573B | Hose, Radiator, NO.3 |
| 16573C | Clamp OR Clip, Radiator Hose, NO.3 |
| 16574 | Hose, Radiator, NO.4 |
| 16574A | Clip, Radiator Hose, NO.4 |
| 16575 | Hose, Radiator, NO.5 |
| 16575A | Clip, Radiator Hose, NO.5 |
| 16576 | Hose, Radiator, NO.6 |
| 16576A | Clip, Radiator Hose, NO.6 |
| 16577 | Pipe, Radiator, NO.7 |
| 16578 | Pipe, Radiator, NO.2 |
| 16579 | Pipe, Radiator, NO.3 |
| 16701 | Shroud Sub-assy, Fan |
| 16701B | Cushion, Fan Shroud |
| 16712 | Shroud, Fan, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
