Toyota MR2

1990-01 → 1995-06 · chassis SW20,21 · catalogue 211420 · United States

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Distributor

12 part groups · 4 illustrations

Illustrations

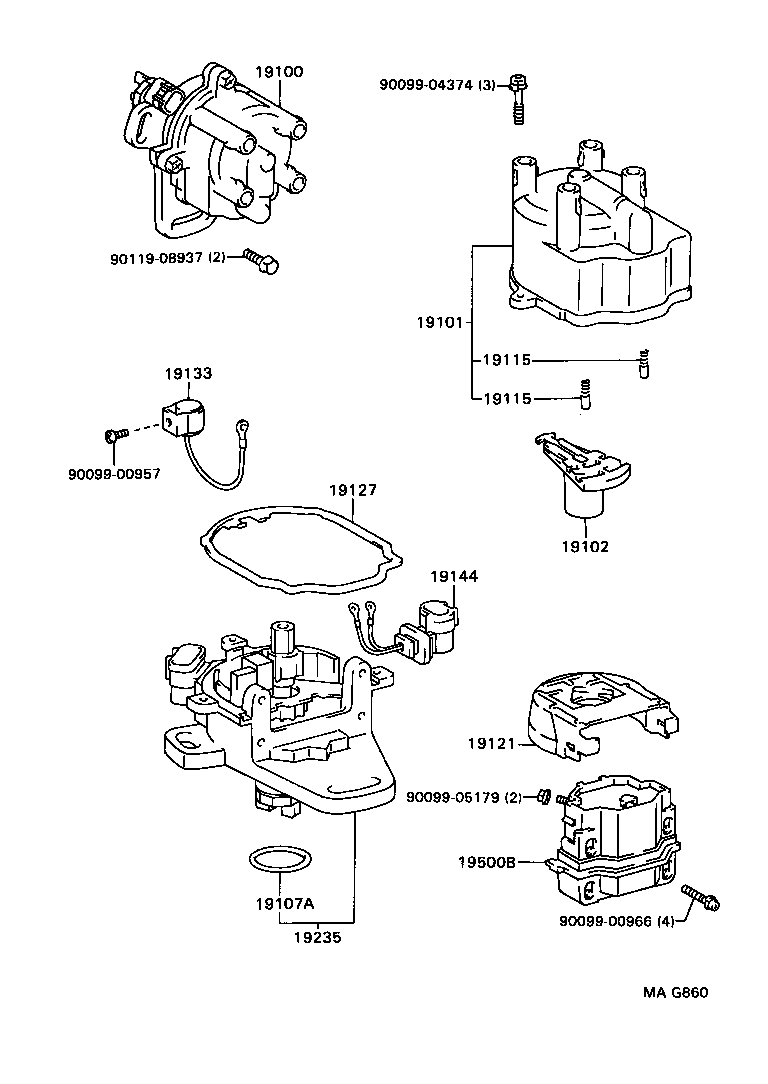

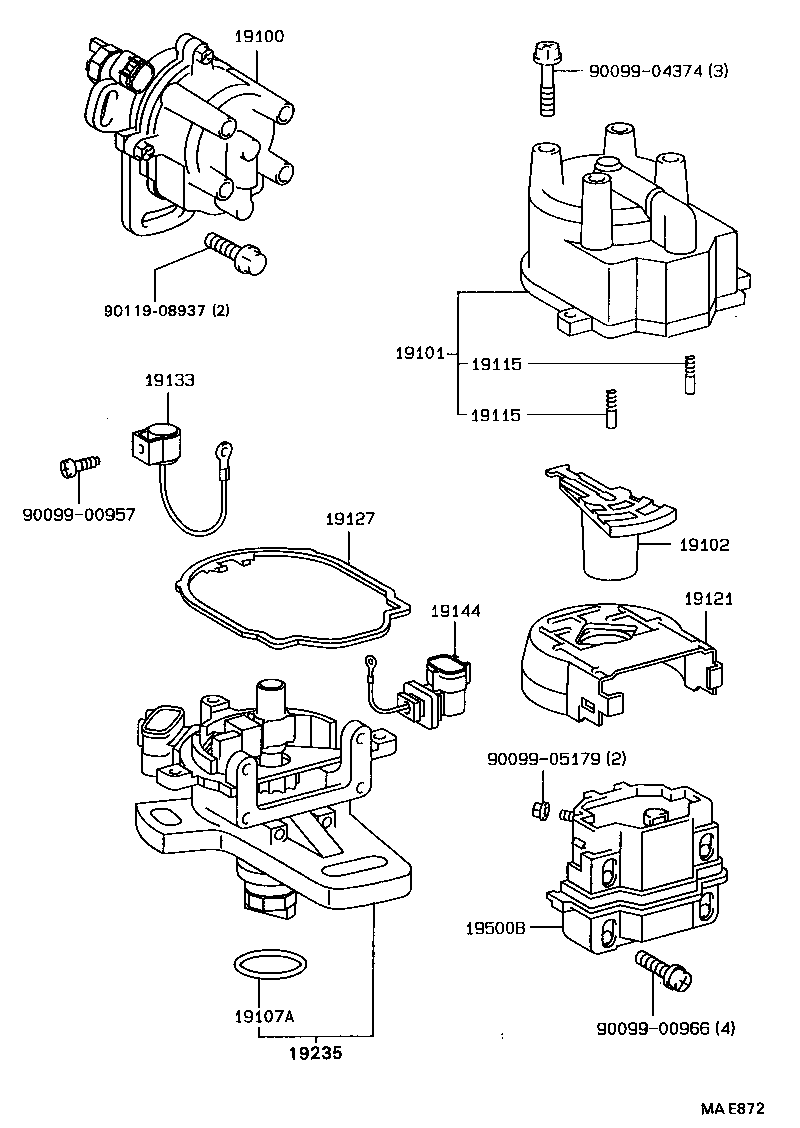

Figure MAD360B MAD360B 1990-01 → 1992-01 Figure MAE872 MAE872 1992-01 → 1993-09 Figure MAG860 MAG860 1993-09 → — Figure MAF067A MAF067A 1990-01 → —

Part groups

PNCDescription
19100 Distributor Assy
19101 Cap Sub-assy, Distributor
19102 Rotor Sub-assy, Distributor
19107A Ring, O, Distributor Housing
19115 Piece, Distributor Cap, Center
19121 Cover, Dust Proof
19127 Packing, Dust Proof
19133 Condenser, Distributor
19144 Lead, Distributor Breaker
19225 Cap, Rubber
19235 Housing, Distributor
19500B Coil Assy, Ignition
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
