Toyota MR2
1990-01 → 1995-06 · chassis SW20,21 · catalogue 211420 · United States
Discontinued model
Data version 1996-11

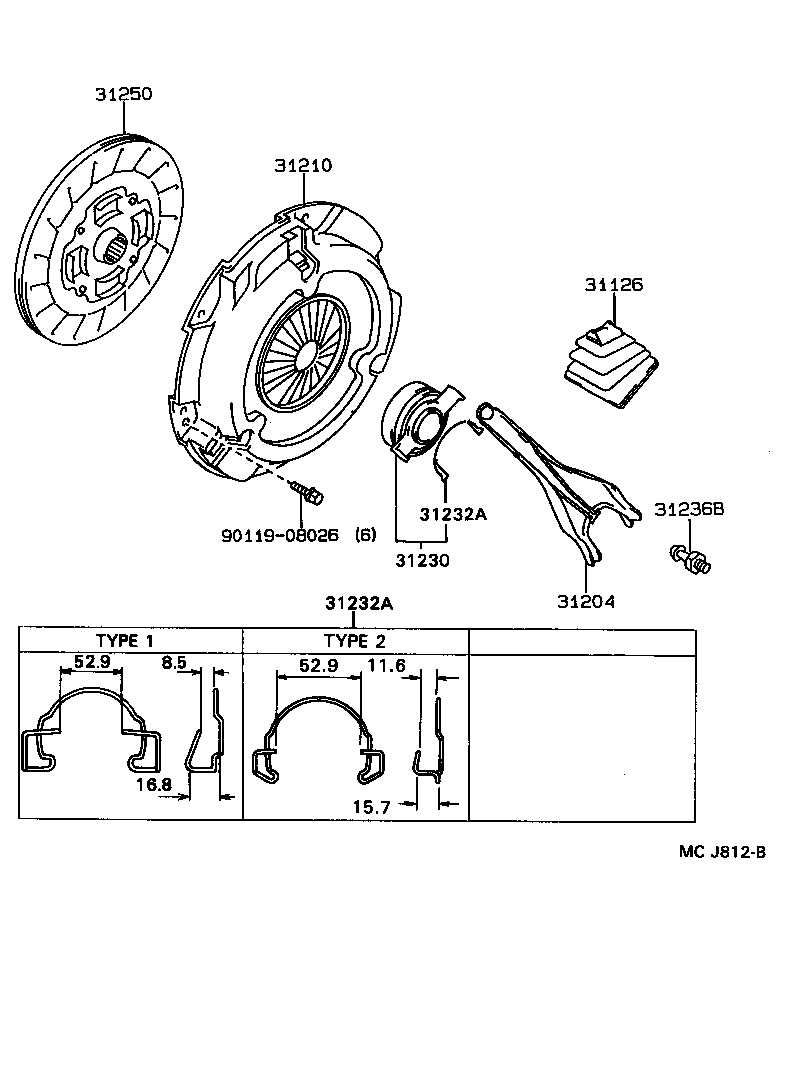

Clutch & Release Fork
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31126 | Boot, Clutch Release Fork |
| 31204 | Fork Sub-assy, Clutch Release |
| 31210 | Cover Assy, Clutch |
| 31230 | Bearing Assy, Clutch Release |
| 31232A | Clip, Release Bearing Hub |
| 31236B | Support, Release Fork |
| 31250 | Disc Assy, Clutch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
