Toyota MR2

1990-01 → 1995-06 · chassis SW20,21 · catalogue 211420 · United States

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

31 part groups · 12 illustrations

Illustrations

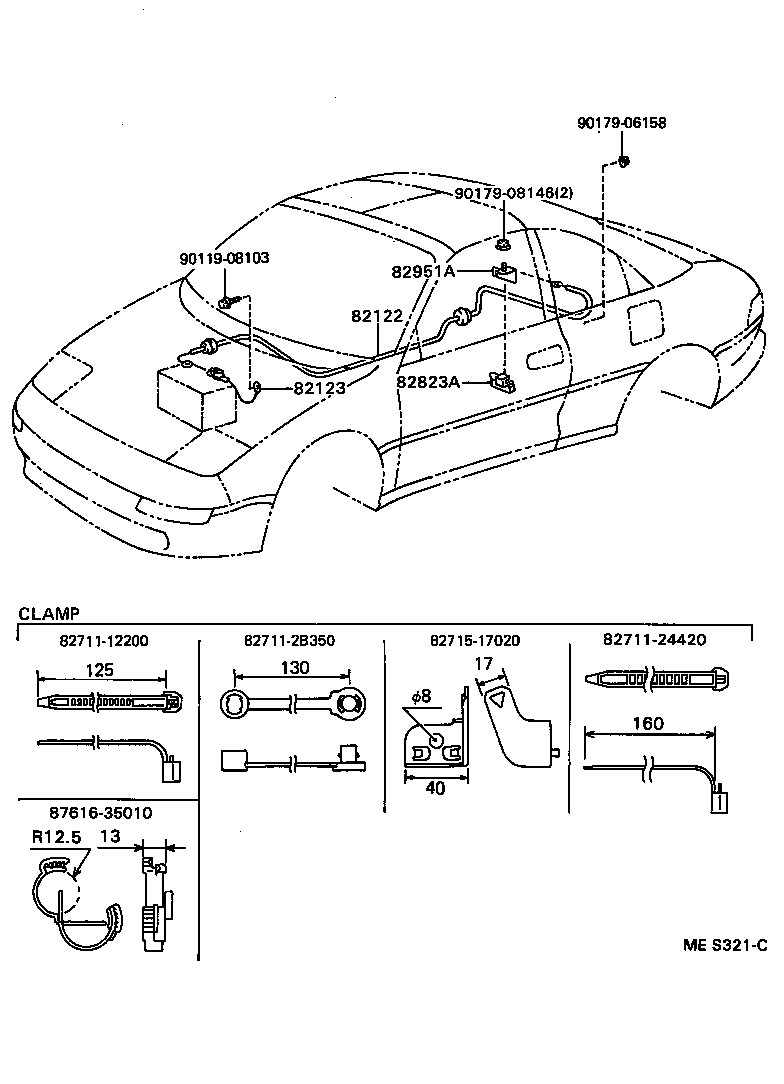

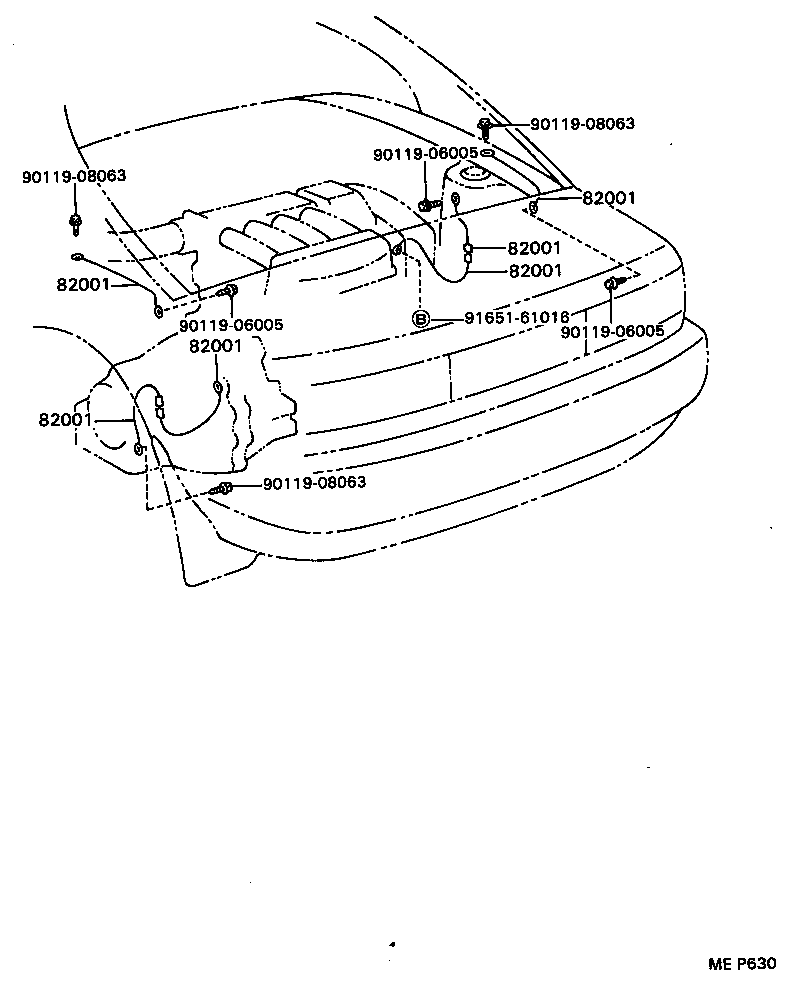

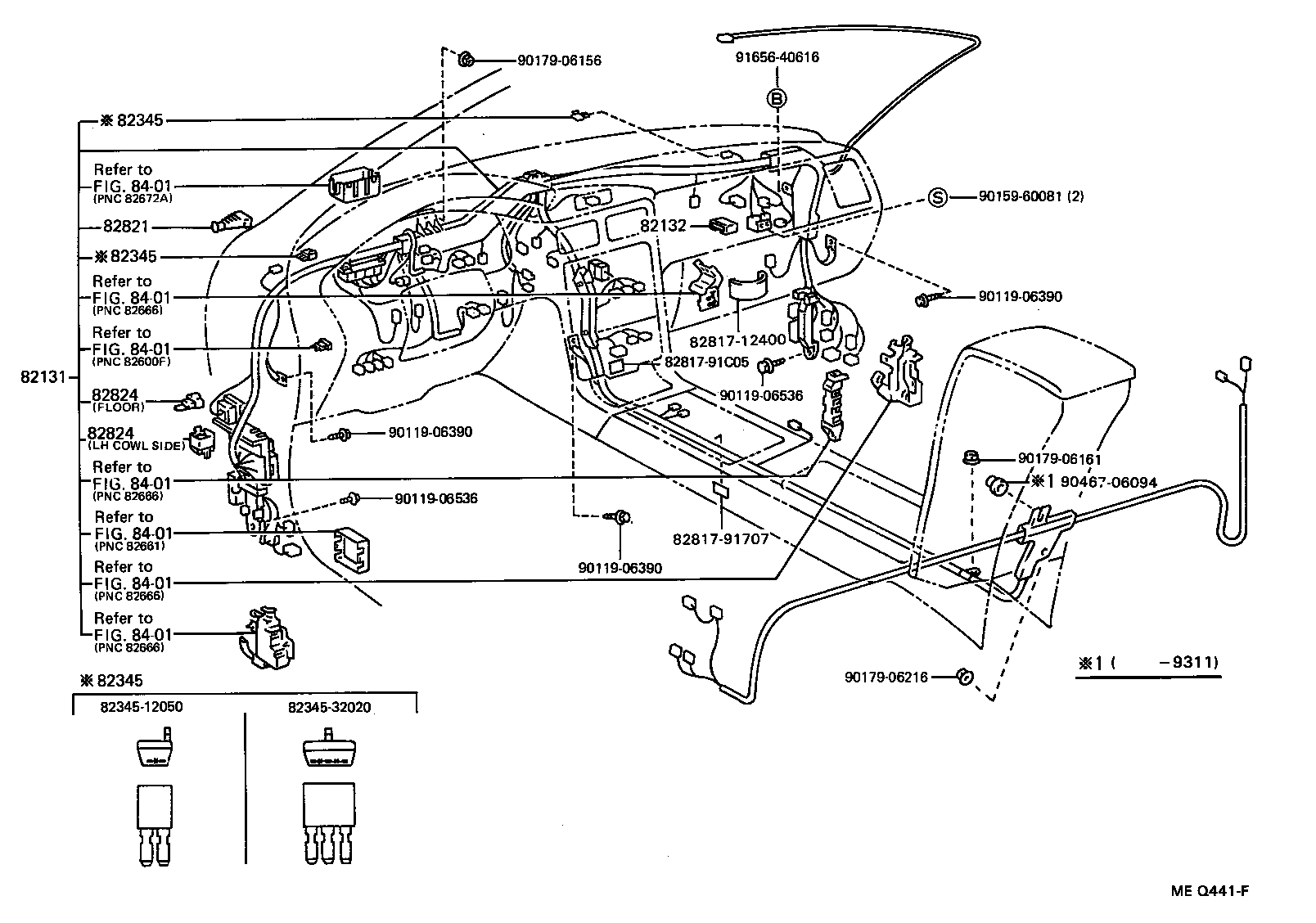

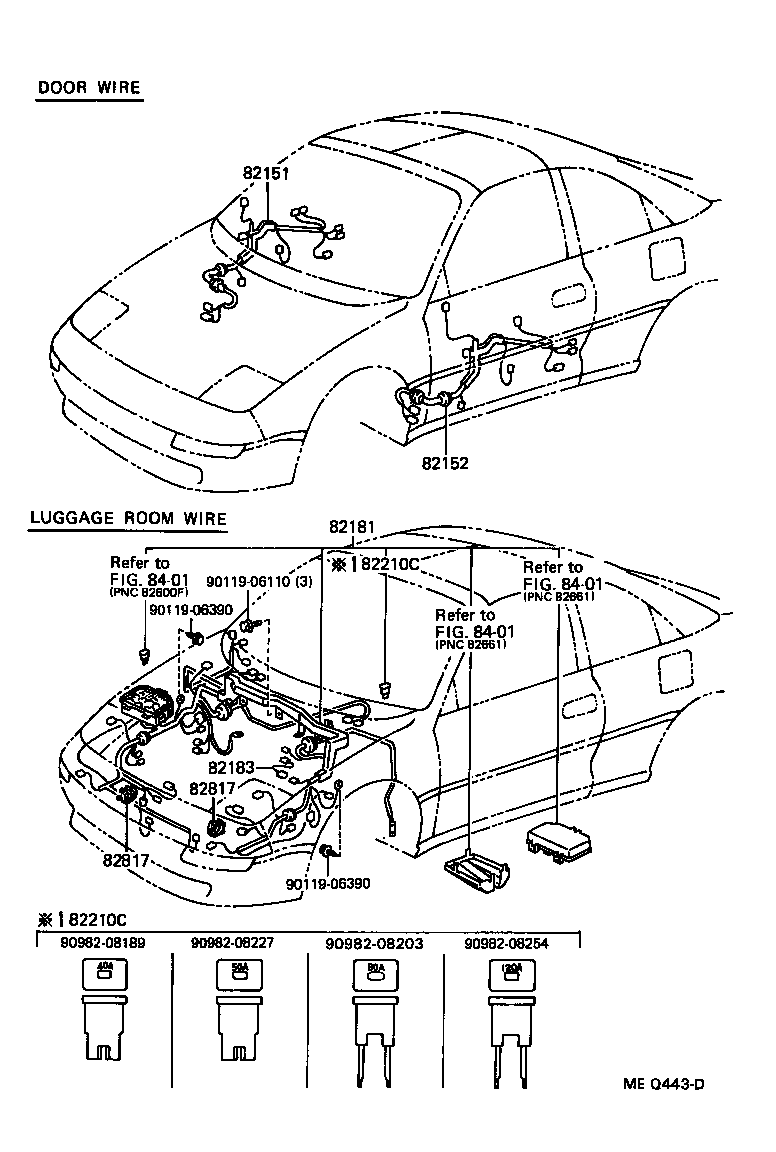

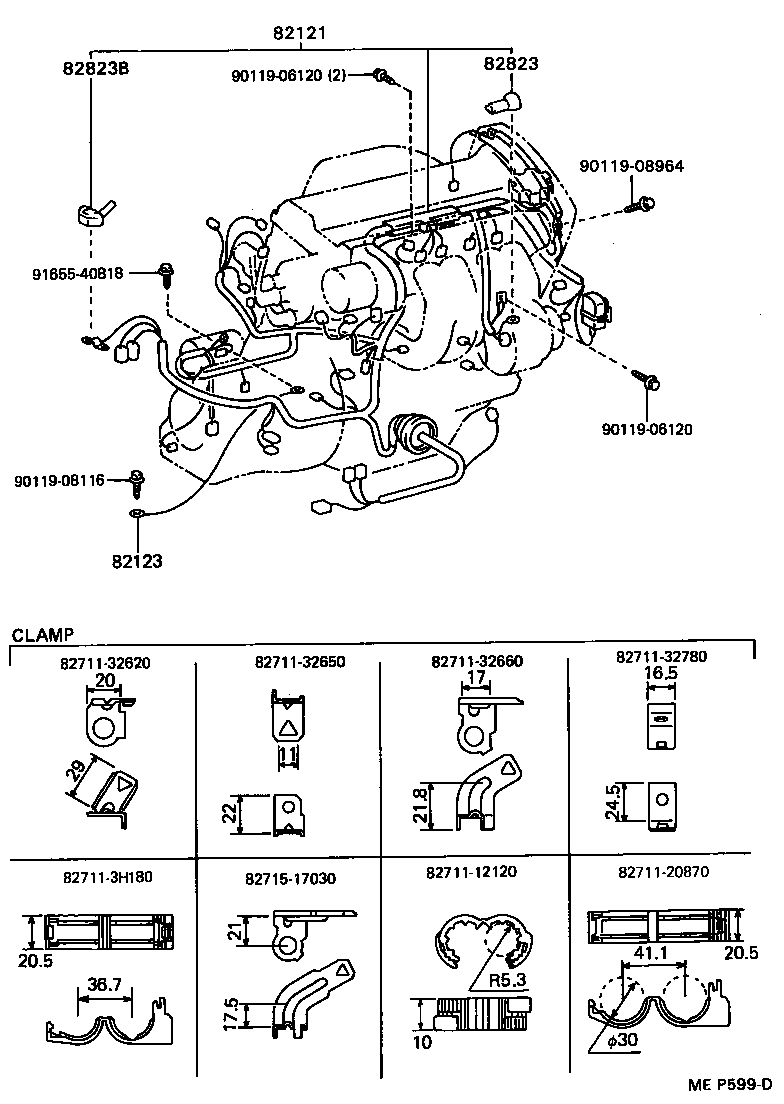

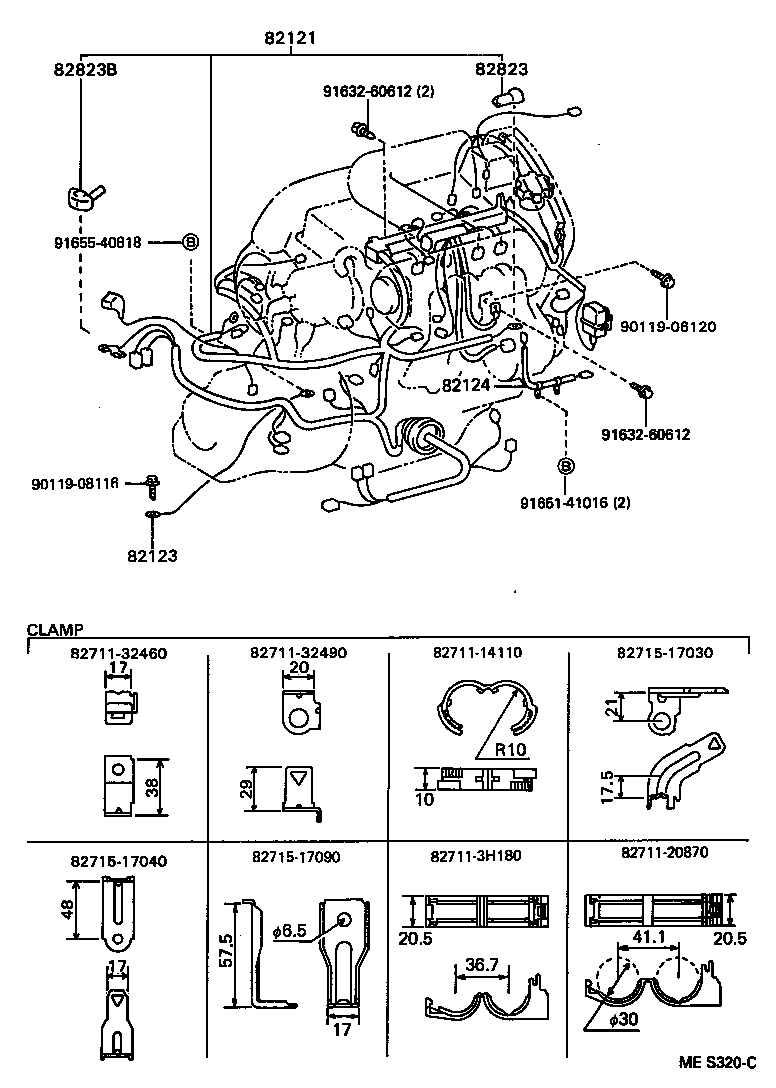

Figure MES925 MES925 1990-01 → — Figure MEP599D MEP599D 1990-01 → — Figure MES926A MES926A 1990-01 → — Figure MES320C MES320C 1990-01 → — Figure MEQ935B MEQ935B 1990-01 → — Figure MES321C MES321C 1990-01 → — Figure MEQ441F MEQ441F 1990-01 → — Figure MEQ443D MEQ443D 1990-01 → — Figure MEQ936 MEQ936 1990-01 → — Figure MEP626A MEP626A 1990-01 → — Figure MEP630 MEP630 1990-01 → — Figure MEP629A MEP629A 1990-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82171 Wire, Roof, NO.1
82173 Wire, Roof, NO.3
82181 Wire, Luggage Room, NO.1
82183 Wire, Luggage Room, NO.3
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82345 Diode
82817 Protector, Wiring Harness, NO.1
82821 Retainer, Headlamp Harness
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2
82823B Cap, Terminal, NO.3
82824 Connector, Wiring Harness
82951A Bracket, Terminal

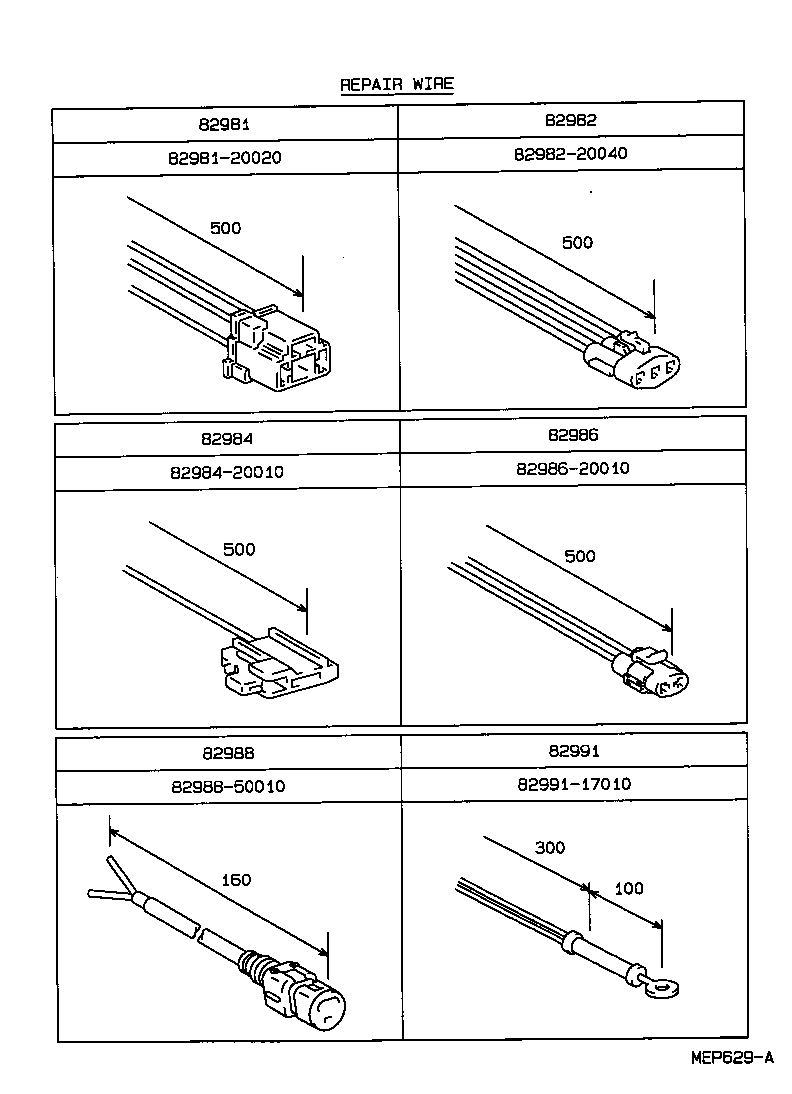

82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82984 Wire, Horn Repair
82986 Wire, Side Marker Lamp Repair
82988 Wire, Airbag Repair
82991 Wire, Fusible Link Repair
