Heating & Air Conditioning - Heater Unit & Blower

9 part groups · 2 illustrations

Illustrations

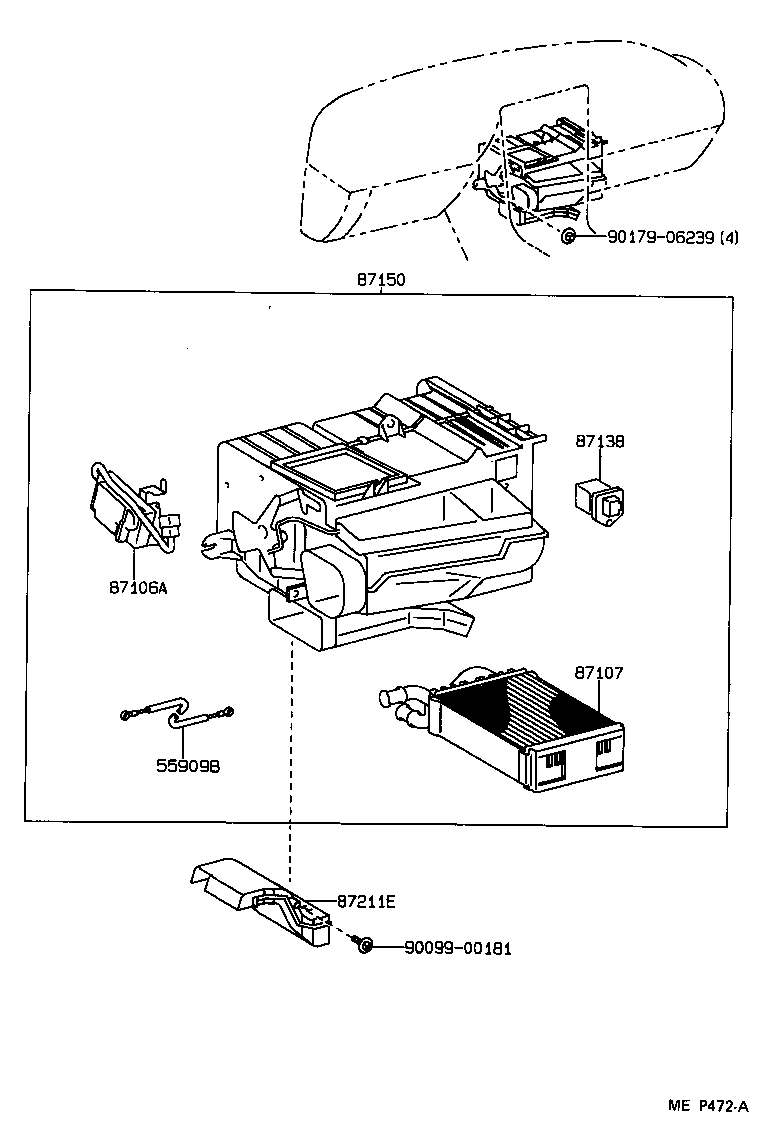

Figure MEP469A MEP469A 1990-01 → — Figure MEP472A MEP472A 1990-01 → —

Part groups

PNCDescription
55909B Cable Sub-assy, Airmix Damper Control
87103 Motor Sub-assy, Heater Blower, W/Fan
87106A Servo Sub-assy, Damper
87106C Servo Sub-assy, Damper(FOR BLOWER)
87107 Unit Sub-assy, Heater Radiator
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87211E Duct, Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
