Toyota MR2

1999-12 → 2005-01 · chassis ZZW30 · catalogue 211430 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

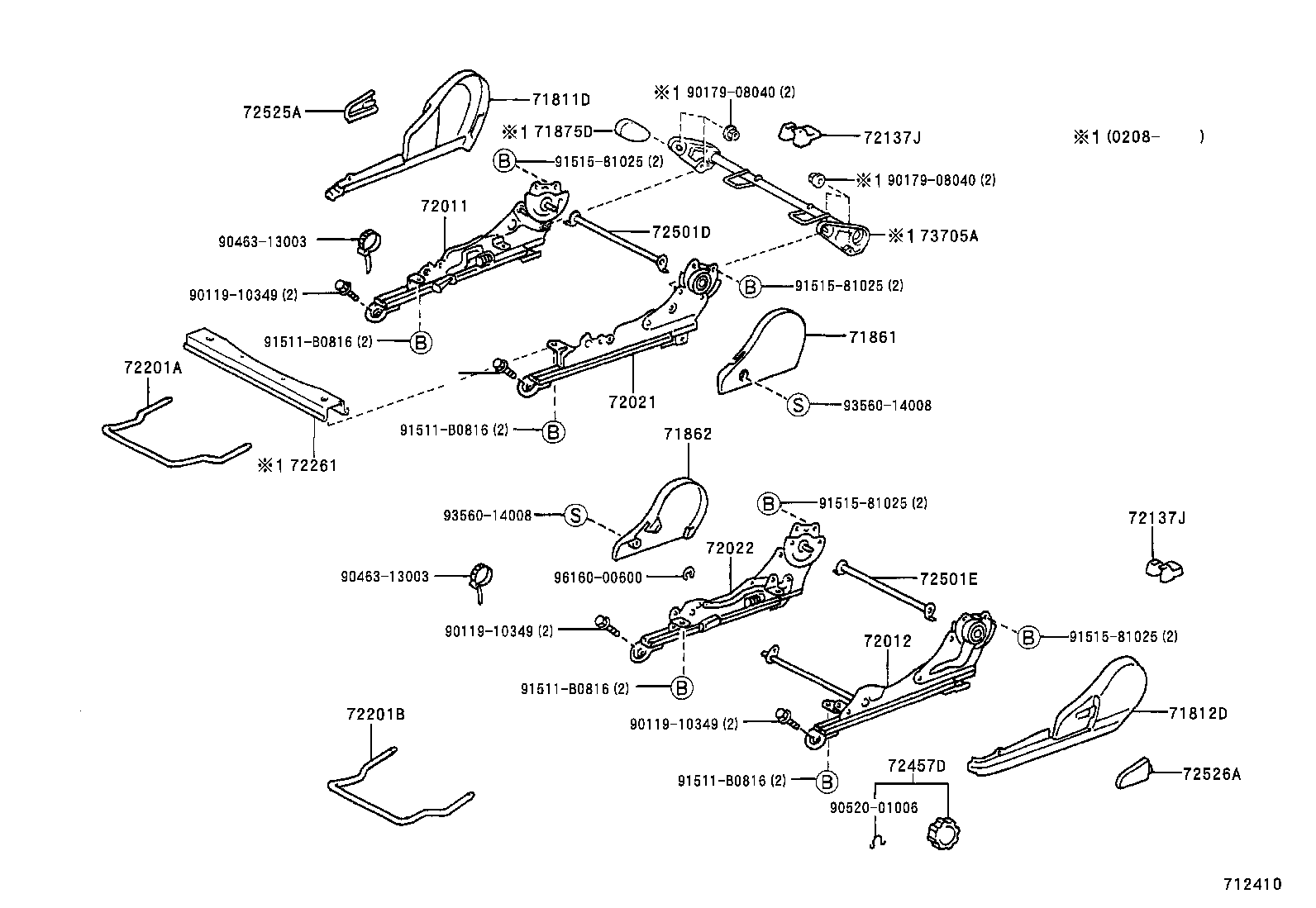

Exploded illustration 712410 9017908040 — not listed in this catalogue 71811D — SHIELD, FRONT SEAT CUSHION, RH (3 parts) 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (3 parts) 71875D — COVER, RECLINING ADJUSTER OUTSIDE, RH (1 parts) 72137J — COVER, FRONT SEAT TRACK, RH REAR OUTER (2 parts) 9151581025 — not listed in this catalogue 9017908040 — not listed in this catalogue 72011 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH (2 parts) 72501D — PIPE SUB-ASSY, RECLINING CONNECTING, RH (2 parts) 73705A — BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH (1 parts) 9046313003 — not listed in this catalogue 9151581025 — not listed in this catalogue 9011910349 — not listed in this catalogue 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (3 parts) 91511B0816 — not listed in this catalogue 72201A — HANDLE SUB-ASSY, SEAT TRACK RH (2 parts) 72021 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH (2 parts) 9356014008 — not listed in this catalogue 91511B0816 — not listed in this catalogue 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (3 parts) 72261 — REINFORCEMENT, SEAT TRACK, RH (1 parts) 9151581025 — not listed in this catalogue 9356014008 — not listed in this catalogue 72137J — COVER, FRONT SEAT TRACK, RH REAR OUTER (2 parts) 72022 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH (2 parts) 9046313003 — not listed in this catalogue 9616000600 — not listed in this catalogue 72501E — PIPE SUB-ASSY, RECLINING CONNECTING, LH (2 parts) 9011910349 — not listed in this catalogue 9151581025 — not listed in this catalogue 72012 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH (2 parts) 91511B0816 — not listed in this catalogue 71812D — SHIELD, FRONT SEAT CUSHION, LH (3 parts) 72201B — HANDLE SUB-ASSY, SEAT TRACK LH (2 parts) 9011910349 — not listed in this catalogue 72457D — KNOB, VERTICAL SEAT ADJUSTER, LH (3 parts) 72526A — HANDLE, RECLINING ADJUSTER RELEASE, LH (3 parts) 91511B0816 — not listed in this catalogue 9052001006 — not listed in this catalogue
712410 · 20 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
71811D — Shield, Front Seat Cushion, RH
71811-20310-C0 note Shield, Front Seat Cushion, RH
2000-08 → 2002-08 ended
ZZW30 —
71811-20310-C0 note Shield, Front Seat Cushion, RH
1999-12 → 2000-08 ended
ZZW30 —
71811-20310-C0 note Shield, Front Seat Cushion, RH
2002-08 → 2005-01 ended
ZZW30 —
71812D — Shield, Front Seat Cushion, LH
71812-20280-C0 note Shield, Front Seat Cushion, LH
1999-12 → 2000-08 ended
ZZW30 —
71812-20280-C0 note Shield, Front Seat Cushion, LH
2000-08 → 2002-08 ended
ZZW30 —
71812-20280-C0 note Shield, Front Seat Cushion, LH
2002-08 → 2005-01 ended
ZZW30 —
71861 — Shield, Front Seat Cushion, Inner RH
71861-20140-C0 note Shield, Front Seat Cushion, Inner RH
1999-12 → 2000-08 ended
ZZW30 —
71861-20140-C0 note Shield, Front Seat Cushion, Inner RH
2000-08 → 2002-08 ended
ZZW30 —
71861-20140-C0 note Shield, Front Seat Cushion, Inner RH
2002-08 → 2005-01 ended
ZZW30 —
71862 — Shield, Front Seat Cushion, Inner LH
71862-20140-C0 note Shield, Front Seat Cushion, Inner LH
1999-12 → 2000-08 ended
ZZW30 —
71862-20140-C0 note Shield, Front Seat Cushion, Inner LH
2000-08 → 2002-08 ended
ZZW30 —
71862-20140-C0 note Shield, Front Seat Cushion, Inner LH
2002-08 → 2005-01 ended
ZZW30 —
71875D — Cover, Reclining Adjuster Outside, RH
71875-17020-C0 note Cover, Reclining Adjuster Outside, RH
2002-08 → 2005-01 ended
ZZW30 —
72011 — Adjuster Sub-assy, Front Seat, Outer RH
72011-17020 Adjuster Sub-assy, Front Seat, Outer RH
1999-12 → 2002-08 ended
ZZW30 —
72011-17030 Adjuster Sub-assy, Front Seat, Outer RH
2002-08 → 2005-01 ended
ZZW30 —
72012 — Adjuster Sub-assy, Front Seat, Outer LH
72012-17010 Adjuster Sub-assy, Front Seat, Outer LH
1999-12 → 2002-08 ended
ZZW30 —
72012-17010 Adjuster Sub-assy, Front Seat, Outer LH
2002-08 → 2005-01 ended
ZZW30 —
72021 — Adjuster Sub-assy, Front Seat, Inner RH
72021-17020 Adjuster Sub-assy, Front Seat, Inner RH
1999-12 → 2002-08 ended
ZZW30 —
72021-17030 Adjuster Sub-assy, Front Seat, Inner RH
2002-08 → 2005-01 ended
ZZW30 —
72022 — Adjuster Sub-assy, Front Seat, Inner LH
72022-17010 Adjuster Sub-assy, Front Seat, Inner LH
1999-12 → 2002-08 ended
ZZW30 —
72022-17010 Adjuster Sub-assy, Front Seat, Inner LH
2002-08 → 2005-01 ended
ZZW30 —
72137J — Cover, Front Seat Track, RH Rear Outer
72137-17010 Cover, Front Seat Track, RH Rear Outer
1999-12 → 2002-08 ended
ZZW30 —
72137-17010 Cover, Front Seat Track, RH Rear Outer
2002-08 → 2005-01 ended
ZZW30 —
72201A — Handle Sub-assy, Seat Track RH
72201-20130 Handle Sub-assy, Seat Track RH
1999-12 → 2002-08 ended
ZZW30 —
72201-20130 Handle Sub-assy, Seat Track RH
2002-08 → 2005-01 ended
ZZW30 —
72201B — Handle Sub-assy, Seat Track LH
72201-20130 Handle Sub-assy, Seat Track LH
1999-12 → 2002-08 ended
ZZW30 —
72201-20130 Handle Sub-assy, Seat Track LH
2002-08 → 2005-01 ended
ZZW30 —
72261 — Reinforcement, Seat Track, RH
72261-17010 Reinforcement, Seat Track, RH
2002-08 → 2005-01 ended
ZZW30 —
72457D — Knob, Vertical Seat Adjuster, LH
72592-20040-C0 note Knob, Vertical Seat Adjuster, LH
1999-12 → 2000-08 ended
ZZW30 —
72592-20040-C0 note Knob, Vertical Seat Adjuster, LH
2000-08 → 2002-08 ended
ZZW30 —
72592-20040-C0 note Knob, Vertical Seat Adjuster, LH
2002-08 → 2005-01 ended
ZZW30 —
72501D — Pipe Sub-assy, Reclining Connecting, RH
72345-47010 Pipe Sub-assy, Reclining Connecting, RH
1999-12 → 2002-08 ended
ZZW30 —
72345-47010 Pipe Sub-assy, Reclining Connecting, RH
2002-08 → 2005-01 ended
ZZW30 —
72501E — Pipe Sub-assy, Reclining Connecting, LH
72345-47010 Pipe Sub-assy, Reclining Connecting, LH
1999-12 → 2002-08 ended
ZZW30 —
72345-47010 Pipe Sub-assy, Reclining Connecting, LH
2002-08 → 2005-01 ended
ZZW30 —
72525A — Handle, Reclining Adjuster Release, RH
72525-16010-C0 note Handle, Reclining Adjuster Release, RH
1999-12 → 2000-08 ended
ZZW30 —
72525-16010-C0 note Handle, Reclining Adjuster Release, RH
2000-08 → 2002-08 ended
ZZW30 —
72525-16010-C0 note Handle, Reclining Adjuster Release, RH
2002-08 → 2005-01 ended
ZZW30 —
72526A — Handle, Reclining Adjuster Release, LH
72526-16010-C0 note Handle, Reclining Adjuster Release, LH
1999-12 → 2000-08 ended
ZZW30 —
72526-16010-C0 note Handle, Reclining Adjuster Release, LH
2000-08 → 2002-08 ended
ZZW30 —
72526-16010-C0 note Handle, Reclining Adjuster Release, LH
2002-08 → 2005-01 ended
ZZW30 —
73705A — Bracket Sub-assy, Child Restraint Seat Anchor, RH
73705-17010 Bracket Sub-assy, Child Restraint Seat Anchor, RH
2002-08 → 2005-01 ended
ZZW30 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
