Toyota MR2

1999-12 → 2005-01 · chassis ZZW30 · catalogue 211430 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

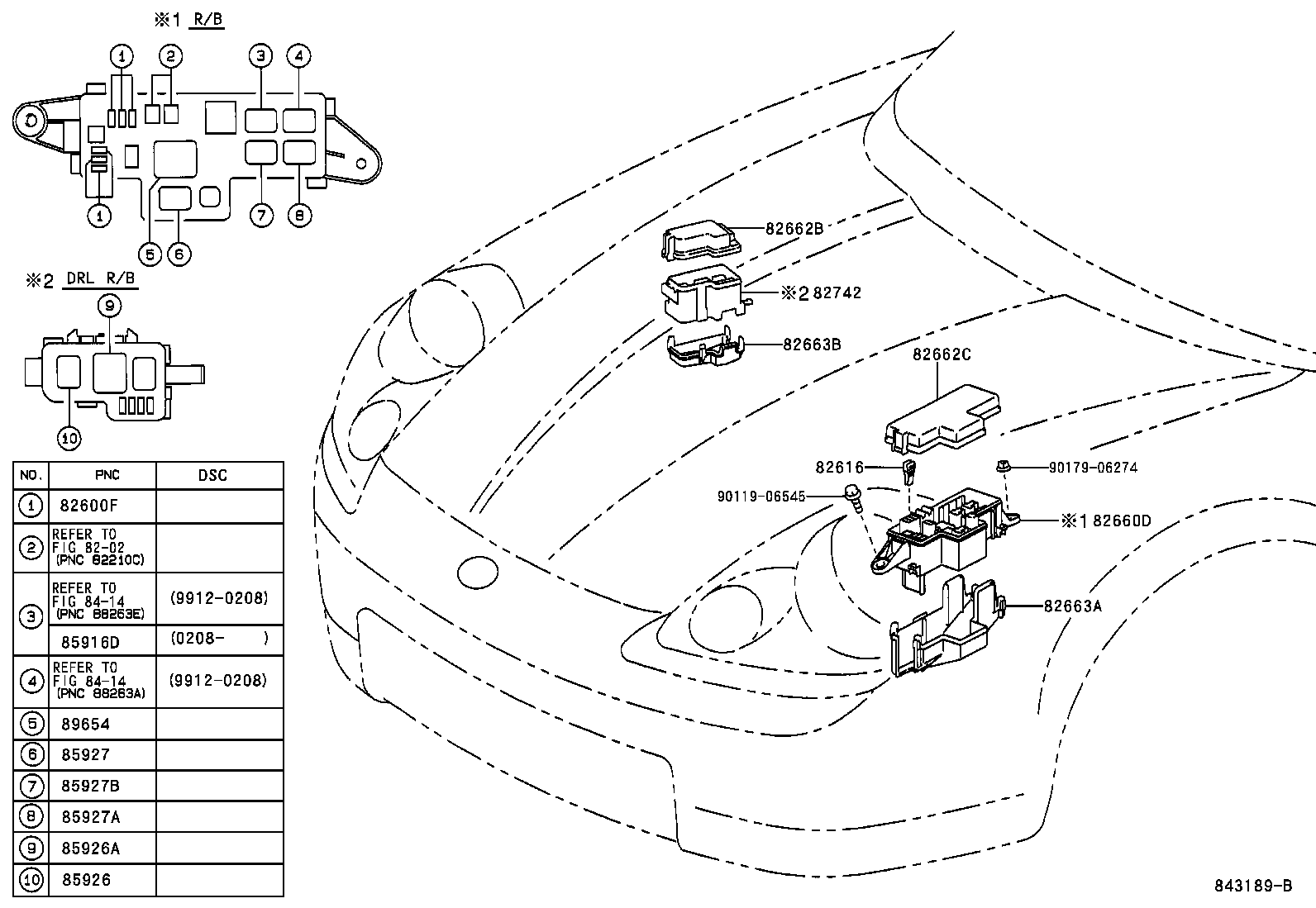

Exploded illustration 843189B 82662B — COVER, RELAY BLOCK, UPPER, NO.2 (2 parts) 82742 — BLOCK, ENGINE ROOM RELAY, NO.2 (1 parts) 82663B — COVER, RELAY BLOCK, LOWER, NO.3 (2 parts) 82662C — COVER, RELAY BLOCK, UPPER, NO.3 (2 parts) 82616 — PULLER, FUSE (2 parts) 9017906274 — not listed in this catalogue 9011906545 — not listed in this catalogue 82600F — FUSE, FUSE BLOCK (12 parts) 82660D — BLOCK ASSY, RELAY (2 parts) 8202 — not listed in this catalogue 8414 — not listed in this catalogue 82663A — COVER, RELAY BLOCK, LOWER, NO.2 (2 parts) 85916D — RELAY, FOG LAMP (1 parts) 8414 — not listed in this catalogue 89654 — RELAY, POWER STEERING (2 parts) 85927 — RELAY, COOLING FAN (2 parts) 85927B — RELAY, COOLING FAN, NO.3 (2 parts) 85927A — RELAY, COOLING FAN, NO.2 (2 parts) 85926A — RELAY, HEADLAMP DAY DIM LIGHT (2 parts) 85926 — RELAY, HEADLAMP DIMMER (2 parts)
843189B · 15 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
38 parts on this figure
Part number Description Fitment Price
82600F — Fuse, Fuse Block
90982-09008 note Fuse, Fuse Block
1999-12 → 2002-08 ended
ZZW30 —
90982-09009 note Fuse, Fuse Block
1999-12 → 2002-08 ended
ZZW30 —
90982-09010 note Fuse, Fuse Block
1999-12 → 2002-08 ended
ZZW30 —
90982-09011 note Fuse, Fuse Block
1999-12 → 2002-08 ended
ZZW30 —
90982-09012 note Fuse, Fuse Block
1999-12 → 2002-08 ended
ZZW30 —
90982-09013 note Fuse, Fuse Block
1999-12 → 2002-08 ended
ZZW30 —
90982-09008 note Fuse, Fuse Block
2002-08 → 2005-01 ended
ZZW30 —
90982-09009 note Fuse, Fuse Block
2002-08 → 2005-01 ended
ZZW30 —
90982-09010 note Fuse, Fuse Block
2002-08 → 2005-01 ended
ZZW30 —
90982-09011 note Fuse, Fuse Block
2002-08 → 2005-01 ended
ZZW30 —
90982-09012 note Fuse, Fuse Block
2002-08 → 2005-01 ended
ZZW30 —
90982-09013 note Fuse, Fuse Block
2002-08 → 2005-01 ended
ZZW30 —
82616 — Puller, Fuse
82616-20010 Puller, Fuse
1999-12 → 2002-08 ended
ZZW30 —
82616-20010 Puller, Fuse
2002-08 → 2005-01 ended
ZZW30 —
82660D — Block Assy, Relay
82660-17140 Block Assy, Relay
1999-12 → 2002-08 ended
ZZW30 —
82660-17140 Block Assy, Relay
2002-08 → 2005-01 ended
ZZW30 —
82662B — Cover, Relay Block, Upper, NO.2
82662-17030 Cover, Relay Block, Upper, NO.2
1999-12 → 2002-08 ended
ZZW30 —
82662-17032 Cover, Relay Block, Upper, NO.2
2002-08 → 2005-01 ended
ZZW30 —
82662C — Cover, Relay Block, Upper, NO.3
82662-17020 Cover, Relay Block, Upper, NO.3
1999-12 → 2002-08 ended
ZZW30 —
82662-17022 Cover, Relay Block, Upper, NO.3
2002-08 → 2005-01 ended
ZZW30 —
82663A — Cover, Relay Block, Lower, NO.2
82663-17030 Cover, Relay Block, Lower, NO.2
1999-12 → 2002-08 ended
ZZW30 —
82663-17030 Cover, Relay Block, Lower, NO.2
2002-08 → 2005-01 ended
ZZW30 —
82663B — Cover, Relay Block, Lower, NO.3
82663-06010 Cover, Relay Block, Lower, NO.3
1999-12 → 2002-08 ended
ZZW30 —
82663-06010 Cover, Relay Block, Lower, NO.3
2002-08 → 2005-01 ended
ZZW30 —
82742 — Block, Engine Room Relay, NO.2
82742-06010 Block, Engine Room Relay, NO.2
2002-08 → 2005-01 ended
ZZW30 —
85916D — Relay, Fog Lamp
90987-02027 Relay, Fog Lamp
2002-08 → 2005-01 ended
ZZW30 —
85926 — Relay, Headlamp Dimmer
85926-30020 Relay, Headlamp Dimmer
1999-12 → 2002-08 ended
ZZW30 —
85926-30020 Relay, Headlamp Dimmer
2002-08 → 2005-01 ended
ZZW30 —
85926A — Relay, Headlamp Day Dim Light
90987-02006 Relay, Headlamp Day Dim Light
1999-12 → 2002-08 ended
ZZW30 —
90987-02006 Relay, Headlamp Day Dim Light
2002-08 → 2005-01 ended
ZZW30 —
85927 — Relay, Cooling Fan
90987-02012 Relay, Cooling Fan
1999-12 → 2002-08 ended
ZZW30 —
90987-02027 Relay, Cooling Fan
2002-08 → 2005-01 ended
ZZW30 —
85927A — Relay, Cooling Fan, NO.2
90987-04004 Relay, Cooling Fan, NO.2
1999-12 → 2002-08 ended
ZZW30 —
90987-04004 Relay, Cooling Fan, NO.2
2002-08 → 2005-01 ended
ZZW30 —
85927B — Relay, Cooling Fan, NO.3
90987-02012 Relay, Cooling Fan, NO.3
1999-12 → 2002-08 ended
ZZW30 —
90987-02027 Relay, Cooling Fan, NO.3
2002-08 → 2005-01 ended
ZZW30 —
89654 — Relay, Power Steering
89654-17030 Relay, Power Steering
1999-12 → 2002-08 ended
ZZW30 —
89654-17030 Relay, Power Steering
2002-08 → 2005-01 ended
ZZW30 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
