Toyota MR2
1999-12 → 2005-01 · chassis ZZW30 · catalogue 211430 · United States
Discontinued model
Data version 2005-07

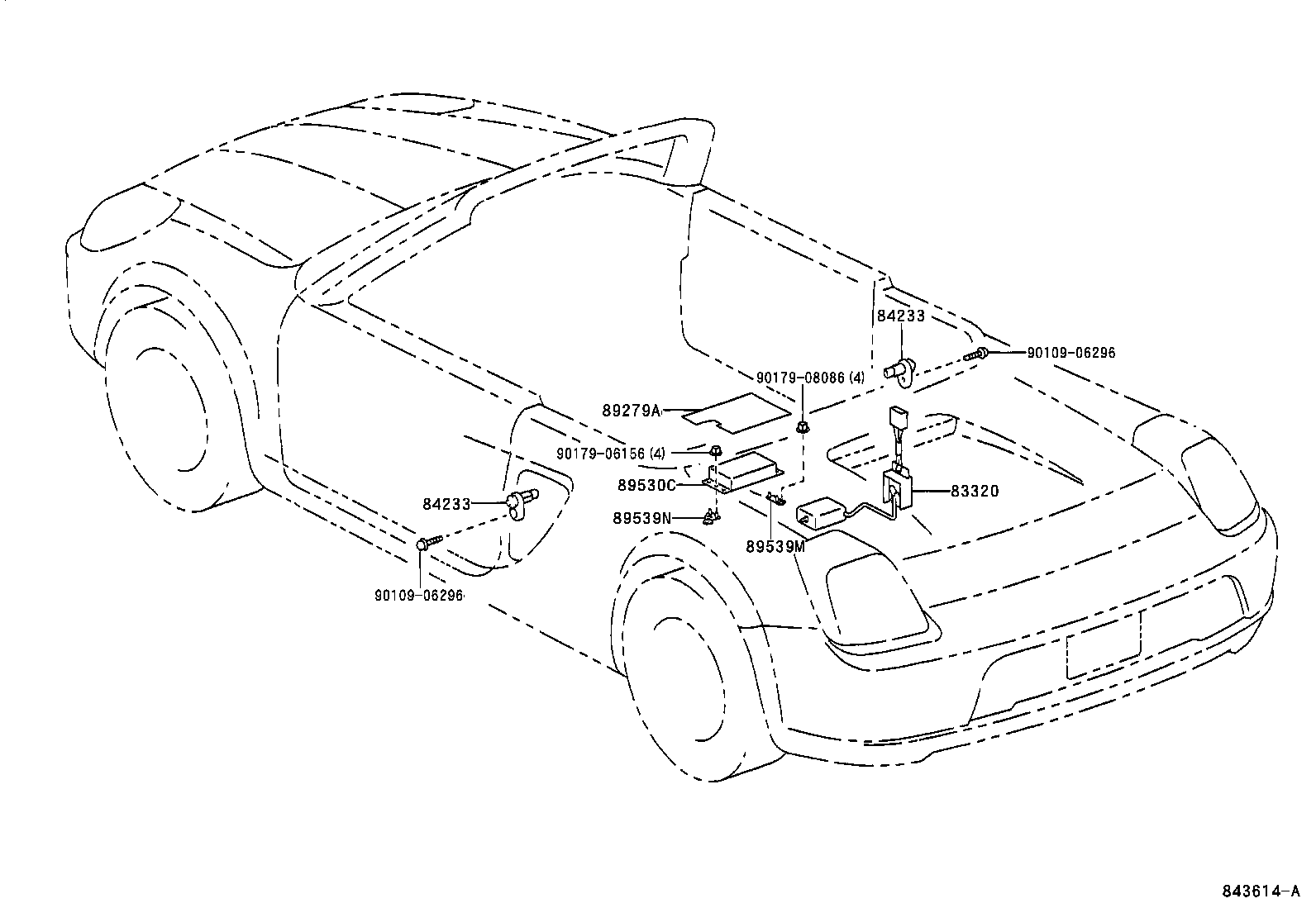

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-17050 |
Gage Assy, Fuel Sender
1999-12 → 2002-08
ended
|
ZZW30 | — | |
| 83320-17060 |
Gage Assy, Fuel Sender
2002-08 → 2005-01
ended
|
ZZW30 | — | |
| 84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR) | ||||
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1999-12 → 2002-08
ended
|
ZZW30 | — | |
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2002-08 → 2005-01
ended
|
ZZW30 | — | |
| 89279A — Cover, Computer | ||||
| 89279-17031 |
Cover, Computer
2000-08 → 2002-08
ended
|
ZZW30 5FS | — | |
| 89279-17031 |
Cover, Computer
2002-08 → 2005-01
ended
|
ZZW30 6FS | — | |
| 89530C — Computer Assy, Transmission Control | ||||
| 89535-0W041 |
Computer Assy, Transmission Control
2000-08 → 2002-08
ended
|
ZZW30 5FS | — | |
| 89535-0W020 |
Computer Assy, Transmission Control
2002-08 → 2003-02
ended
|
ZZW30 6FS | — | |
| 89535-0W050 |
Computer Assy, Transmission Control
2003-02 → 2004-08
ended
|
ZZW30 6FS | — | |
| 89535-0W060 |
Computer Assy, Transmission Control
2004-08 → 2005-01
ended
|
ZZW30 6FS | — | |
| 89539M — Bracket, Transmission Control Computer, NO.1 | ||||
| 89539-17010 |
Bracket, Transmission Control Computer, NO.1
2000-08 → 2002-08
ended
|
ZZW30 5FS | — | |
| 89539-17010 |
Bracket, Transmission Control Computer, NO.1
2002-08 → 2005-01
ended
|
ZZW30 6FS | — | |
| 89539N — Bracket, Transmission Control Computer, NO.2 | ||||
| 89539-17020 |
Bracket, Transmission Control Computer, NO.2
2000-08 → 2002-08
ended
|
ZZW30 5FS | — | |
| 89539-17020 |
Bracket, Transmission Control Computer, NO.2
2002-08 → 2005-01
ended
|
ZZW30 6FS | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
