Toyota MR2

1999-12 → 2005-01 · chassis ZZW30 · catalogue 211430 · United States

Discontinued model Data version 2005-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Shaft & Hub

43 part groups · 5 illustrations

Illustrations

411070B 1999-12 → 2002-08

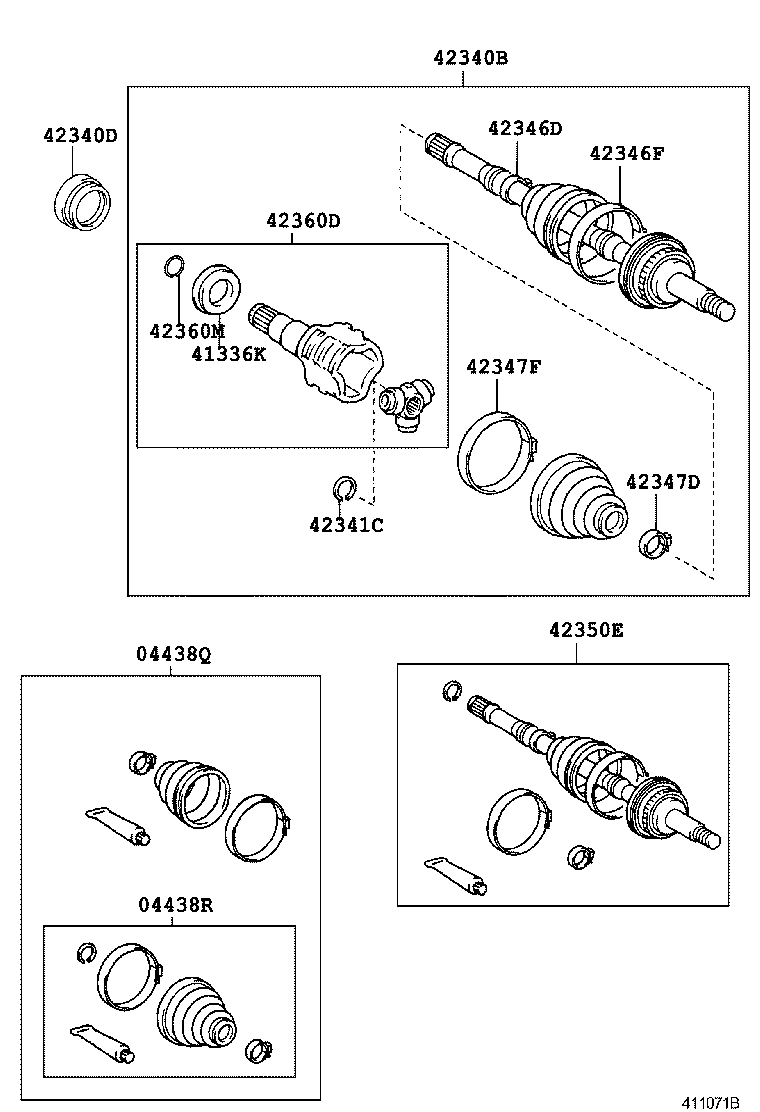

411071B 1999-12 → 2002-08

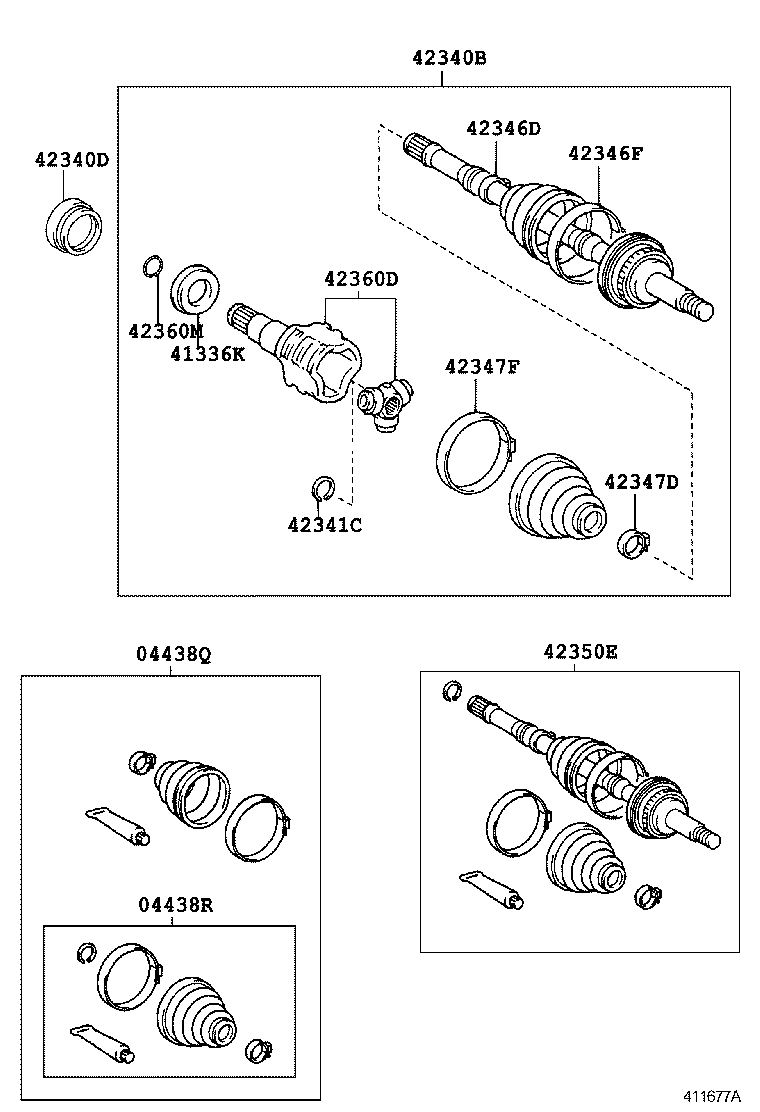

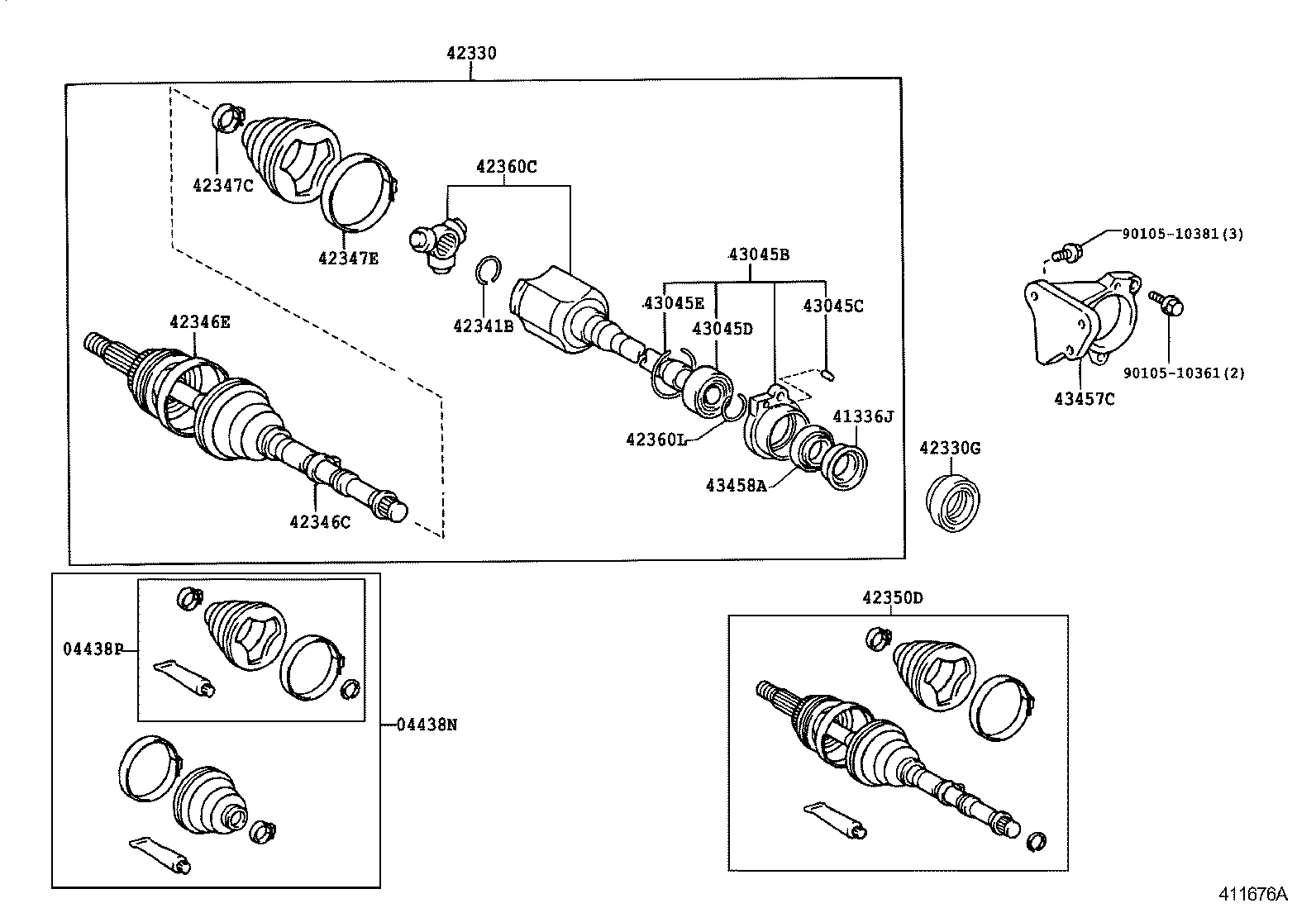

411676A 2002-08 → —

411677A 2002-08 → —

411072A 1999-12 → —

Part groups

PNC	Description
04438N	Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
04438P	Boot Kit, Rear Drive Shaft, Inboard Joint, RH
04438Q	Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
04438R	Boot Kit, Rear Drive Shaft, Inboard Joint, LH
41336J	Cover, Rear Drive Shaft Dust, RH
41336K	Cover, Rear Drive Shaft Dust, LH
42311L	Shaft, Rear Axle, RH
42311M	Bearing(FOR REAR AXLE SHAFT RH)
42311N	Nut(FOR REAR AXLE SHAFT RH)
42311T	Ring, Snap(FOR REAR AXLE SHAFT RH)
42311U	Bolt, Hub(FOR REAR AXLE RH)
42312	Shaft, Rear Axle, LH
42312A	Bearing(FOR REAR AXLE SHAFT LH)
42312B	Nut(FOR REAR AXLE SHAFT LH)
42312D	Ring, Snap(FOR REAR AXLE SHAFT LH)
42312E	Bolt, Hub(FOR REAR AXLE LH)
42330	Shaft Assy, Rear Drive, RH
42330G	Oil Seal, Rear Drive Shaft, RH
42340B	Shaft Assy, Rear Drive, LH
42340D	Oil Seal, Rear Drive Shaft, LH
42341B	Ring, Snap (FOR REAR DRIVE SHAFT RH)
42341C	Ring, Snap (FOR REAR DRIVE SHAFT LH)
42346C	Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42346D	Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42346E	Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42346F	Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42347C	Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347D	Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42347E	Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347F	Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
42350D	Joint Assy, Rear Drive Shaft Outboard, RH
42350E	Joint Assy, Rear Drive Shaft Outboard, LH
42360C	Joint Assy, Rear Drive Shaft Inboard, RH
42360D	Joint Assy, Rear Drive Shaft Inboard, LH
42360L	Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
42360M	Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
42431	Disc, Rear
43045B	Case Sub-assy, Rear Drive Shaft Bearing
43045C	Pin, Straight(FOR REAR DRIVE SHAFT BEARING CASE)
43045D	Bearing(FOR REAR DRIVE SHAFT)
43045E	Ring, Snap(FOR CASE SUB-ASSY, REAR DRIVE SHAFT BEARING)
43457C	Bracket, Drive Shaft Bearing
43458A	Cover, Rear Drive Shaft Dust

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
