Toyota MR2

1999-12 → 2005-01 · chassis ZZW30 · catalogue 211430 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

18 part groups · 2 illustrations

Illustrations

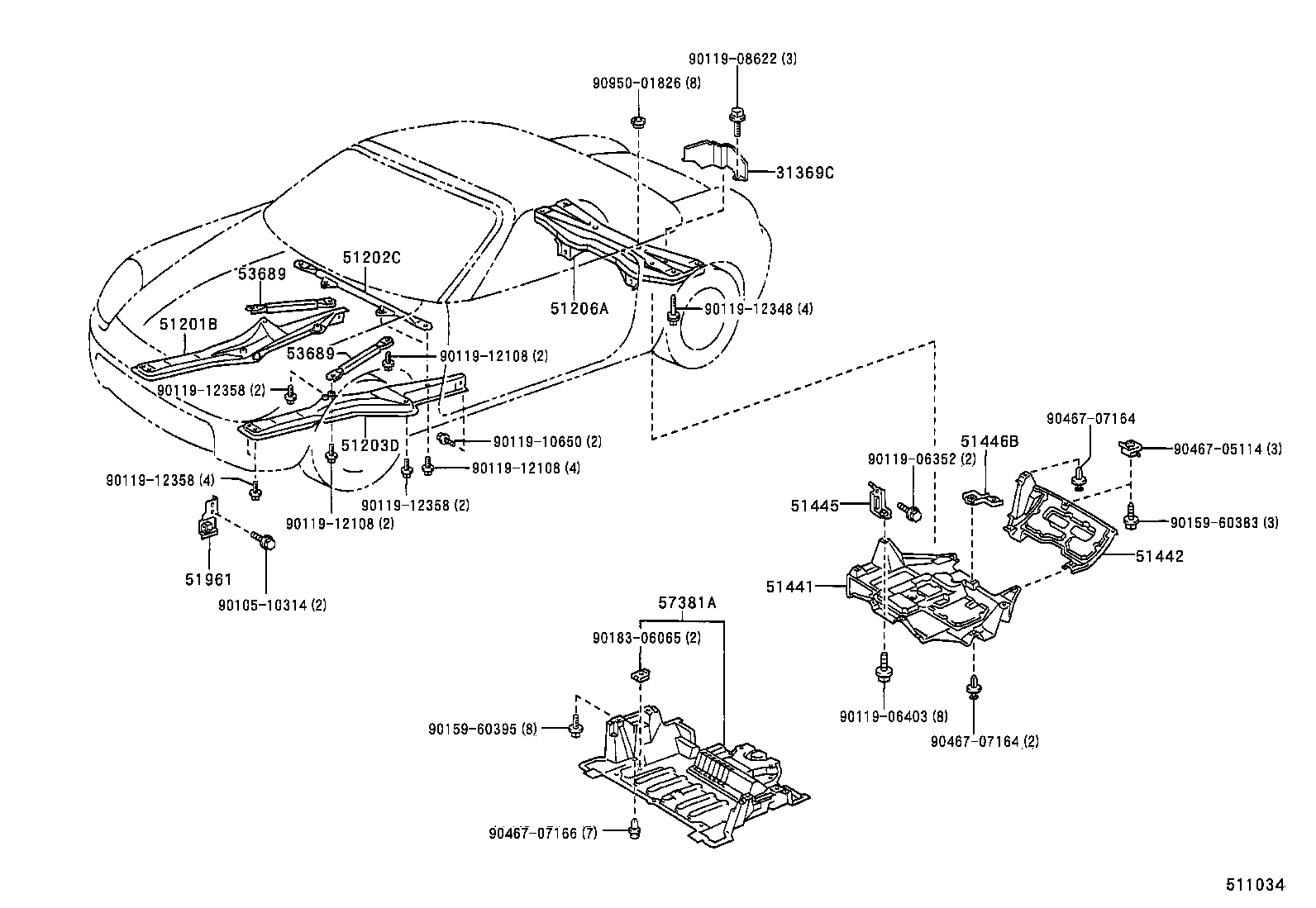

Figure 510553G 510553G 1999-12 → 2004-01 Figure 511034 511034 2004-01 → —

Part groups

PNCDescription
31369C Insulator, Transaxle Heat
51201B Crossmember Sub-assy, Front Suspension, RH
51202C Crossmember Sub-assy, Front Suspension, Lower
51203D Crossmenber Sub-assy, Front Suspension, LH
51206A Member Sub-assy, Rear Suspension
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51445 Bracket, Engine Under Cover
51446B Bracket, Engine Under Cover, NO.2
51961 Hook, NO.1
52255 Brace, Front Suspension Member, Front RH
52256 Brace, Front Suspension Member, Front LH
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
53687A Brace, Front Suspension Lower TO Crossmember, RH
53688A Brace, Front Suspension Lower TO Crossmember, LH
53689 Brace, Front Suspension, Lower Center
57381A Cover, Front Luggage Under
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
