Toyota MR2

1999-12 → 2005-01 · chassis ZZW30 · catalogue 211430 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Side Ventilator

4 part groups · 2 illustrations

Illustrations

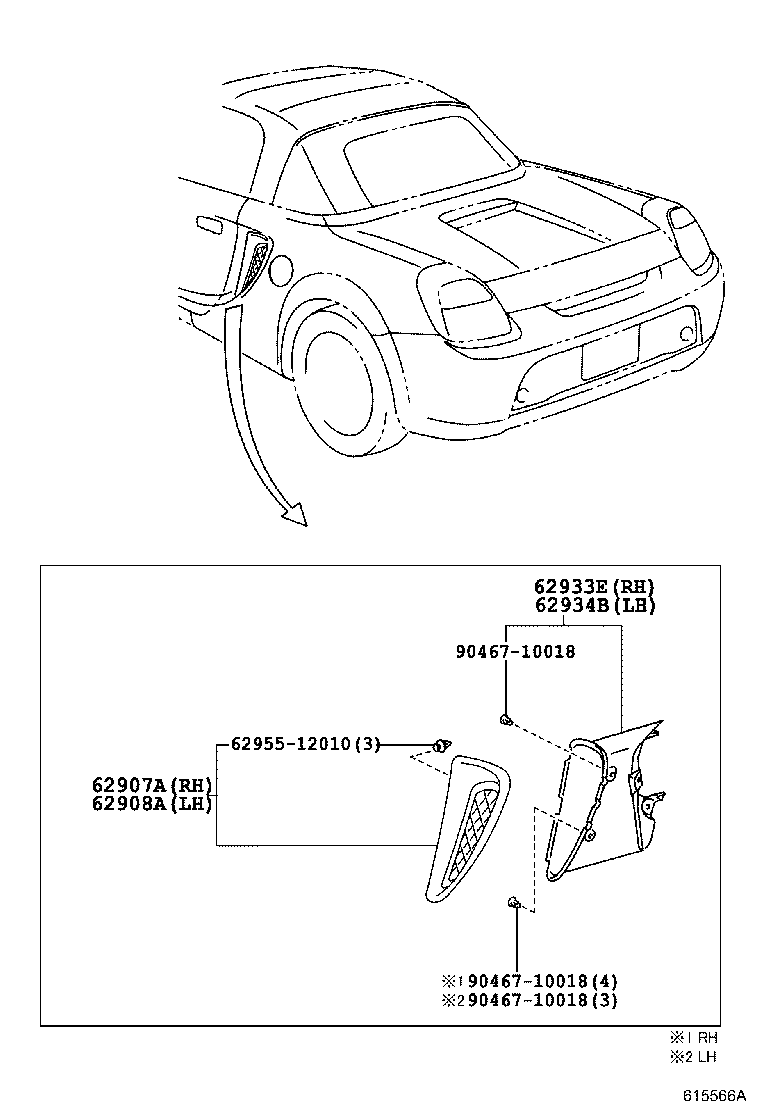

Figure 611090C 611090C 1999-12 → 2002-08 Figure 615566A 615566A 2002-08 → —

Part groups

PNCDescription
62907A Garnish Sub-assy, Quarter Panel Air Inlet, RH
62908A Garnish Sub-assy, Quarter Panel Air Inlet, LH
62933E Duct, Quarter Vent, Inner RH
62934B Duct, Quarter Vent, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
