Toyota MR2

1999-12 → 2005-01 · chassis ZZW30 · catalogue 211430 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

25 part groups · 2 illustrations

Illustrations

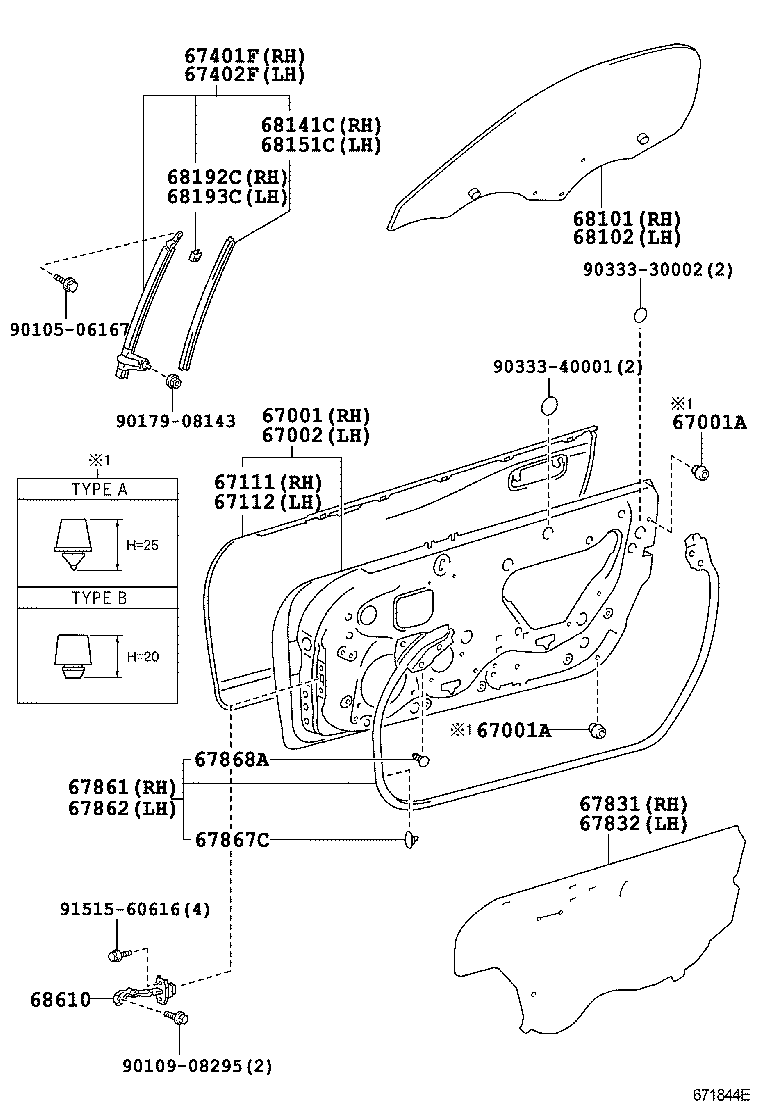

Figure 671842A 671842A 1999-12 → — Figure 671844E 671844E 1999-12 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67001A Cushion, Front Door Panel
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67401F Frame Sub-assy, Front Door, Front Lower RH
67402F Frame Sub-assy, Front Door, Front Lower LH
67601 Board Sub-assy, Front Door Trim, RH
67601B Clip(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67609B Grille Sub-assy, Front Door Speaker
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67867C Retainer, Front Door Weatherstrip, RH
67868A Clip, Door Glass Weatherstrip(FOR FRONT DOOR)
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141C Run, Front Door Glass, RH
68151C Run, Front Door Glass, LH
68170 Weatherstrip Assy, Front Door Glass, Inner
68192C Seal, Front Door Belt, Front RH
68193C Seal, Front Door Belt, Front LH
68610 Check Assy, Front Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
