Toyota MR2

1999-12 → 2005-01 · chassis ZZW30 · catalogue 211430 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

26 part groups · 8 illustrations

Illustrations

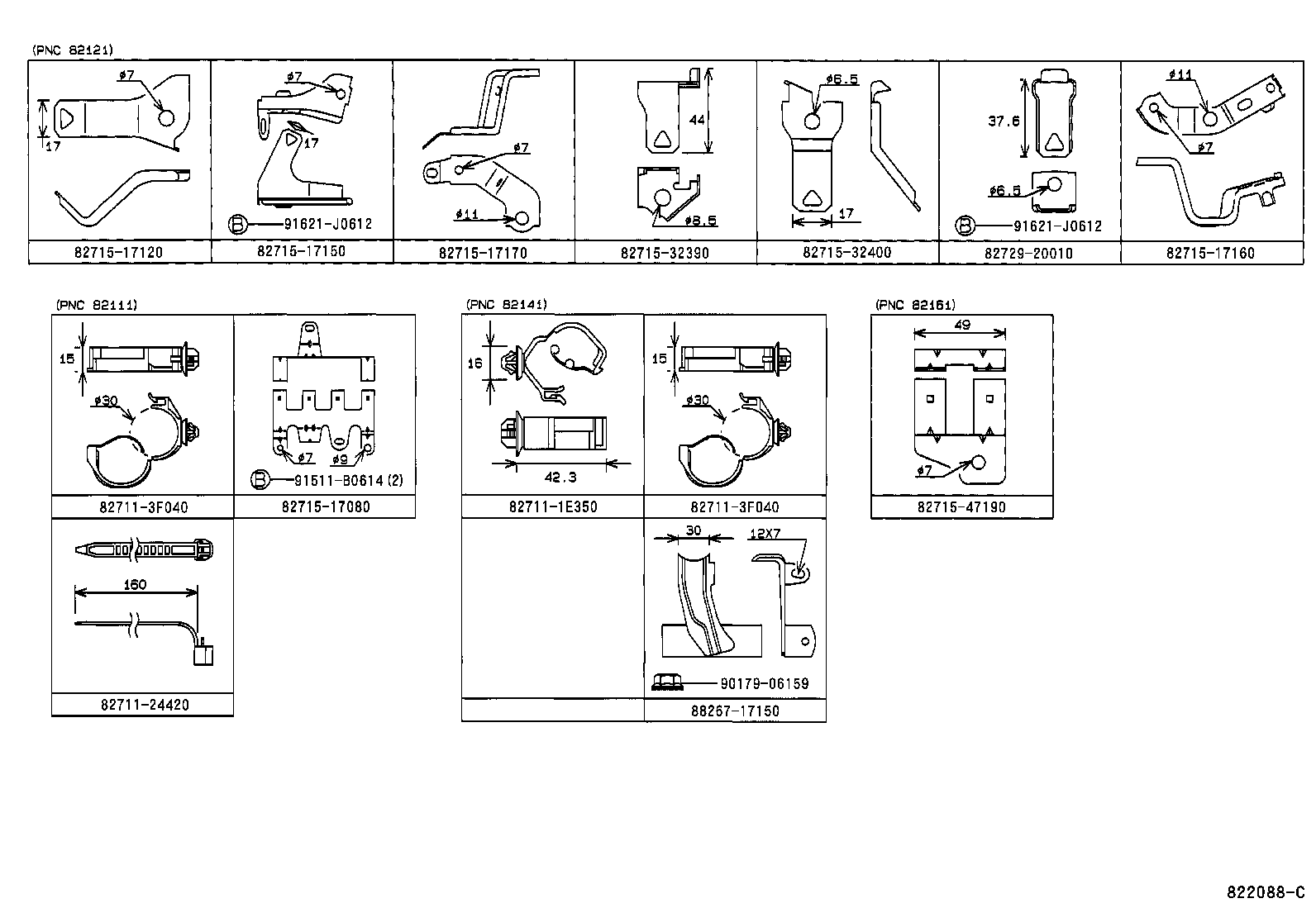

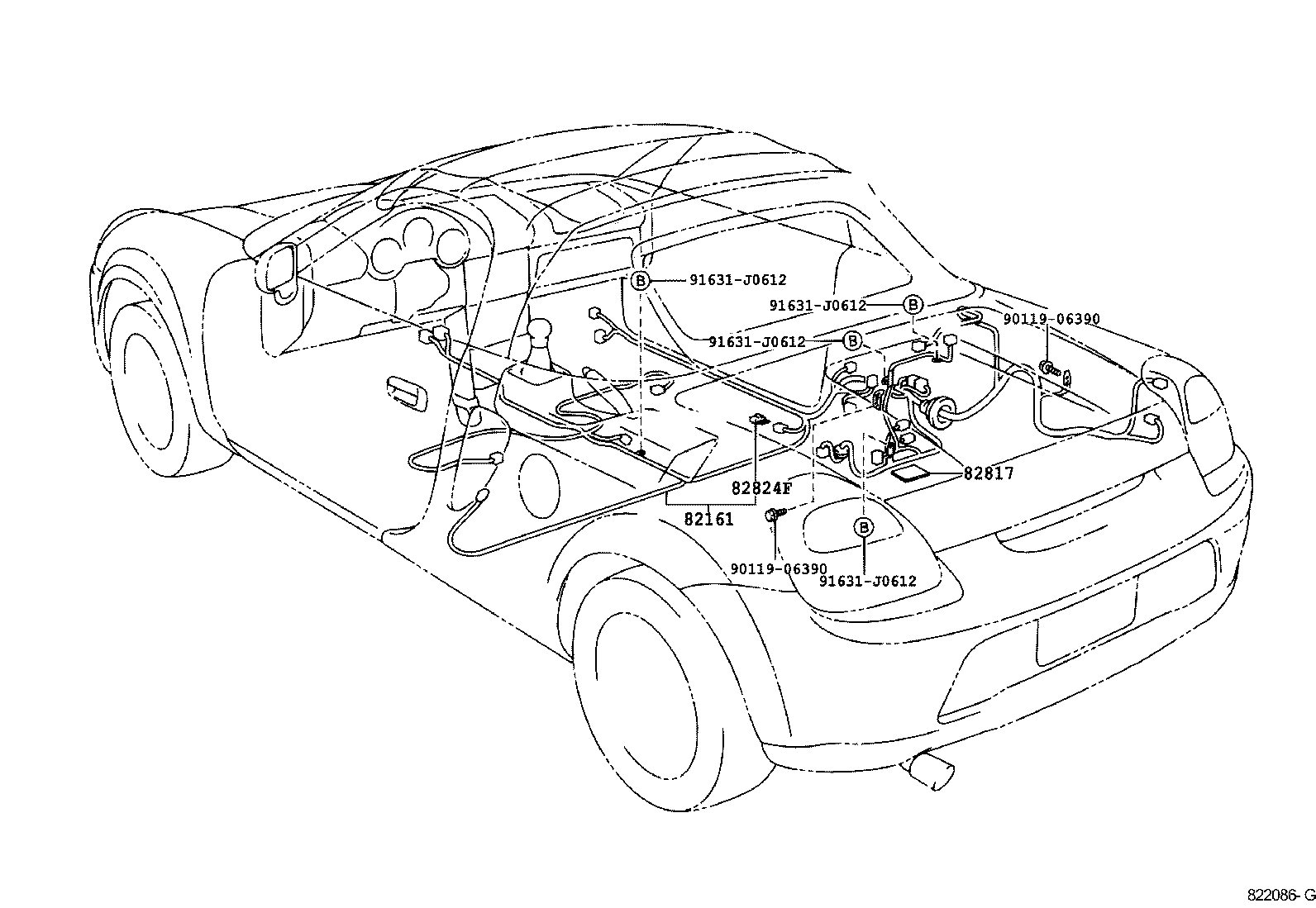

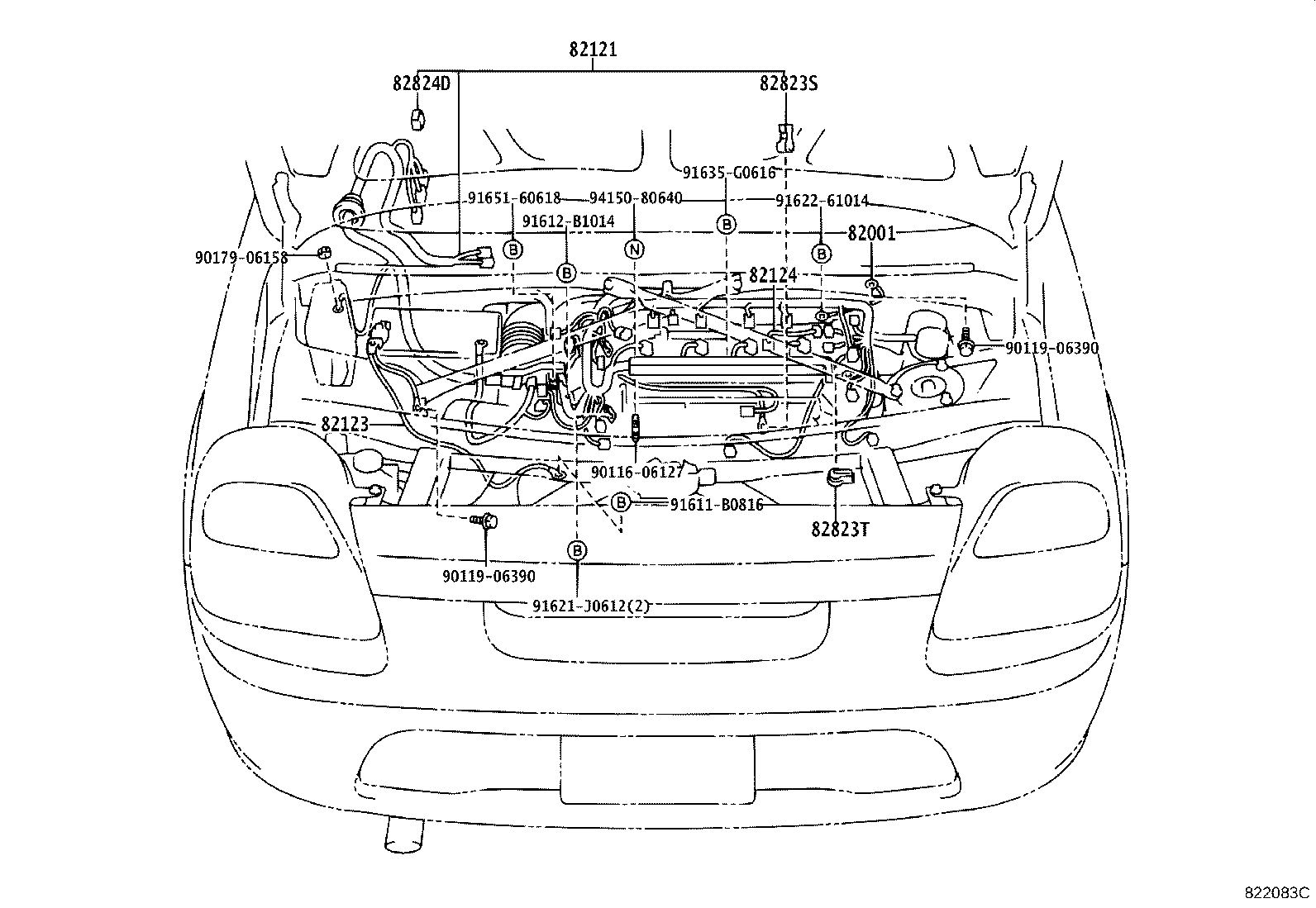

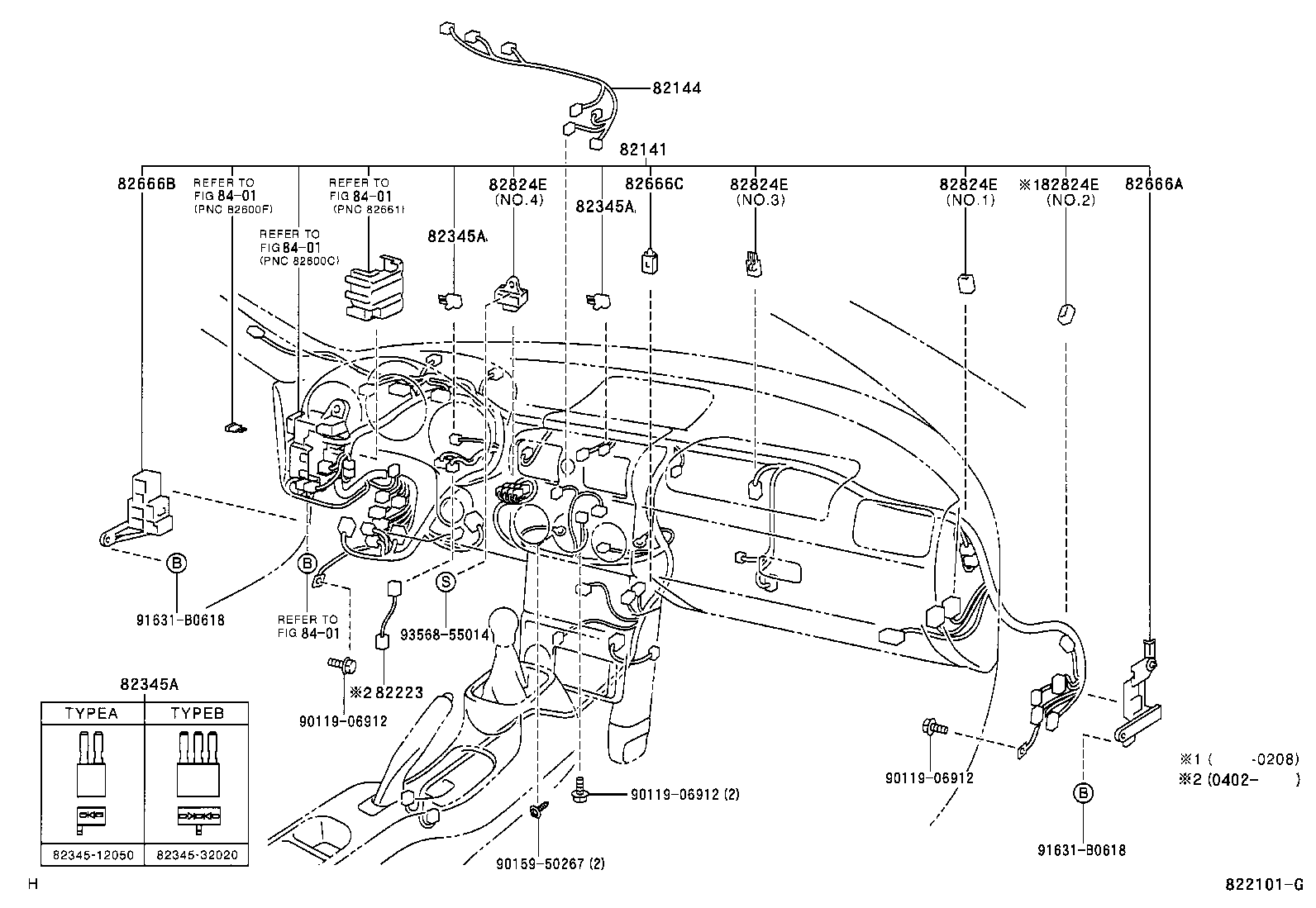

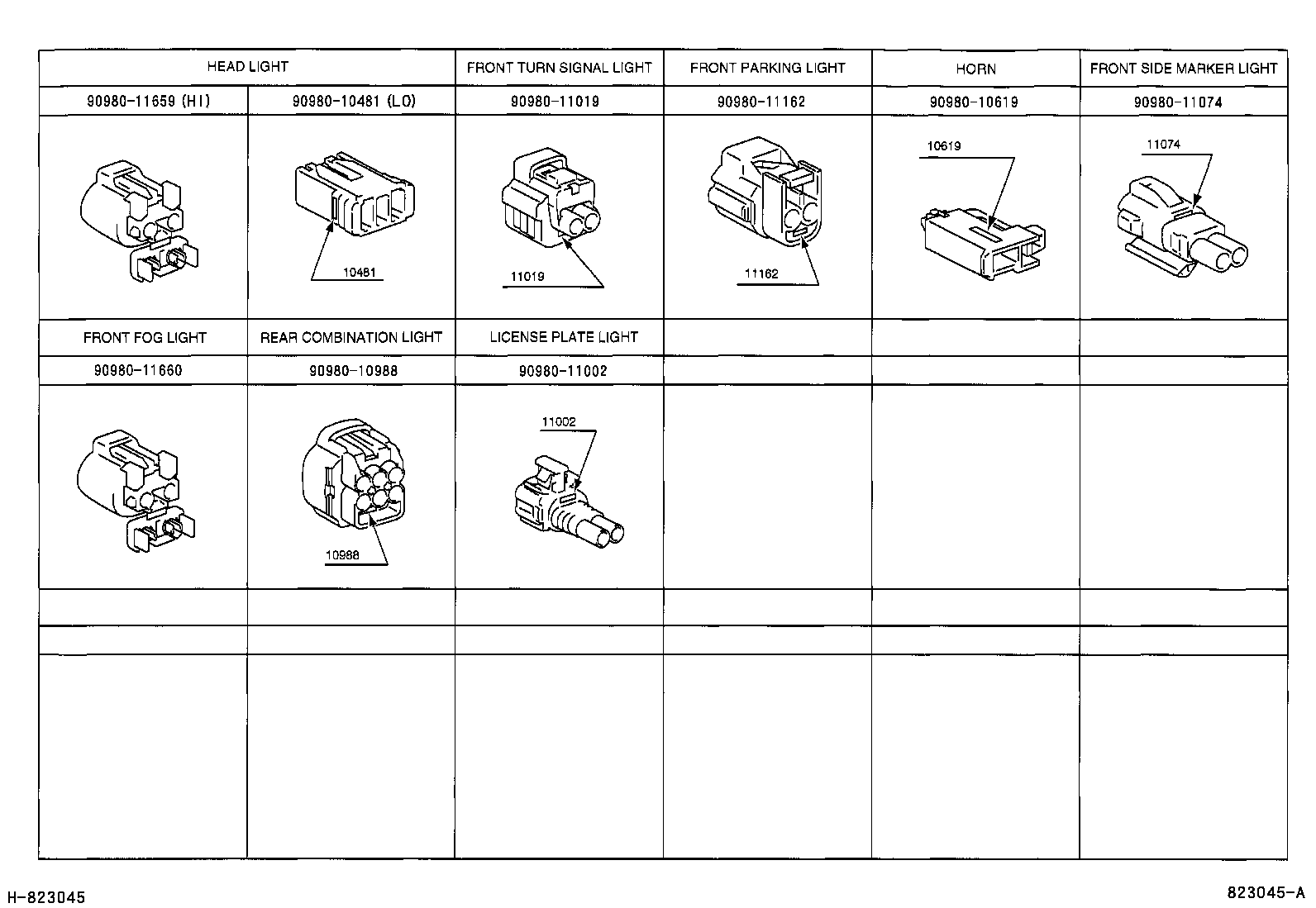

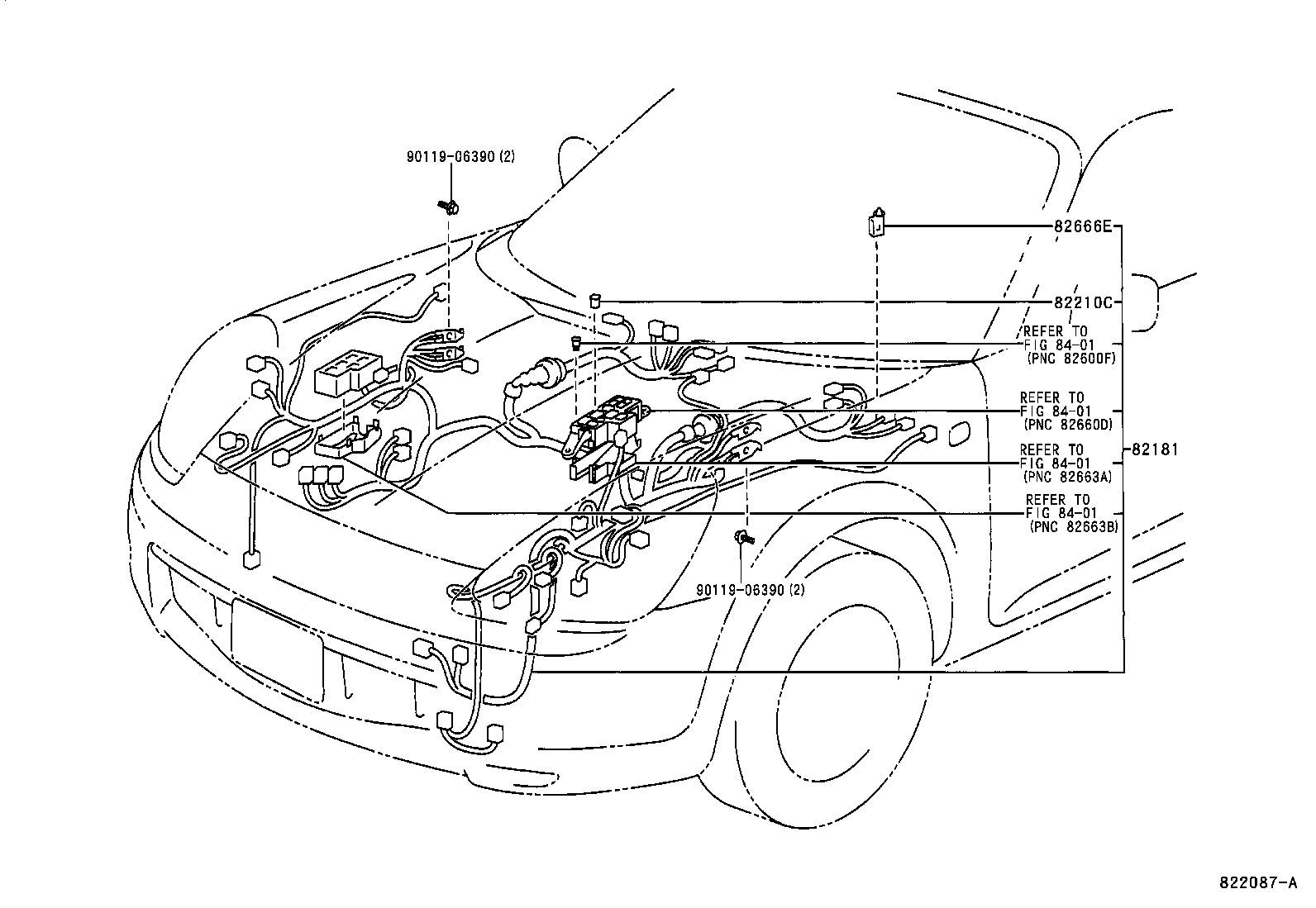

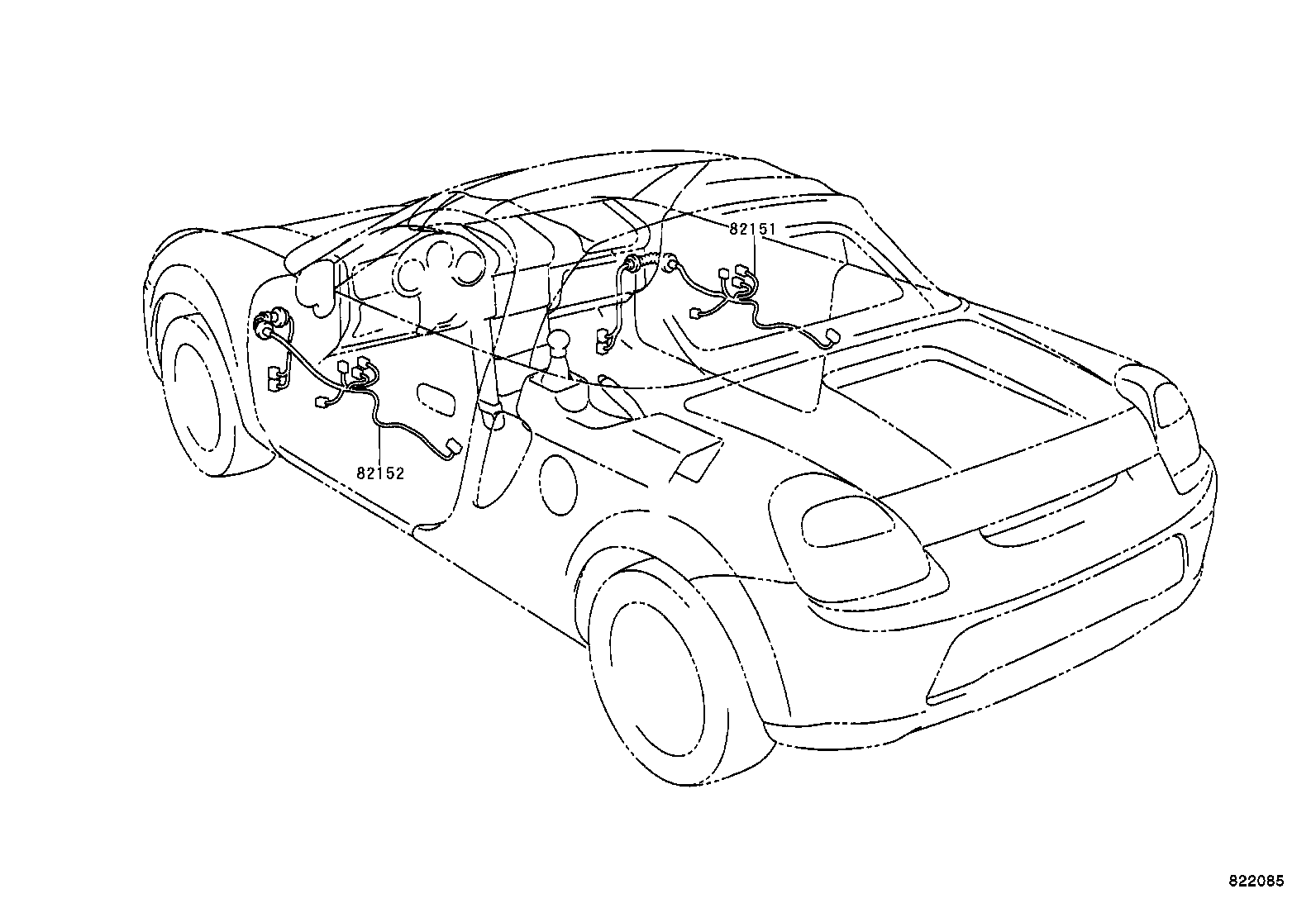

Figure 822082B 822082B 1999-12 → — Figure 822083C 822083C 1999-12 → — Figure 822101G 822101G 1999-12 → — Figure 822085 822085 1999-12 → — Figure 822086G 822086G 1999-12 → — Figure 822087A 822087A 1999-12 → — Figure 822088C 822088C 1999-12 → — Figure 823045A 823045A 1999-12 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82181 Wire, Luggage Room, NO.1
82210C Fusible Link
82223 Wire, Switch
82345A Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666E Holder, Connector NO.6
82817 Protector, Wiring Harness, NO.1
82821E Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
