Toyota Prius

2000-05 → 2003-08 · chassis NHW11 · catalogue 222410 · United States

Discontinued model Data version 2004-01

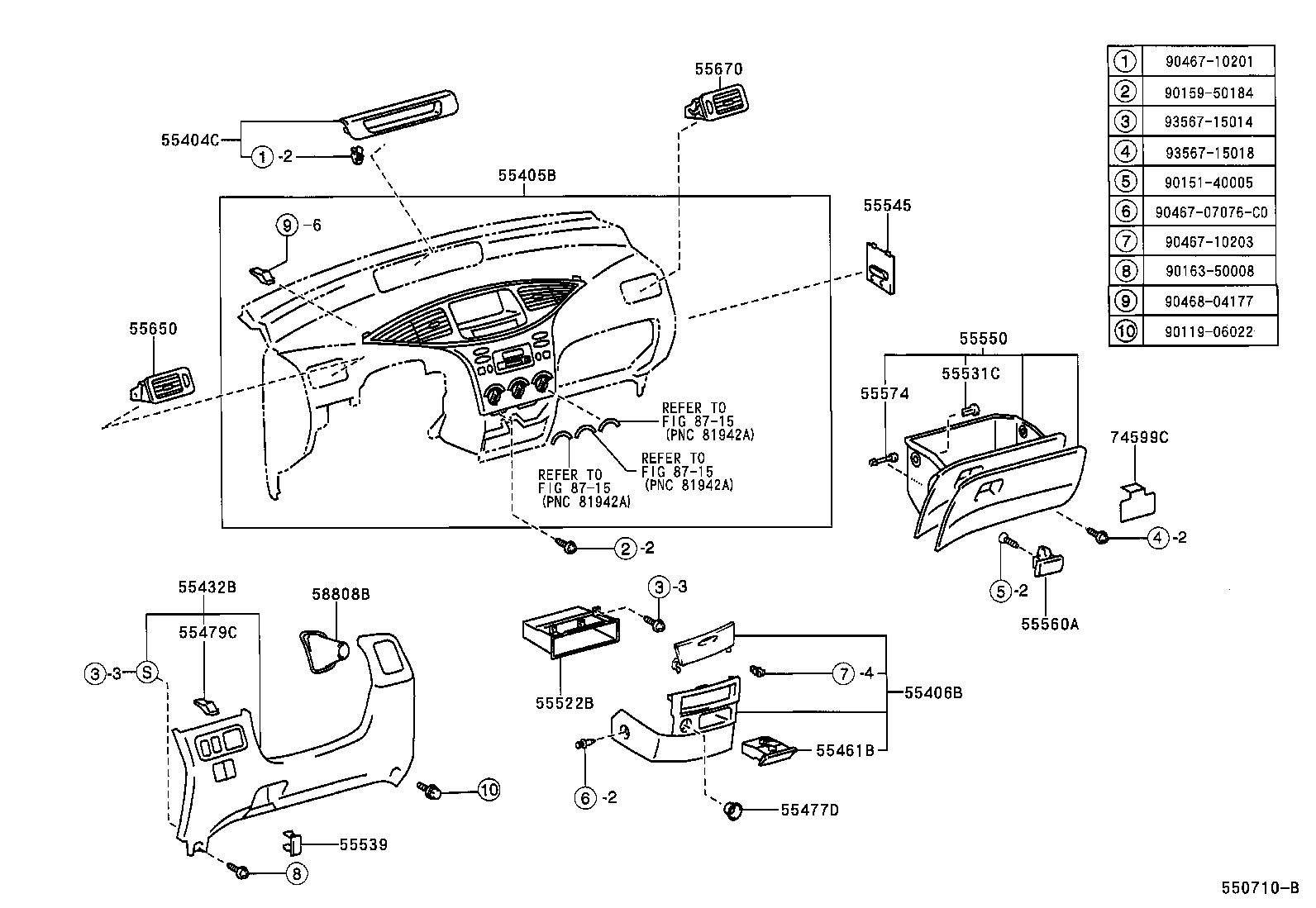

Instrument Panel & Glove Compartment

38 part groups · 2 illustrations

PNC	Description
55301	Panel Sub-assy, Instrument
55306A	Brace Sub-assy, Instrument Panel, NO.1
55308C	Bracket Sub-assy, Instrument Panel, Center
55328	Pin, Instrument Panel, NO.1
55330B	Reinforcement Assy, Instrument Panel
55346A	Clip, Instrument Panel, NO.2
55355	Cushion, Instrument Panel, NO.1
55356C	Cushion, Instrument Panel, NO.2
55357B	Cushion, Instrument Panel, NO.3
55358K	Cushion, Instrument Panel, NO.4
55402D	Pad Sub-assy, Instrument Panel Safety, NO.1
55403E	Pad Sub-assy, Instrument Panel Safety, NO.2
55404C	Panel Sub-assy, Instrument Cluster Finish, NO.2
55405B	Panel Sub-assy, Instrument Cluster Finish, Center
55406B	Panel Sub-assy, Instrument Cluster Finish, Lower Center
55431A	Panel, Instrument Panel Finish
55432B	Panel, Instrument Panel Finish, Lower
55461B	Box, Instrument Panel, Center
55477D	Cover, Cigarette Lighter Hole
55479C	Clip(FOR INSTRUMENT LOWER COVER)
55522B	Cover, Radio Tuner Opening
55531C	Pin, Glove Door Stopper
55539	Cover, Spare Switch Hole
55545	Cover, Fuse Box Opening
55550	Door Assy, Glove Compartment
55558	Reinforcement, Glove Compartment Door
55560A	Lock Assy, Glove Compartment Door
55574	Shaft, Glove Compartment Door Hinge
55650	Register Assy, Instrument Panel, NO.1
55670	Register Assy, Instrument Panel, NO.3
55950A	Nozzle Assy, Defroster
55961	Nozzle, Side Defroster, NO.1
55962	Nozzle, Side Defroster, NO.2
55971B	Duct, Side Defroster Nozzle, NO.1
55972A	Duct, Side Defroster Nozzle, NO.2
58808B	Cover, Shifting Hole
73970A	Airbag Assy, Instrument Panel Passenger
74599C	Label, Driver & Passenger Airbag Information

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
