Toyota Prius
2000-05 → 2003-08 · chassis NHW11 · catalogue 222410 · United States
Discontinued model
Data version 2004-01
Fuel Tank & Tube

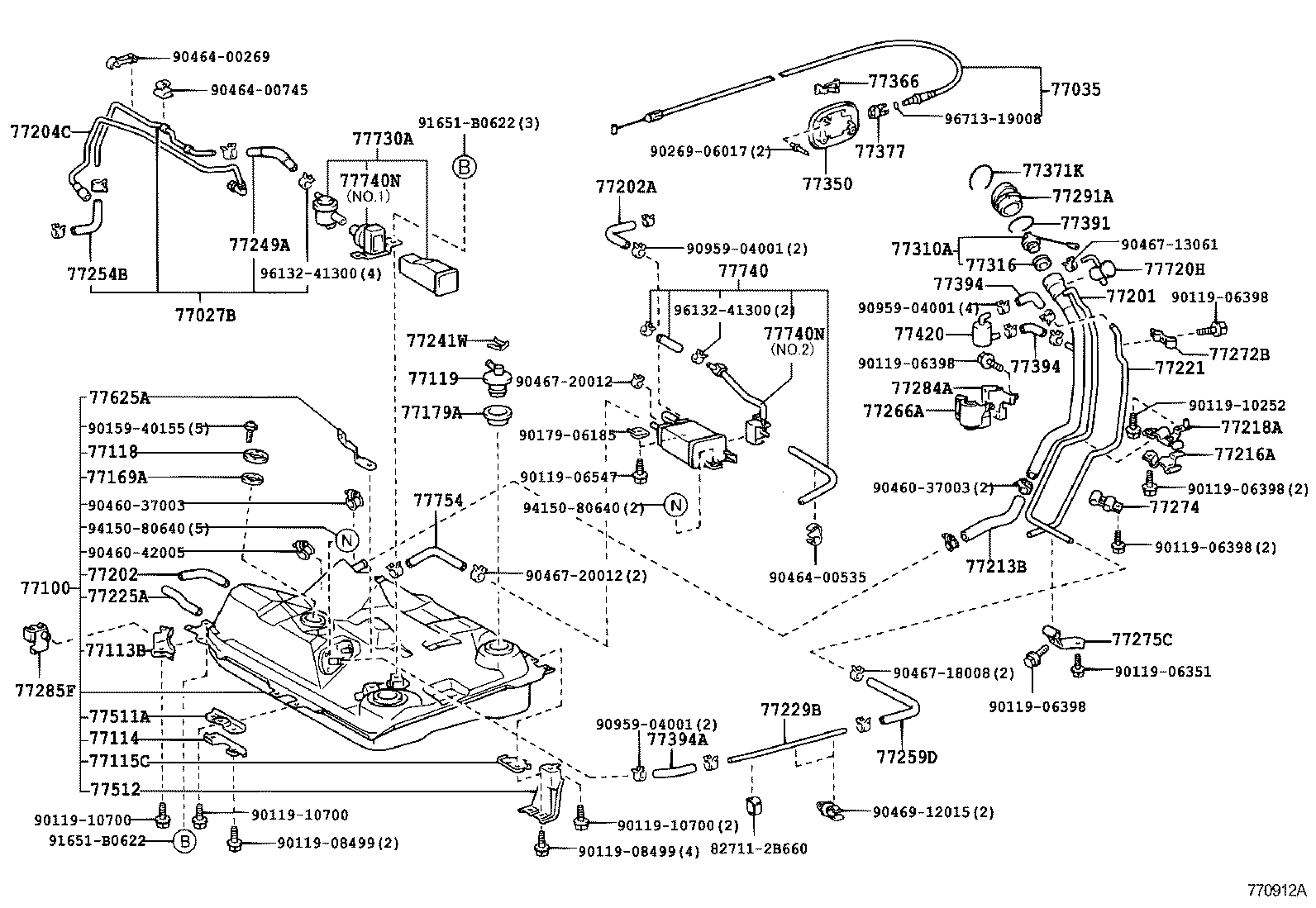

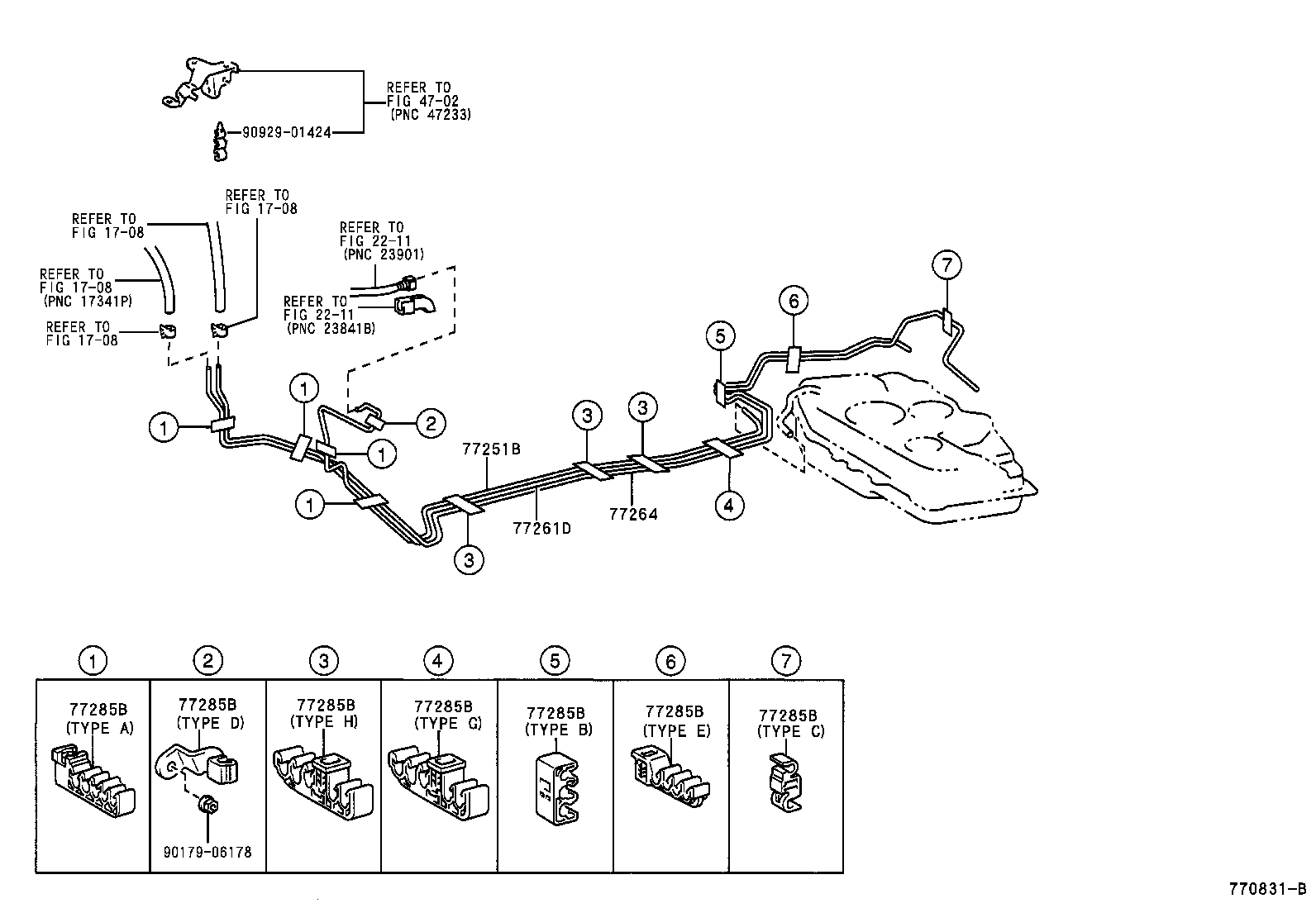

53 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 77027B | Tube Sub-assy, Fuel Emission, NO.1 |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77100 | Tank Assy, Fuel |
| 77113B | Plate, Fuel Tank Side |
| 77114 | Plate, Fuel Tank Side, Rear |
| 77115C | Plate, Fuel Tank Side, NO.3 |
| 77118 | Plate, Fuel Pump Connector |
| 77119 | Retainer, Fuel Tank, LH |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77202 | Tube Sub-assy, Breather |
| 77202A | Hose, Fuel, NO.1 (FOR BREATHER TUBE) |
| 77204C | Tube Sub-assy, Fuel Tank Main, NO.2 |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77218A | Support, Fuel Tank Filler Pipe, NO.3 |
| 77221 | Tube, Fuel Tank Breather, NO.1 |
| 77225A | Tube, Fuel Tank Breather, NO.5 |
| 77229B | Tube, Fuel Tank Evaporation Vent, NO.3 |
| 77241W | Clip, Tube Joint |
| 77249A | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77254B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1) |
| 77259D | Hose, Fuel, NO.1 |
| 77261D | Tube, Fuel Tank TO Canister |
| 77264 | Tube, Canister TO Front Side Member |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77272B | Support, Breather Tube, NO.1 |
| 77274 | Bracket, Fuel Evaporative Separator |
| 77275C | Support, Breather Tube, NO.4 |
| 77284A | Protector, Fuel Tube, NO.3 |
| 77285B | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77371K | Bracket, Fuel Filler Opening Lid Lock |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391 | Ring, Fuel Inlet Box |
| 77394 | Hose, Valve TO Fuel Filler Pipe |
| 77394A | Hose, Valve TO Fuel Filler Pipe |
| 77420 | Valve Assy, Fuel Cut Off, NO.2 |
| 77511A | Bracket, Fuel Tank |
| 77512 | Bracket, Fuel Tank, Rear |
| 77625A | Bracket, Fuel Tank, Rear |
| 77720H | Valve Assy, Fuel Outlet |
| 77730A | Canister Assy, Trap W/Outlet Valve |
| 77740 | Canister Assy, Charcoal |
| 77740N | Valve, Vacuum Switching(FOR CHARCOAL CANISTER) |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
