Toyota Prius

2003-08 → 2009-03 · chassis NHW20 · catalogue 222420 · United States

Supported model Data version 2009-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

22 part groups · 2 illustrations

Illustrations

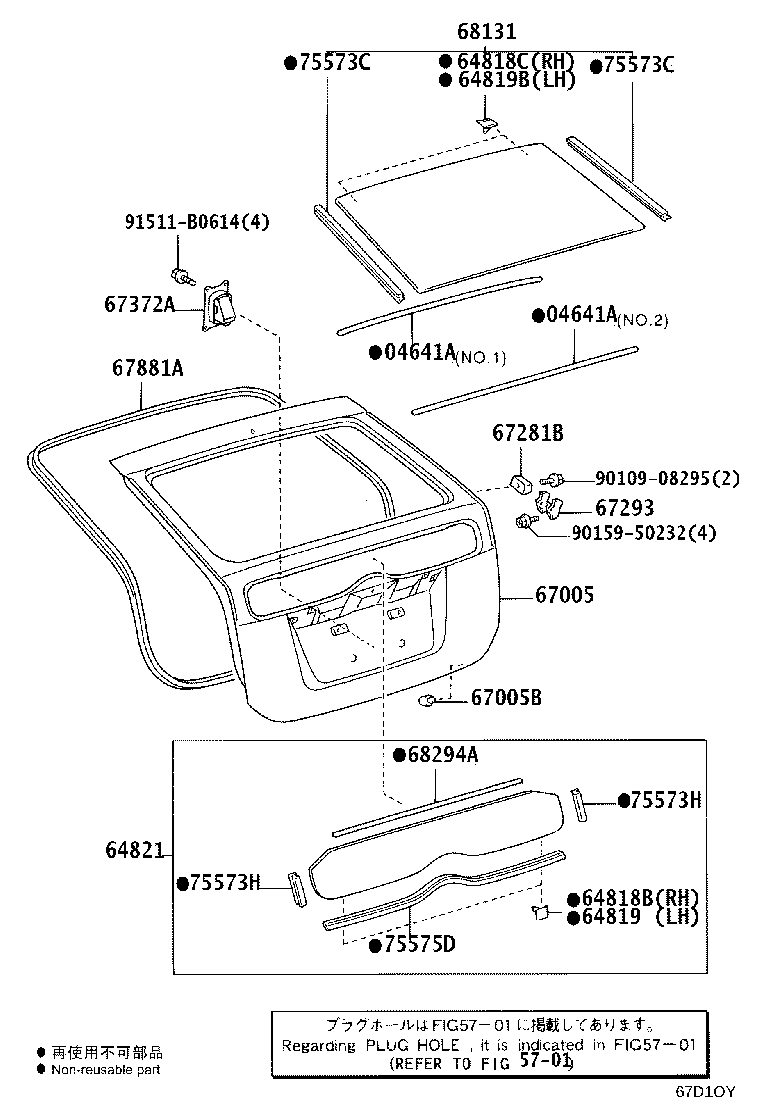

Figure 673220A 673220A 2003-08 → — Figure 67D1OY 67D1OY 2003-08 → —

Part groups

PNCDescription
04641A Dam Kit, Back Window Glass Adhesive
64790B Panel Assy, Back Door Trim, Upper
64818B Spacer, Back Door Glass, NO.1
64818C Spacer, Back Window Glass, NO.1
64819 Spacer, Back Window Glass, NO.2
64819B Spacer, Back Window Glass, NO.2
64821 Glass, Back Window Fix
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67281B Stopper, Back Door, Lower
67293 Cushion, Back Door Lower Stopper
67372A Weight, Back Door
67750 Board Assy, Back Door Trim
67751 Board, Back Door Trim
67881A Weatherstrip, Back Door
67937B Garnish, Back Door Side, RH
67938A Garnish, Back Door Side, LH
68131 Glass, Back Door
68294A Dam, Back Door Glass Adhesive
75573C Moulding, Back Window, Outside
75573H Moulding, Back Window, Outside
75575D Moulding, Back Window, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
