Toyota Prius
2009-04 → 2015-11 · chassis ZVW30 · catalogue 222430 · United States
Supported model
Data version 2016-05

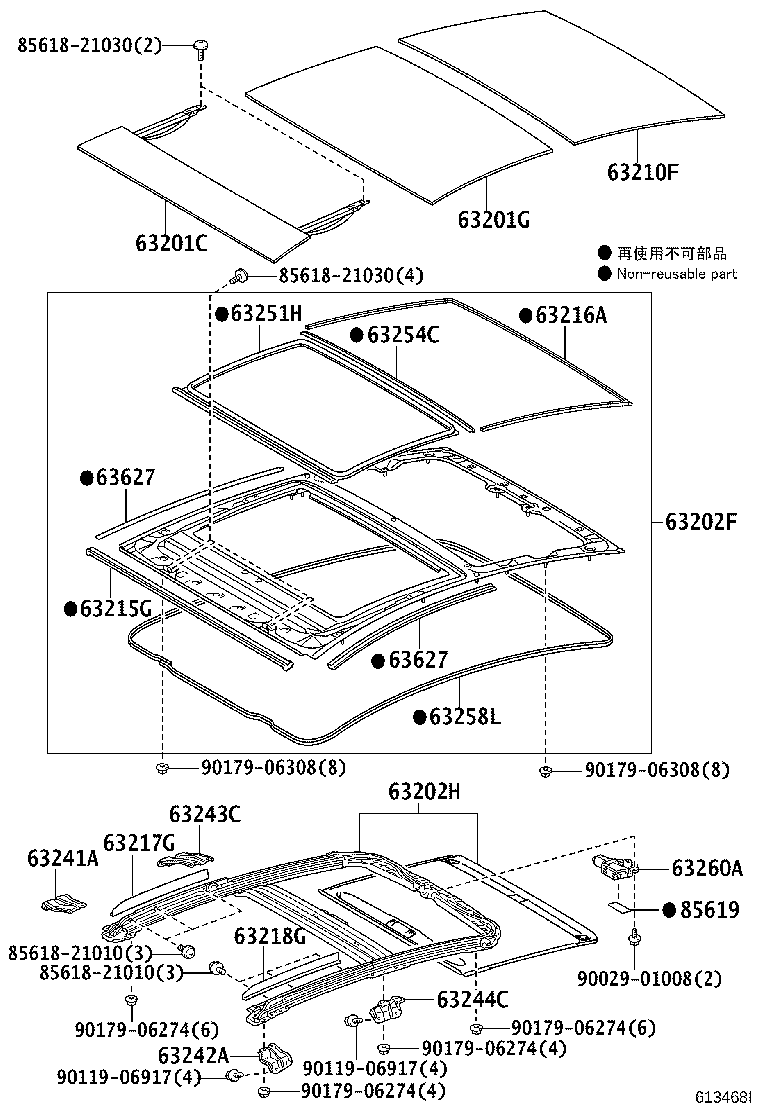

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63201C — Glass Sub-assy, Tilt Roof | ||||
| 63201-47010 note |
Glass Sub-assy, Tilt Roof
2009-04 → 2011-12
ended
|
ZVW30 G,S | — | |
| 63201-47010 note |
Glass Sub-assy, Tilt Roof
2011-12 → —
|
ZVW30 G,S | — | |
| 63201G — Glass Sub-assy, Sliding Roof | ||||
| 63201-47020 note |
Glass Sub-assy, Sliding Roof
2009-04 → 2011-07
ended
|
ZVW30 G,S | — | |
| 63201-47021 note |
Glass Sub-assy, Sliding Roof
2011-08 → 2011-12
ended
|
ZVW30 G,S | — | |
| 63201-47021 note |
Glass Sub-assy, Sliding Roof
2011-12 → —
|
ZVW30 G,S | — | |
| 63202F — Panel Sub-assy, Slide Roof, Rear | ||||
| 63202-47020 note |
Panel Sub-assy, Slide Roof, Rear
2009-04 → 2011-12
ended
|
ZVW30 G,S | — | |
| 63202-47020 note |
Panel Sub-assy, Slide Roof, Rear
2011-12 → —
|
ZVW30 G,S | — | |
| 63202H — Rail Sub-assy, Slide Roof | ||||
| 63202-47010-B0 note |
Rail Sub-assy, Slide Roof
2009-04 → 2011-12
ended
|
ZVW30 G,S | — | |
| 63202-47010-B0 note |
Rail Sub-assy, Slide Roof
2011-12 → 2015-11
ended
|
ZVW30 G,S | — | |
| 63210F — Glass Assy, Moon Roof | ||||
| 63210-47010 note |
Glass Assy, Moon Roof
2009-04 → 2010-03
ended
|
ZVW30 G,S | — | |
| 63210-47011 note |
Glass Assy, Moon Roof
2010-04 → 2010-11
ended
|
ZVW30 G,S | — | |
| 63210-47012 note |
Glass Assy, Moon Roof
2010-12 → 2011-12
ended
|
ZVW30 G,S | — | |
| 63210-47012 note |
Glass Assy, Moon Roof
2011-12 → —
|
ZVW30 G,S | — | |
| 63215G — Moulding, Moon Roof, Front | ||||
| 63215-47010 note |
Moulding, Moon Roof, Front
2009-04 → 2011-12
ended
|
ZVW30 G,S | — | |
| 63215-47010 note |
Moulding, Moon Roof, Front
2011-12 → —
|
ZVW30 G,S | — | |
| 63216A — Moulding, Moon Roof, Rear | ||||
| 63216-47010 note |
Moulding, Moon Roof, Rear
2009-04 → 2011-12
ended
|
ZVW30 G,S | — | |
| 63216-47010 note |
Moulding, Moon Roof, Rear
2011-12 → —
|
ZVW30 G,S | — | |
| 63217G — Garnish, Sliding Roof Side, RH | ||||
| 63217-47010 note |
Garnish, Sliding Roof Side, RH
2009-04 → 2011-12
ended
|
ZVW30 G,S | — | |
| 63217-47010 note |
Garnish, Sliding Roof Side, RH
2011-12 → —
|
ZVW30 G,S | — | |
| 63218G — Garnish, Sliding Roof Side, LH | ||||
| 63218-47010 note |
Garnish, Sliding Roof Side, LH
2009-04 → 2011-12
ended
|
ZVW30 G,S | — | |
| 63218-47010 note |
Garnish, Sliding Roof Side, LH
2011-12 → —
|
ZVW30 G,S | — | |
| 63241A — Bracket, Sliding Roof Housing Front Mounting, RH | ||||
| 63241-47010 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2009-04 → 2011-12
ended
|
ZVW30 G,S | — | |
| 63241-47010 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2011-12 → —
|
ZVW30 G,S | — | |
| 63242A — Bracket, Sliding Roof Housing Front Mounting, LH | ||||
| 63242-47010 note |
Bracket, Sliding Roof Housing Front Mounting, LH
2009-04 → 2011-12
ended
|
ZVW30 G,S | — | |
| 63242-47010 note |
Bracket, Sliding Roof Housing Front Mounting, LH
2011-12 → —
|
ZVW30 G,S | — | |
| 63243C — Bracket, Sliding Roof Housing Center Mounting, RH | ||||
| 63243-47010 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2009-04 → 2011-12
ended
|
ZVW30 G,S | — | |
| 63243-47010 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2011-12 → —
|
ZVW30 G,S | — | |
| 63244C — Bracket, Sliding Roof Housing Center Mounting, LH | ||||
| 63244-47010 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2009-04 → 2011-12
ended
|
ZVW30 G,S | — | |
| 63244-47010 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2011-12 → —
|
ZVW30 G,S | — | |
| 63251H — Weatherstrip, Sliding Roof | ||||
| 63251-47010 note |
Weatherstrip, Sliding Roof
2009-04 → 2011-12
ended
|
ZVW30 G,S | — | |
| 63251-47010 note |
Weatherstrip, Sliding Roof
2011-12 → —
|
ZVW30 G,S | — | |
| 63254C — Weatherstrip, Slide Roof, Rear | ||||
| 63254-47010 note |
Weatherstrip, Slide Roof, Rear
2009-04 → 2011-12
ended
|
ZVW30 G,S | — | |
| 63254-47010 note |
Weatherstrip, Slide Roof, Rear
2011-12 → —
|
ZVW30 G,S | — | |
| 63258L — Seal, Sliding Roof Glass | ||||
| 63258-47010 note |
Seal, Sliding Roof Glass
2009-04 → 2011-12
ended
|
ZVW30 G,S | — | |
| 63258-47010 note |
Seal, Sliding Roof Glass
2011-12 → —
|
ZVW30 G,S | — | |
| 63260A — Gear Sub-assy, Sliding Roof Drive | ||||
| 63260-47010 note |
Gear Sub-assy, Sliding Roof Drive
2009-04 → 2011-12
ended
|
ZVW30 G,S | — | |
| 63260-47010 note |
Gear Sub-assy, Sliding Roof Drive
2011-12 → —
|
ZVW30 G,S | — | |
| 63627 — Weatherstrip, Removable Roof, RH | ||||
| 63627-47010 note |
Weatherstrip, Removable Roof, RH
2009-04 → 2011-12
ended
|
ZVW30 G,S | — | |
| 63627-47010 note |
Weatherstrip, Removable Roof, RH
2011-12 → —
|
ZVW30 G,S | — | |
| 85619 — Cushion, Slide Roof Motor | ||||
| 85619-47010 note |
Cushion, Slide Roof Motor
2009-12 → 2011-12
ended
|
ZVW30 G,S | — | |
| 85619-47010 note |
Cushion, Slide Roof Motor
2011-12 → —
|
ZVW30 G,S | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
