Factory parts data · Europe

Toyota Prius

2009-04 → 2015-11 · chassis ZVW30 · catalogue 222430 · United States

Supported model Data version 2016-05

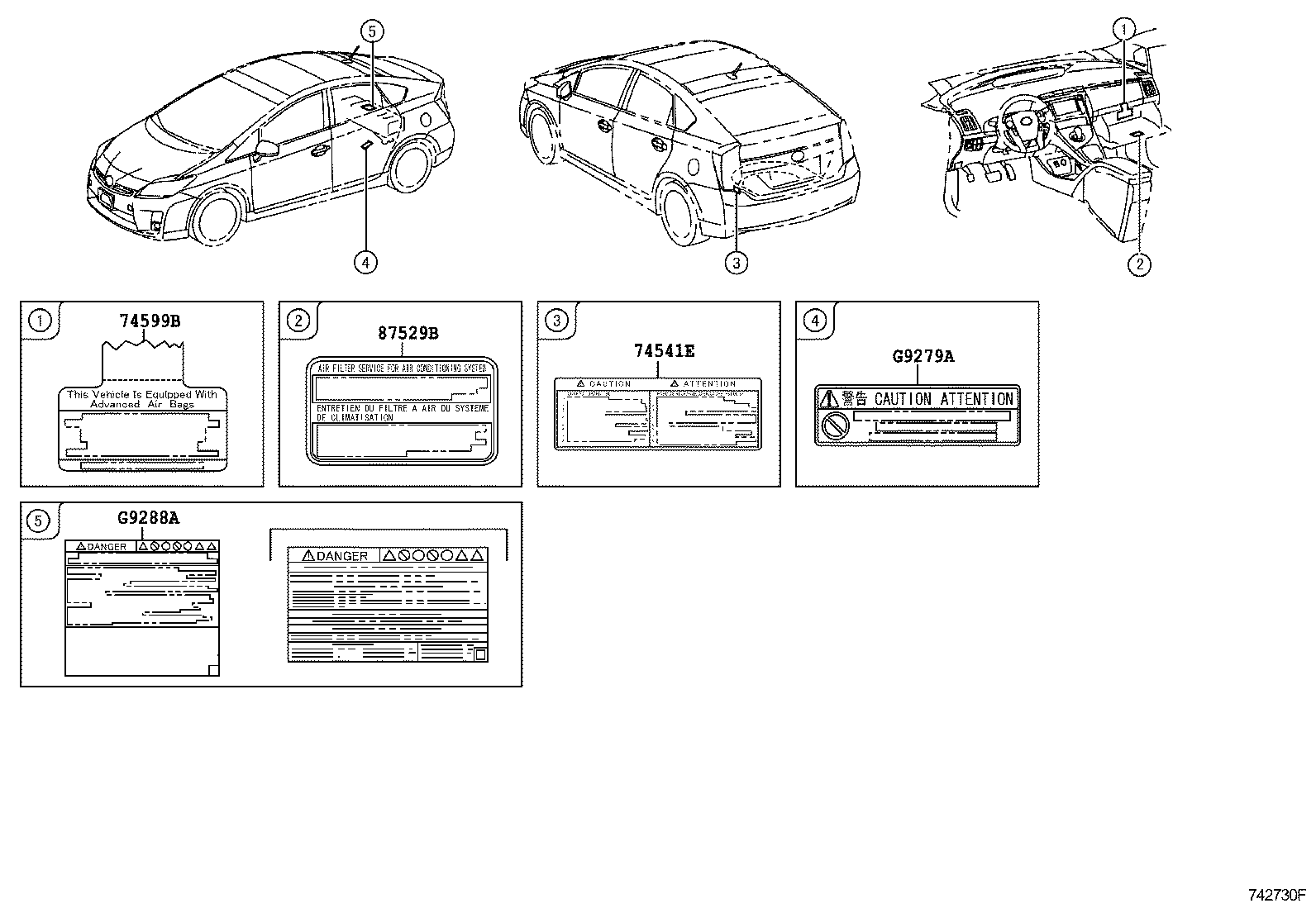

17 parts on this figure
Part number Description Fitment Price
74541E — Plate, Compact Spare Tire Caution
42668-14010 Plate, Compact Spare Tire Caution
2009-04 → 2011-12 ended
ZVW30 —
42668-14010 Plate, Compact Spare Tire Caution
2011-12 → 2014-04 ended
ZVW30 —
42668-14010 note Plate, Compact Spare Tire Caution
2011-12 → 2014-04 ended
ZVW30 (G,S) USA —
42668-28090 Plate, Compact Spare Tire Caution
2014-05 → —
ZVW30 —
42668-28090 note Plate, Compact Spare Tire Caution
2014-05 → —
ZVW30 (G,S) USA —
74599B — Label, Driver & Passenger Airbag Information
74599-48020 Label, Driver & Passenger Airbag Information
2009-04 → 2011-12 ended
ZVW30 USA —
74599-48020 Label, Driver & Passenger Airbag Information
2011-12 → —
ZVW30 USA —
87529B — Label, A/C Filter Information
87529-50010 Label, A/C Filter Information
2009-04 → 2010-03 ended
ZVW30 —
G9279A — Label, Battery Caution,NO.4
G9279-47040 Label, Battery Caution,NO.4
2009-04 → 2010-11 ended
ZVW30 —
G9288A — Label, Battery Carging Notice
G9288-47060 Label, Battery Carging Notice
2009-04 → 2011-12 ended
ZVW30 CND —
G9288-47080 Label, Battery Carging Notice
2009-04 → 2011-12 ended
ZVW30 USA —
G9288-47100 note Label, Battery Carging Notice
2009-04 → 2011-12 ended
ZVW30 S USA —
G9288-47100 note Label, Battery Carging Notice
2009-04 → 2011-12 ended
ZVW30 S USA —
G9288-47060 Label, Battery Carging Notice
2011-12 → 2015-11 ended
ZVW30 CND —
G9288-47080 Label, Battery Carging Notice
2011-12 → 2015-11 ended
ZVW30 USA —
G9288-47100 note Label, Battery Carging Notice
2011-12 → 2015-11 ended
ZVW30 (G,S) USA —
G9288-47100 note Label, Battery Carging Notice
2011-12 → 2015-11 ended
ZVW30 (G,S) USA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
