Toyota Prius
2009-04 → 2015-11 · chassis ZVW30 · catalogue 222430 · United States
Supported model
Data version 2016-05

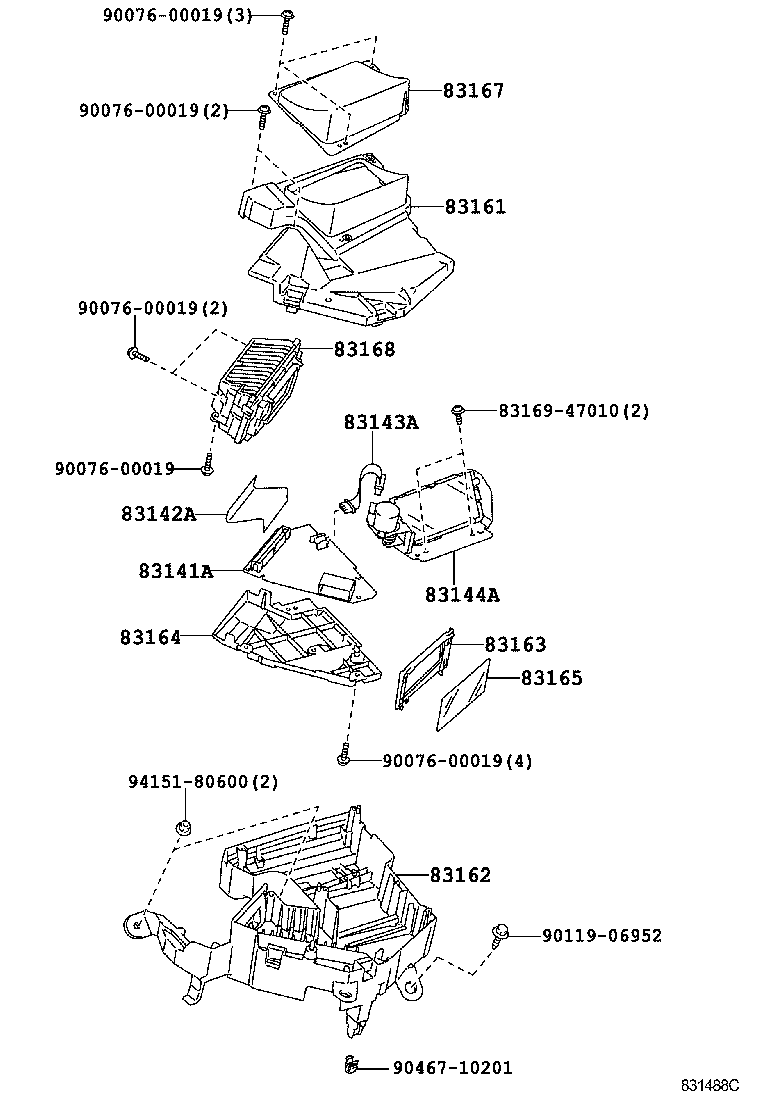

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83141A — Computer, Combination Meter Mirror | ||||
| 83141-47020 note |
Computer, Combination Meter Mirror
2011-12 → —
|
ZVW30 G | — | |
| 83142A — Wire, Combination Meter | ||||
| 83142-47010 note |
Wire, Combination Meter
2011-12 → —
|
ZVW30 G | — | |
| 83143A — Wire, Combination Meter Mirror, NO.2 | ||||
| 83143-47010 note |
Wire, Combination Meter Mirror, NO.2
2011-12 → —
|
ZVW30 G | — | |
| 83144A — Mirror, Combination Meter | ||||
| 83144-47020 note |
Mirror, Combination Meter
2011-12 → —
|
ZVW30 G | — | |
| 83161 — Case, Combination Meter Mirror, NO.1 | ||||
| 83161-47020 note |
Case, Combination Meter Mirror, NO.1
2011-12 → —
|
ZVW30 G | — | |
| 83162 — Case, Combination Meter Mirror, NO.2 | ||||
| 83162-47020 note |
Case, Combination Meter Mirror, NO.2
2011-12 → —
|
ZVW30 G | — | |
| 83163 — Plate, Combination Meter Mirror, NO.1 | ||||
| 83163-47020 note |
Plate, Combination Meter Mirror, NO.1
2011-12 → —
|
ZVW30 G | — | |
| 83164 — Plate, Combination Meter Mirror, NO.2 | ||||
| 83164-47020 note |
Plate, Combination Meter Mirror, NO.2
2011-12 → —
|
ZVW30 G | — | |
| 83165 — Mirror, Combination Meter, NO.2 | ||||
| 83165-47010 note |
Mirror, Combination Meter, NO.2
2011-12 → —
|
ZVW30 G | — | |
| 83167 — Glass, Combination Meter Mirror | ||||
| 83167-47020 note |
Glass, Combination Meter Mirror
2011-12 → —
|
ZVW30 G | — | |
| 83168 — Display, Combination | ||||
| 83168-47020 note |
Display, Combination
2011-12 → —
|
ZVW30 G | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
