Toyota Prius
2009-04 → 2015-11 · chassis ZVW30 · catalogue 222430 · United States
Supported model
Data version 2016-05

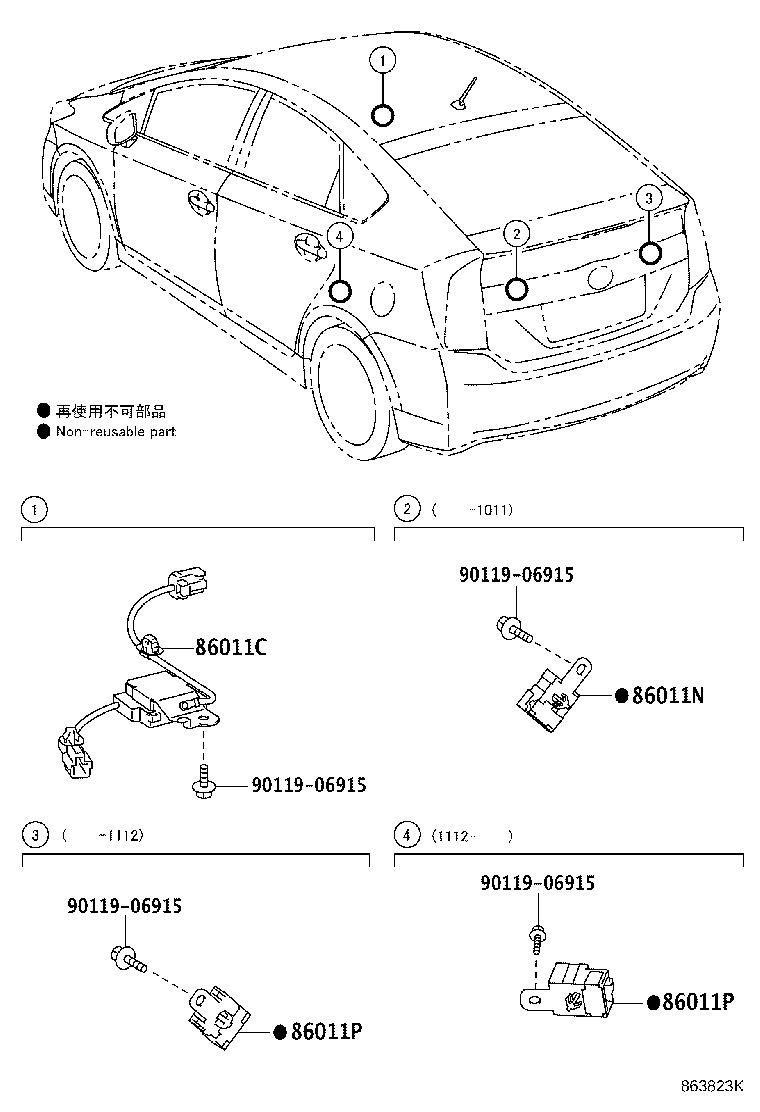

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86011C — Filter, Noise | ||||
| 863B0-47010 note |
Filter, Noise
2009-04 → 2010-03
ended
|
ZVW30 G,S | — | |
| 863B0-47020 note |
Filter, Noise
2010-03 → 2011-12
ended
|
ZVW30 G,S | — | |
| 863B0-47020 note |
Filter, Noise
2011-12 → —
|
ZVW30 G,S | — | |
| 86011N — Filter, Noise | ||||
| 90980-04189 |
Filter, Noise
2009-04 → 2011-12
ended
|
ZVW30 | — | |
| 86011P — Filter, Noise | ||||
| 90980-04189 |
Filter, Noise
2009-04 → 2011-12
ended
|
ZVW30 | — | |
| 90980-04189 |
Filter, Noise
2011-12 → 2015-11
ended
|
ZVW30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
