Toyota Prius

2009-04 → 2015-11 · chassis ZVW30 · catalogue 222430 · United States

Supported model Data version 2016-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

7 part groups · 2 illustrations

Illustrations

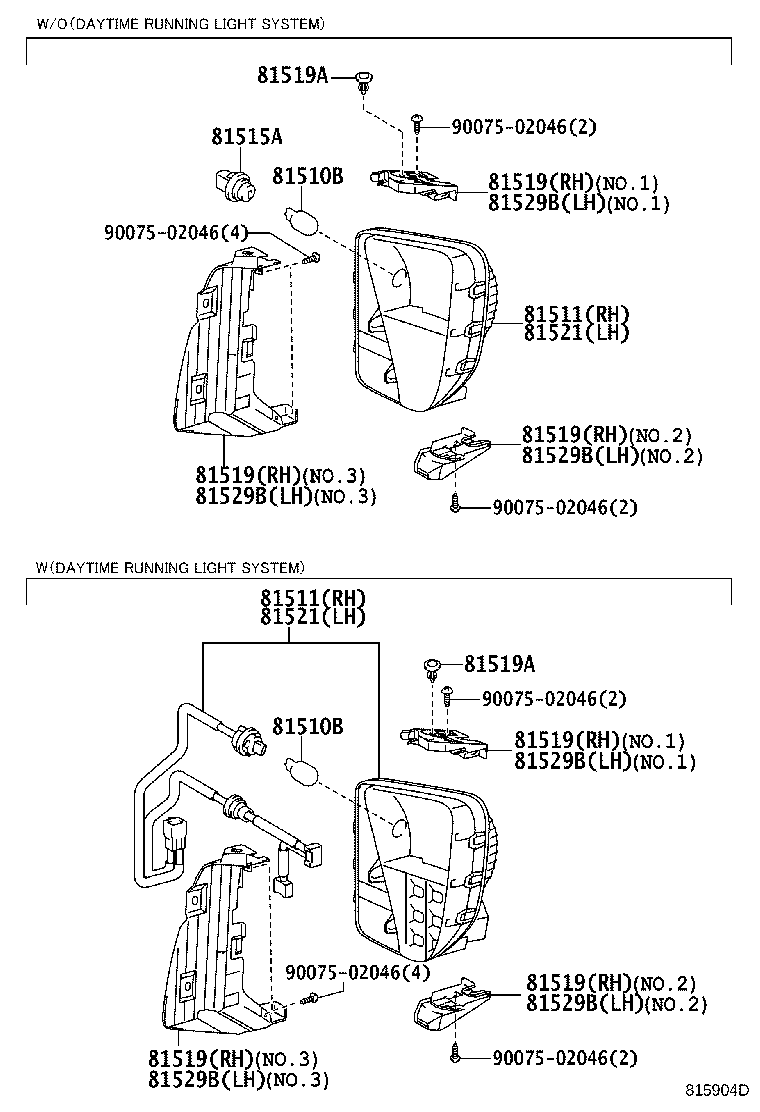

Figure 815032A 815032A 2009-04 → 2011-12 Figure 815904D 815904D 2011-12 → —

Part groups

PNCDescription
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511 Lens, Front Turn Signal Lamp, RH
81515A Plug Assy, Front Turn Signal Lamp
81519 Bracket, Front Turn Signal Lamp, RH
81519A Clip
81521 Lens, Front Turn Signal Lamp, LH
81529B Bracket, Front Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
