Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222440 · United States

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

26 part groups · 3 illustrations

Illustrations

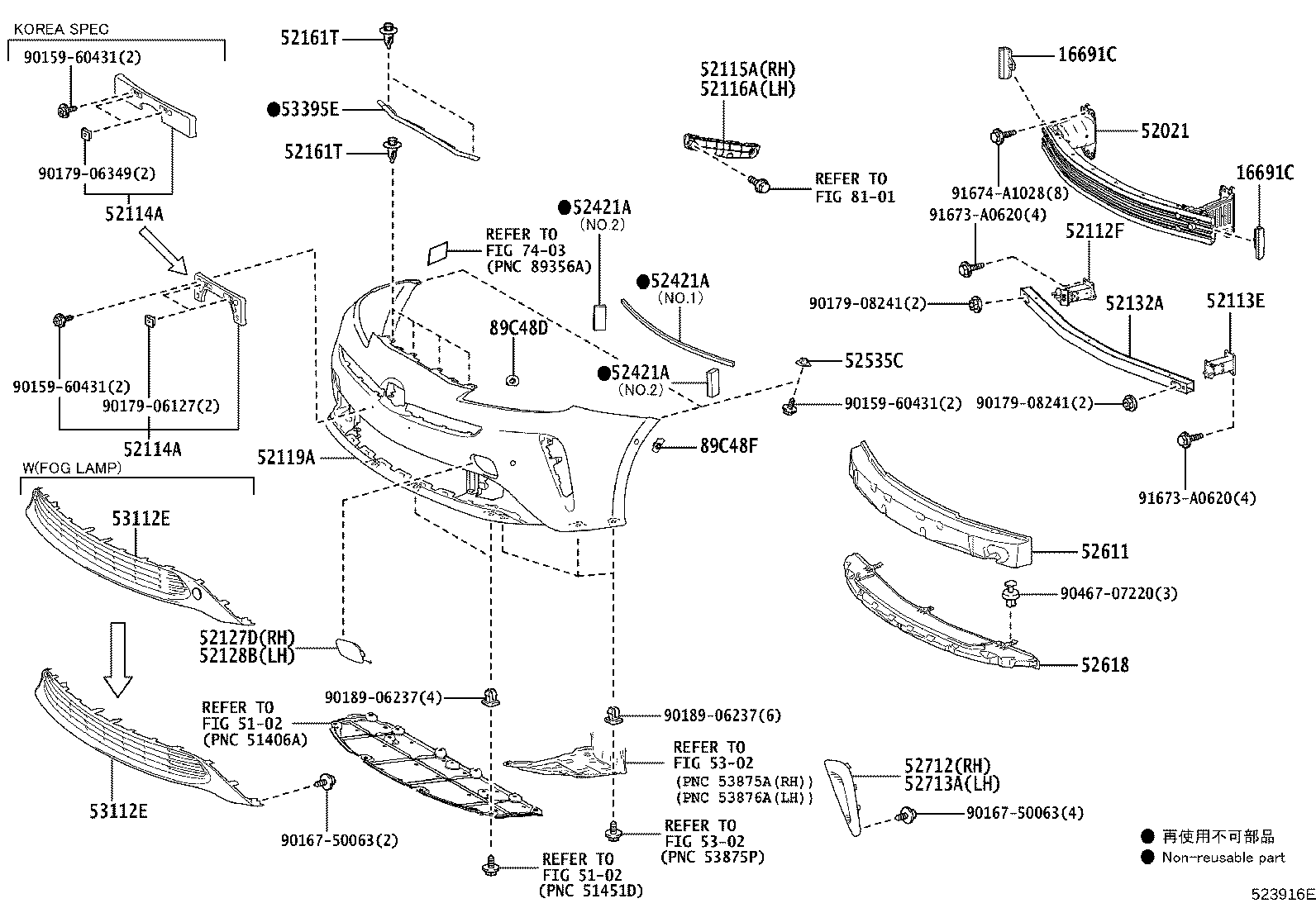

Figure 523300E 523300E 2015-11 → 2018-12 Figure 523297E 523297E 2015-11 → 2018-12 Figure 523916E 523916E 2018-12 → —

Part groups

PNCDescription
16691C Plate, Radiator Side Air Guide, Front
52021 Reinforcement Sub-assy, Front Bumper
52112D Extension, Front Bumper, RH
52112F Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52113E Extension, Front Bumper, LH
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52132A Reinforcement, Front Bumper, NO.2
52135J Reinforcement, Front Energy Absorber Mounting, RH
52136H Reinforcement, Front Energy Absorber Mounting, LH
52161T Piece, Front Bumper
52421A Pad, Front Bumper
52535C Retainer, Front Bumper Side
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53112E Grille, Radiator, Lower NO.1
53395E Seal, Hood TO Front End Panel
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48F Retainer, Ultrasonic Sensor, Front Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
