Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222440 · United States
Supported model
Data version 2023-11
Rear Combination Lamp

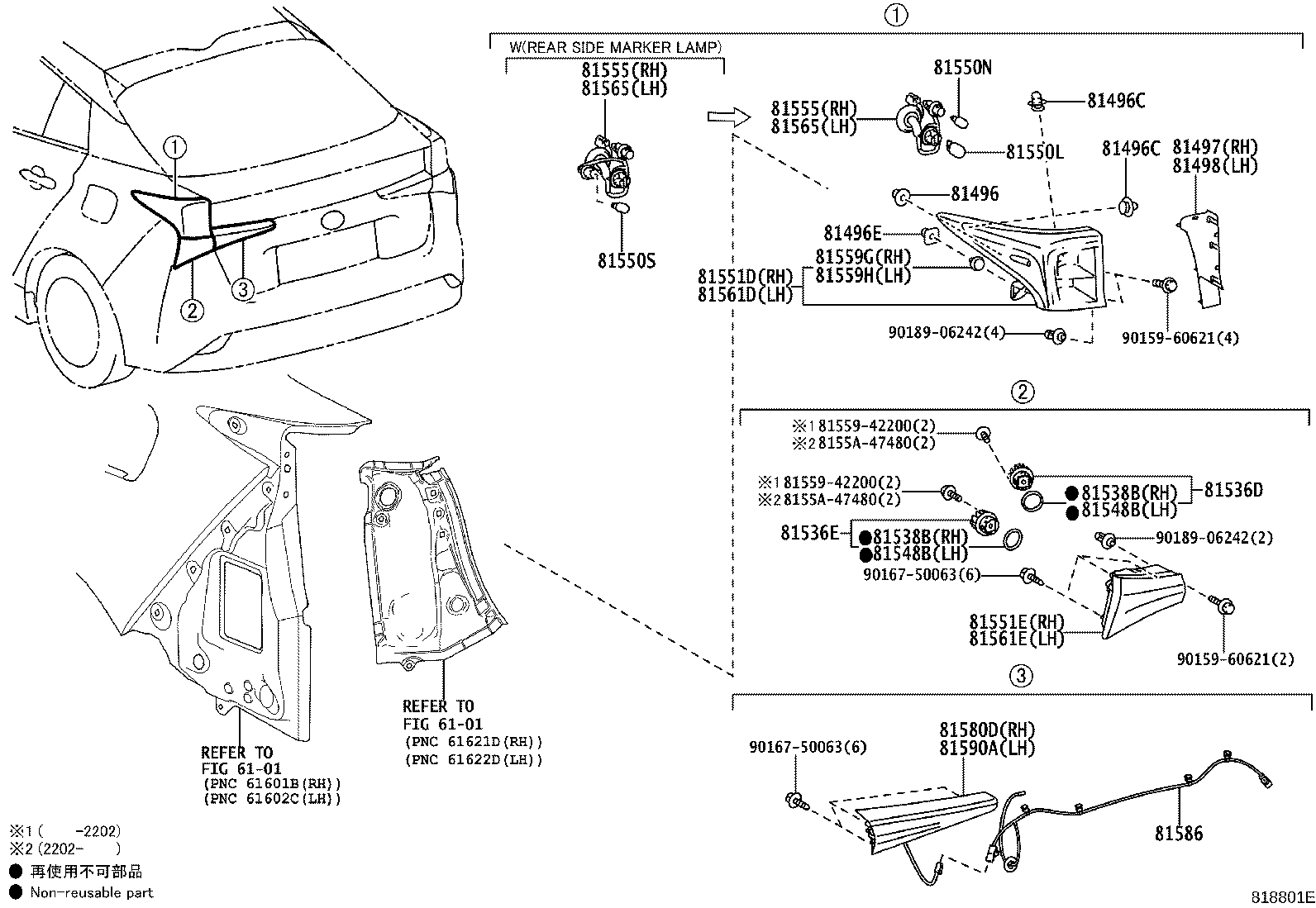

25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81496C | Guide, Rear Combination Lamp, NO.2 |
| 81496E | Guide, Rear Combination Lamp, NO.3 |
| 81497 | Cover, Rear Combination Lamp, RH |
| 81498 | Cover, Rear Combination Lamp, LH |
| 81536D | Led, Taillamp |
| 81536E | Led, Stop Lamp |
| 81538B | Gasket, Rear Combination Lamp, NO.3 RH |
| 81548B | Gasket, Rear Combination Lamp, NO.3 LH |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81550S | Bulb, Rear Side Marker Lamp |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81551E | Lens & Body, Rear Combination Lamp, NO.2 RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81559G | Clip, RR Combination Lamp, RH |
| 81559H | Clip, RR Combination Lamp, LH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81561E | Lens & Body, Rear Combination Lamp, NO.2 LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81580D | Lamp Assy, Rear, RH |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81586 | Cord, Rear Lamp |
| 81590A | Lamp Assy, Rear, LH |
| 81591B | Lens And Body, Rear Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
