Toyota Prius

2022-12 → present · chassis MXWH6# · catalogue 222450 · United States

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

14 part groups · 2 illustrations

Illustrations

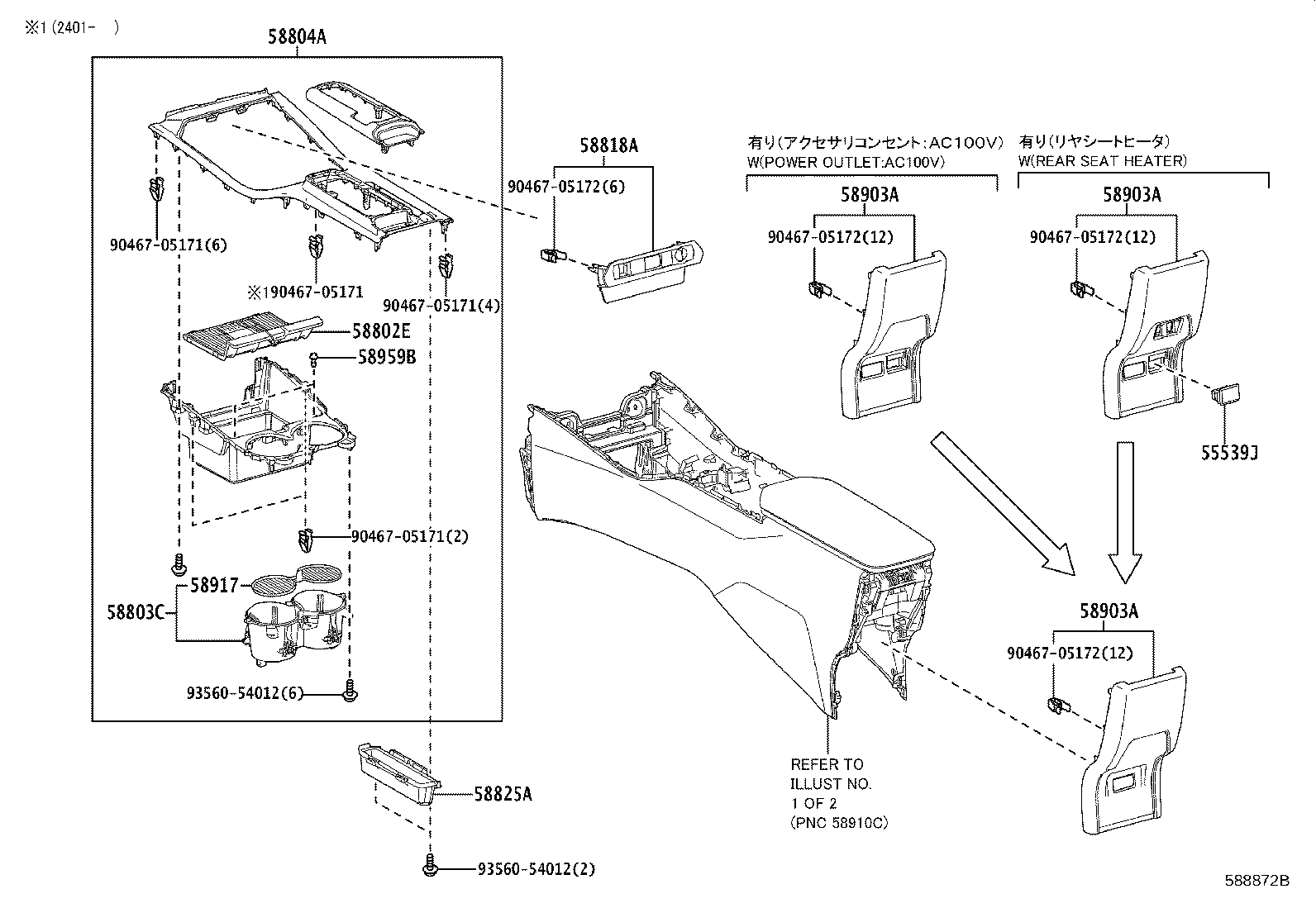

Figure 588871A 588871A 2022-12 → — Figure 588872C 588872C 2022-12 → —

Part groups

PNCDescription
55539J Cover, Spare Switch Hole
58802E Box Sub-assy, Console, Front
58803C Box Sub-assy, Console Cup Holder
58804A Panel Sub-assy, Console, Upper
58815A Carpet, Console Box
58816D Insert, Console Box, Front NO.1
58817A Insert, Console Box, Front NO.2
58818A Cover, Console Box, FR
58825A Pocket, Console Box
58903A Panel Sub-assy, Console Rear End
58906 Door Sub-assy, Upper Console
58910C Box Assy, Console, Rear
58917 Mat, Box Bottom, NO.2
58959B Cushion, Console Compartment Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
