Toyota Prius
2022-12 → present · chassis MXWH6# · catalogue 222450 · United States
Supported model
Data version 2023-03

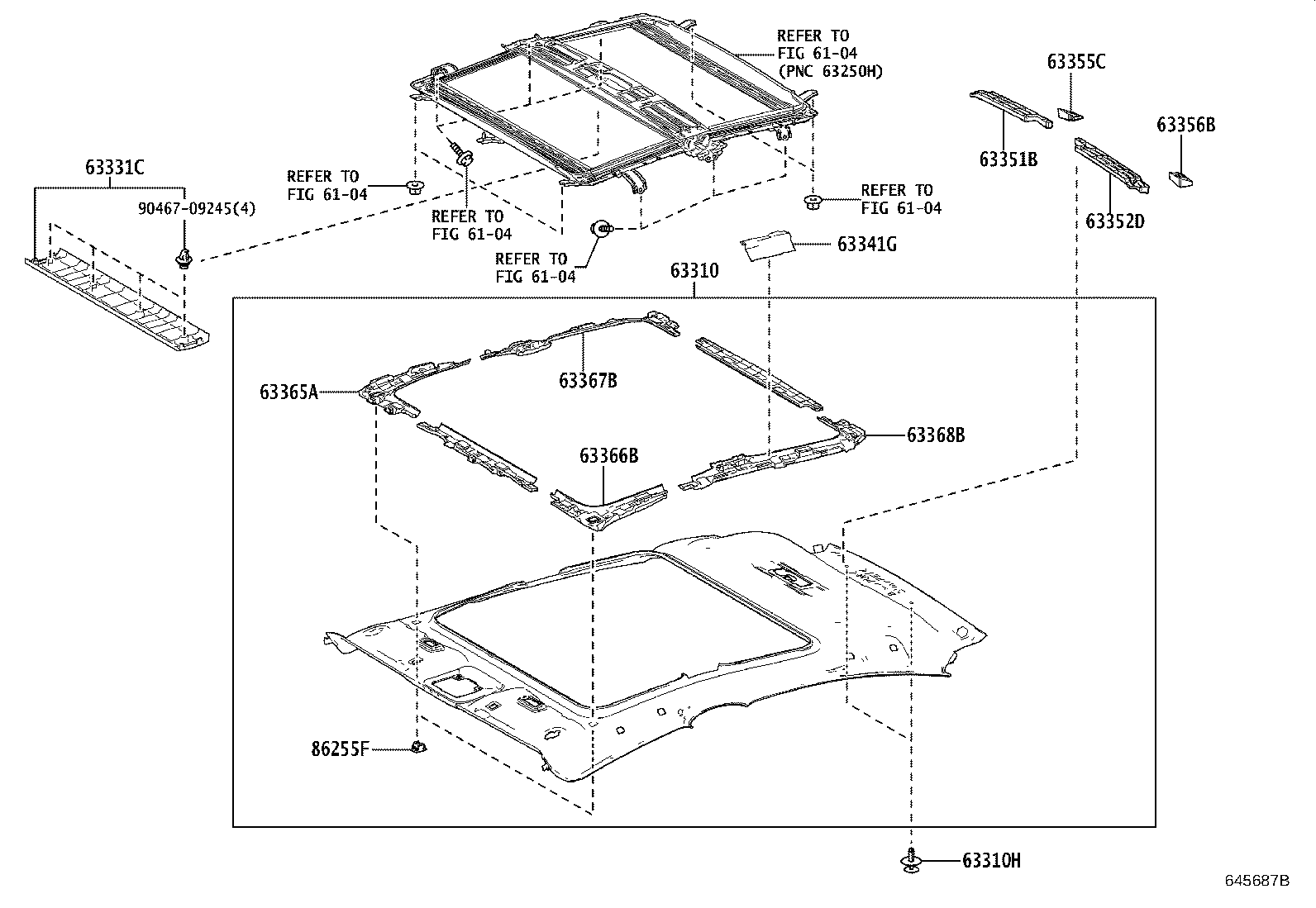

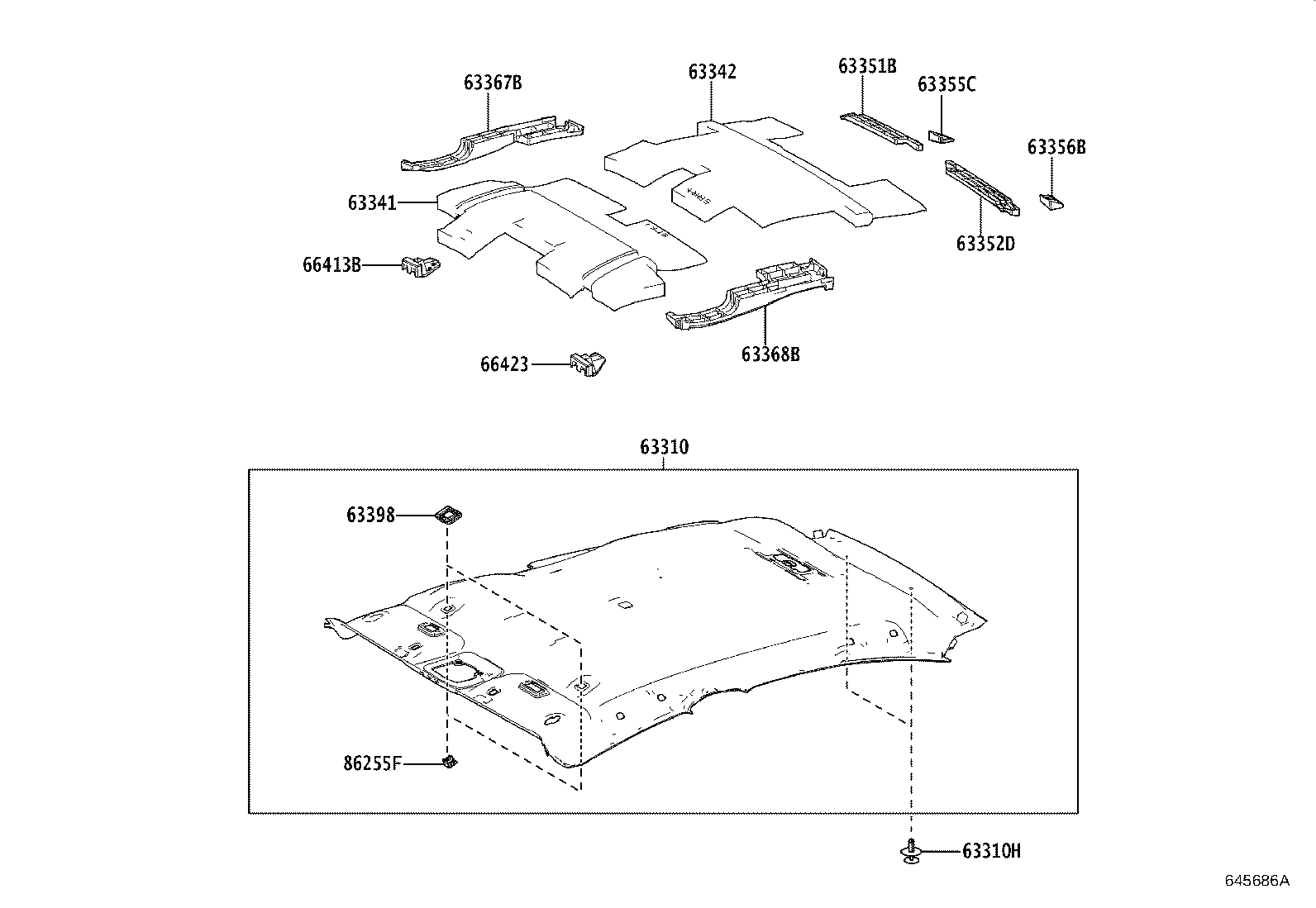

Roof Headlining & Silencer Pad
18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63310 | Headlining Assy, Roof |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63331C | Protector, Roof Center Reinforcement |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63341G | Pad, Roof Silencer |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63351B | Pad, Roof Headlining |
| 63352D | Pad, Roof Headlining, NO.2 |
| 63355C | Pad, Roof Headlining, RH |
| 63356B | Pad, Roof Headlining, LH |
| 63365A | Plate, Roof Headlining Set |
| 63366B | Plate, Roof Headlining Set, LH |
| 63367B | Plate, Roof Headlining Set, NO.2 RH |
| 63368B | Plate, Roof Headlining Set, NO.2 LH |
| 63398 | Plate, Roof Headlining Support |
| 66413B | Spacer, Side Rail, Front RH |
| 66423 | Spacer, Side Rail, Front LH |
| 86255F | Case, Microphone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
