Toyota Prius
2022-12 → present · chassis MXWH6# · catalogue 222450 · United States
Supported model
Data version 2023-03

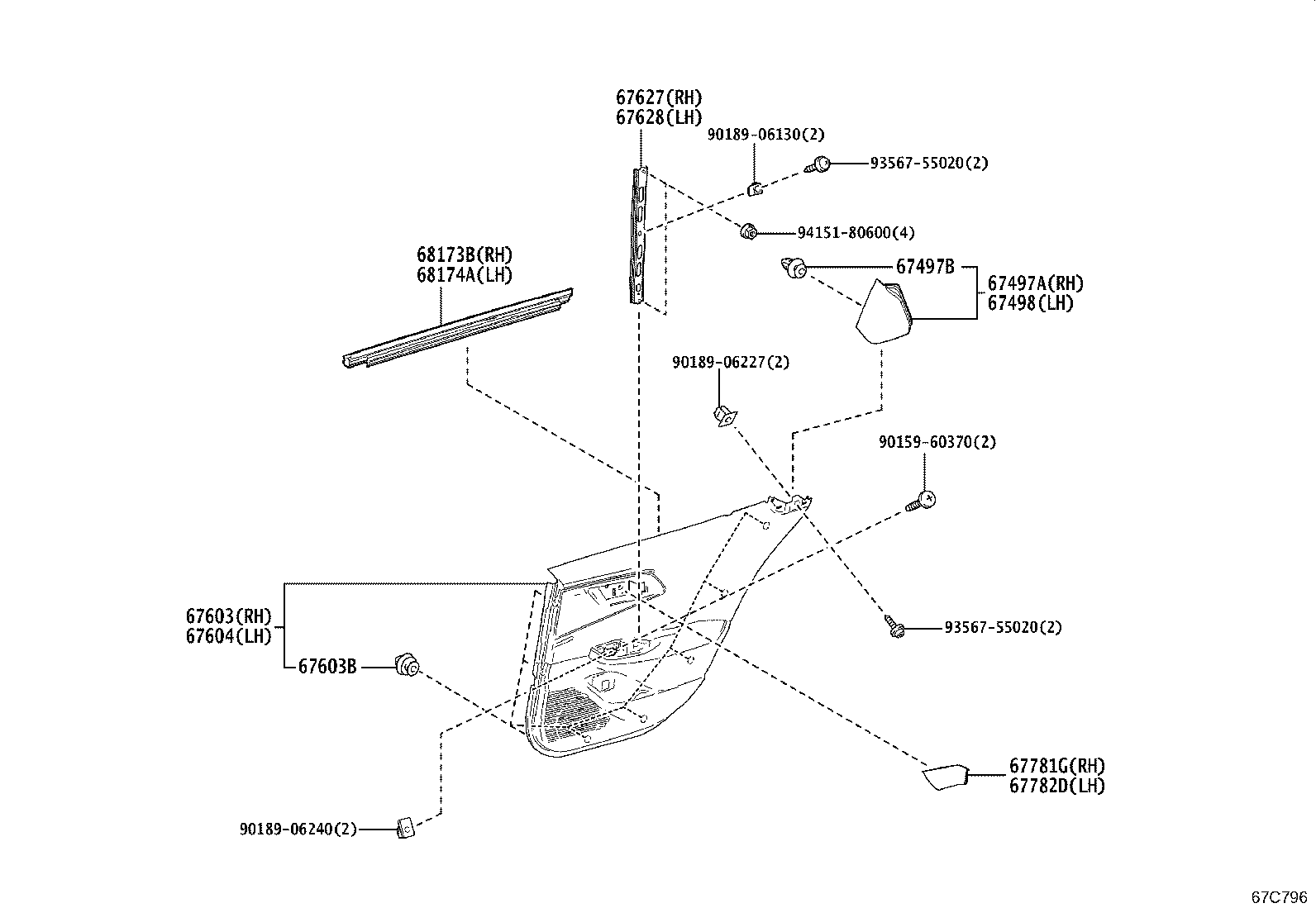

Rear Door Panel & Glass
54 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |
| 67497A | Bracket, Rear Door Rear Frame, RH |
| 67497B | Clip(FOR REAR DOOR REAR FRAME BRACKET) |
| 67498 | Bracket, Rear Door Rear Frame, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67627 | Bracket, Rear Door Trim, RH |
| 67628 | Bracket, Rear Door Trim, LH |
| 67673A | Garnish, Rear Door Frame, RH |
| 67673C | Clip(FOR REAR DOOR FRAME GARNISH) |
| 67674A | Garnish, Rear Door Frame, LH |
| 67781G | Cover, Rear Door Trim, Upper RH |
| 67782D | Cover, Rear Door Trim, Upper LH |
| 67811A | Pad, Rear Door Silencer |
| 67837J | Seal, Door Dust Proof |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67845D | Seal, Rear Door Front Outside, RH |
| 67846A | Seal, Rear Door Front Outside, LH |
| 67847B | Seal, Rear Door Vent, RH NO.1 |
| 67848A | Seal, Rear Door Vent, LH NO.1 |
| 67850 | Protector Assy, Rear Door, Rear RH |
| 67857B | Protector, Rear Door Panel, RH |
| 67858A | Protector, Rear Door Panel, LH |
| 67860 | Protector Assy, Rear Door, Rear LH |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67867S | Retainer, Rear Door Weatherstrip, NO.2, RH |
| 67867T | Retainer, Rear Door Weatherstrip, NO.2, LH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67869N | Clip, Rear Door Weatherstrip, RH |
| 67869P | Clip, Rear Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 67923H | Retainer, Door Corner Seal |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123B | Glass, Rear Door Quarter Window, RH |
| 68124B | Glass, Rear Door Quarter Window, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68198 | Seal, Rear Door Belt, Rear RH |
| 68199 | Seal, Rear Door Belt, Rear LH |
| 68630 | Check Assy, Rear Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
