Toyota Prius

2022-12 → present · chassis MXWH6# · catalogue 222450 · United States

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

122 part groups · 14 illustrations

Illustrations

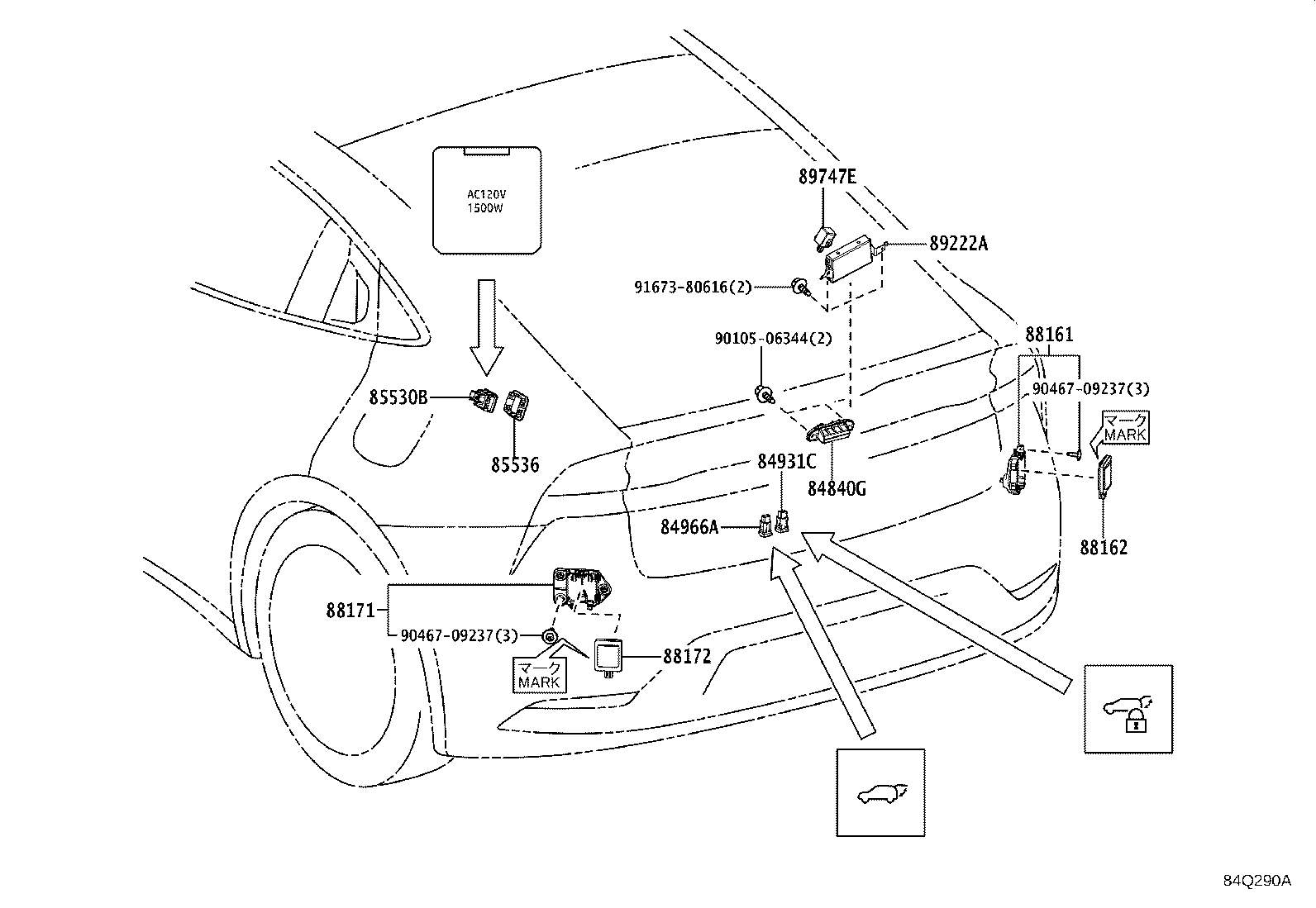

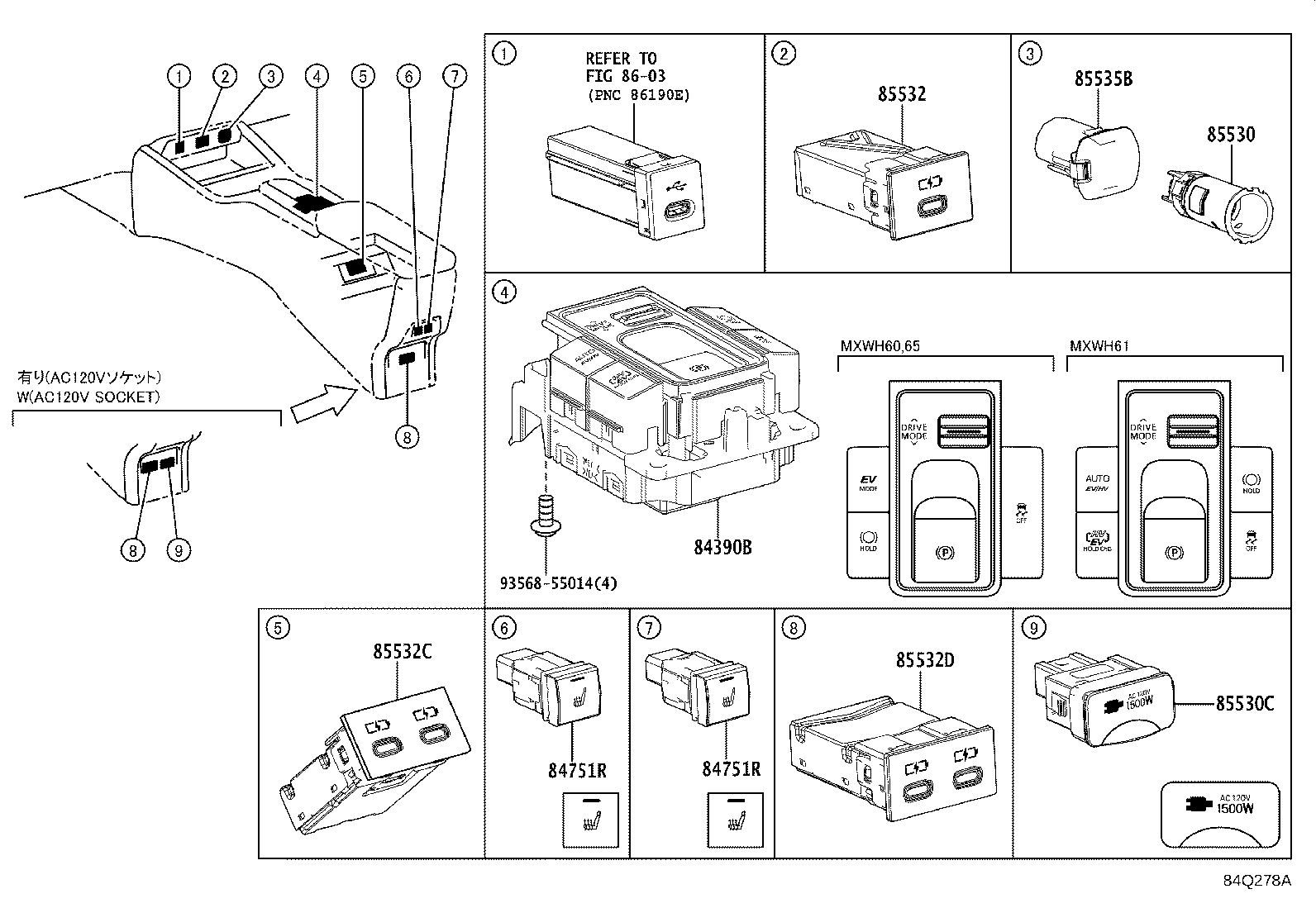

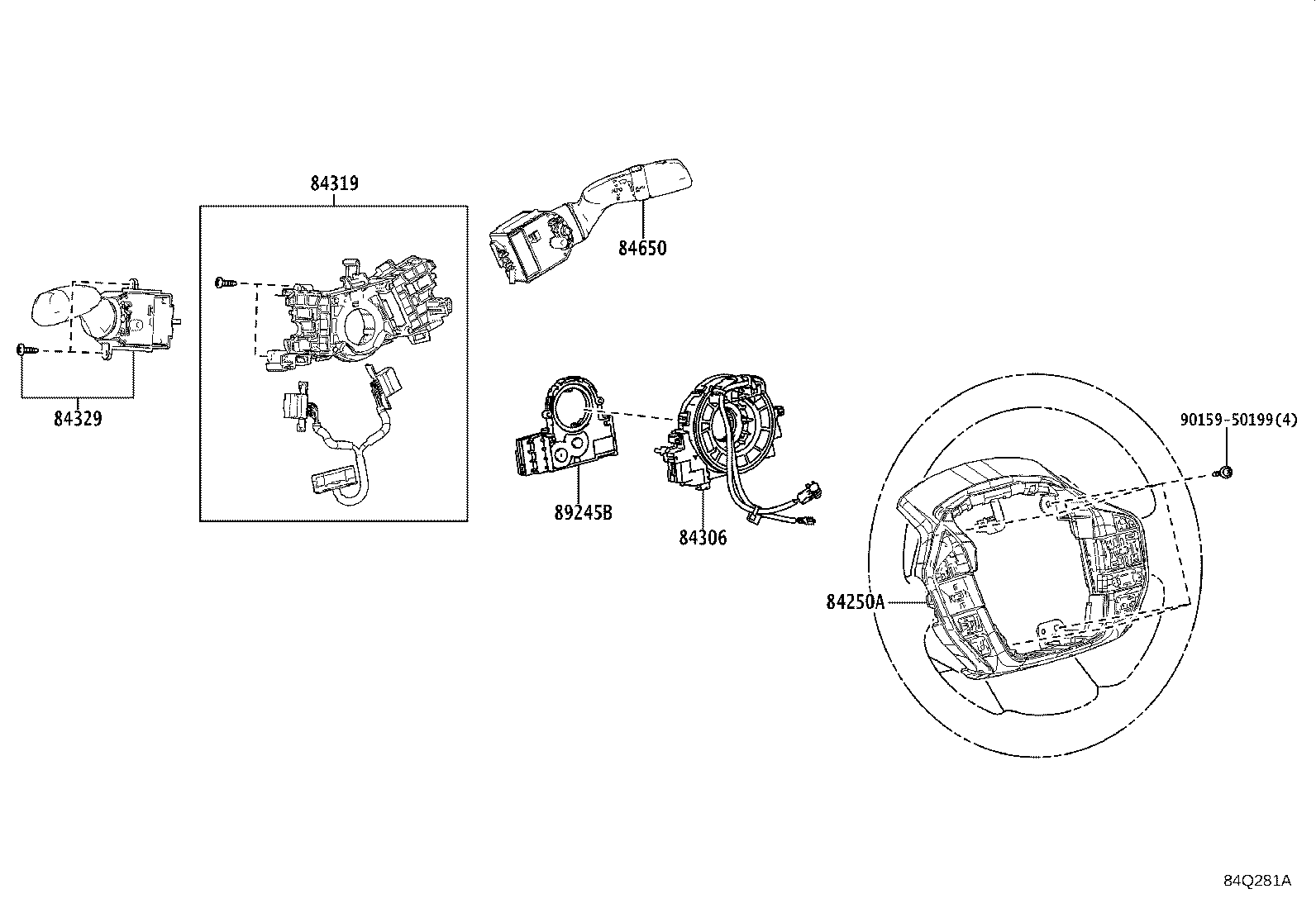

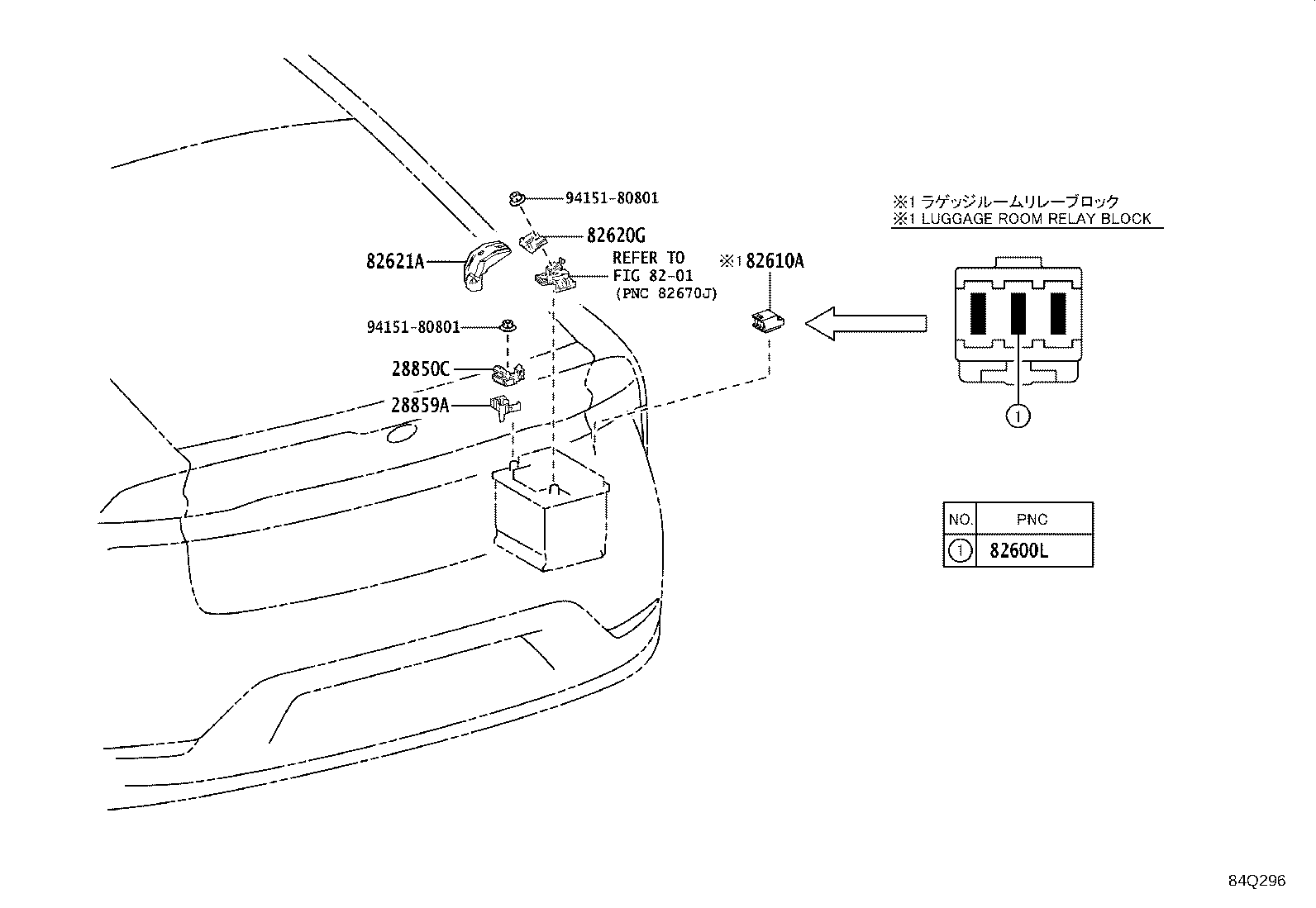

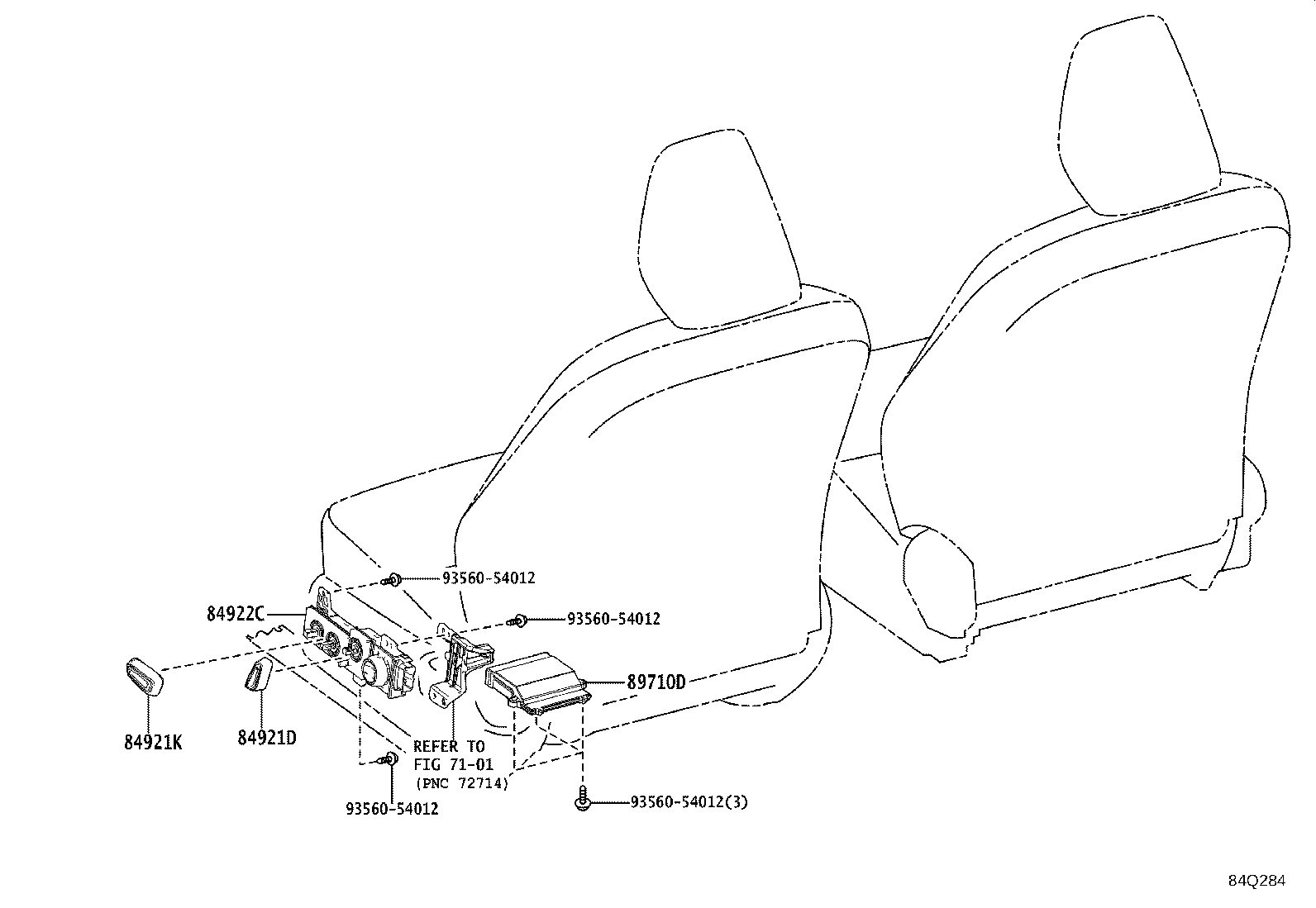

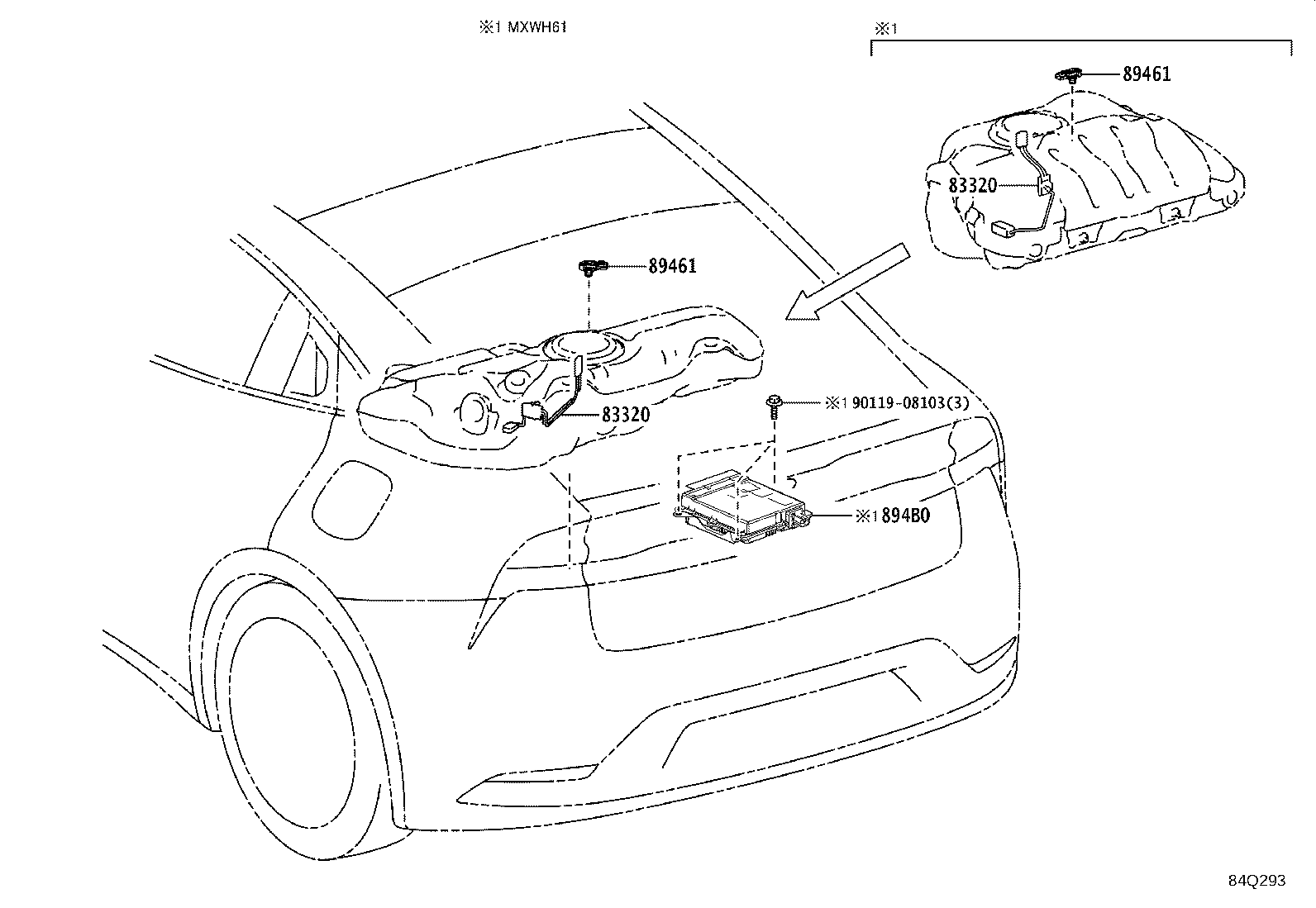

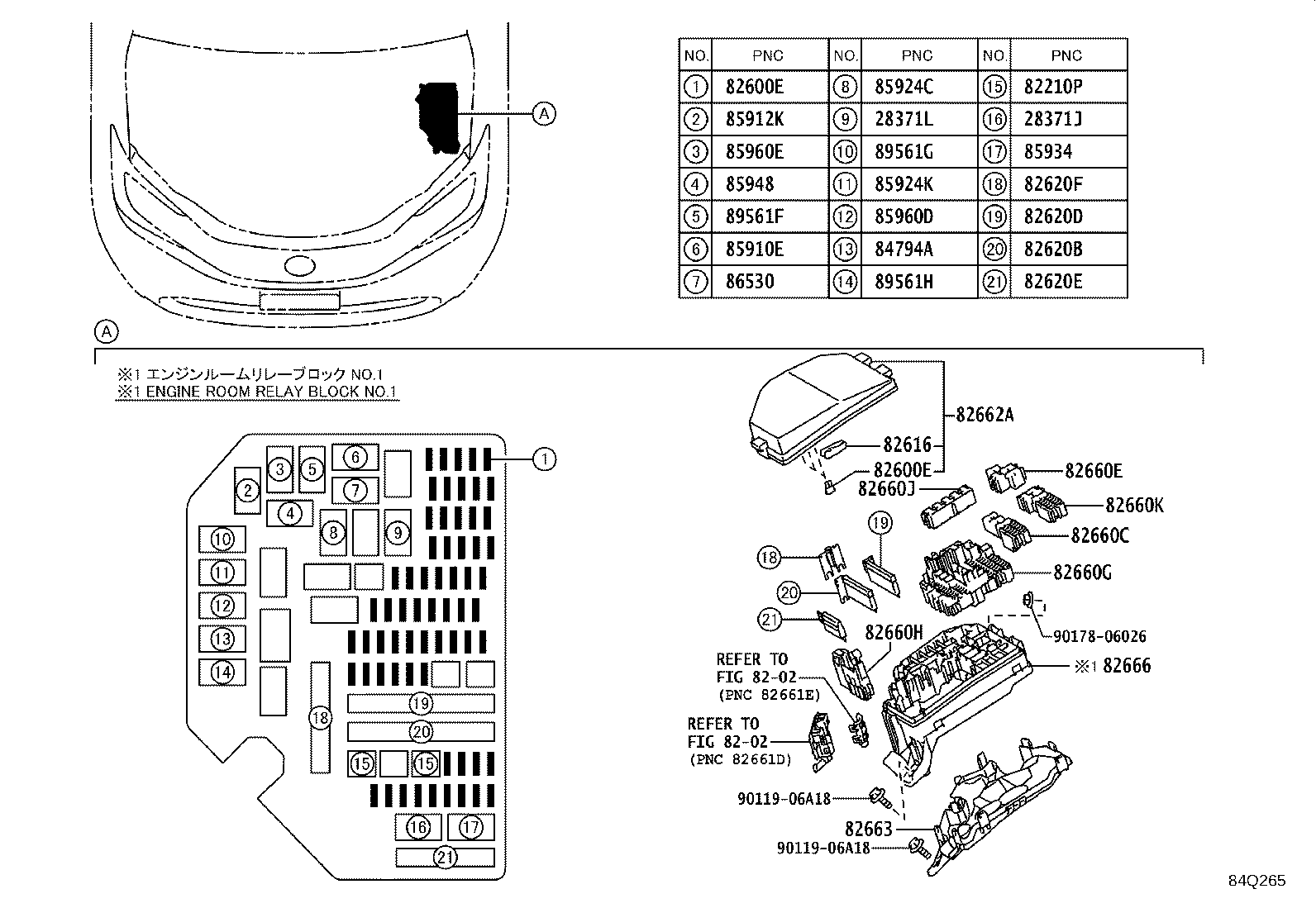

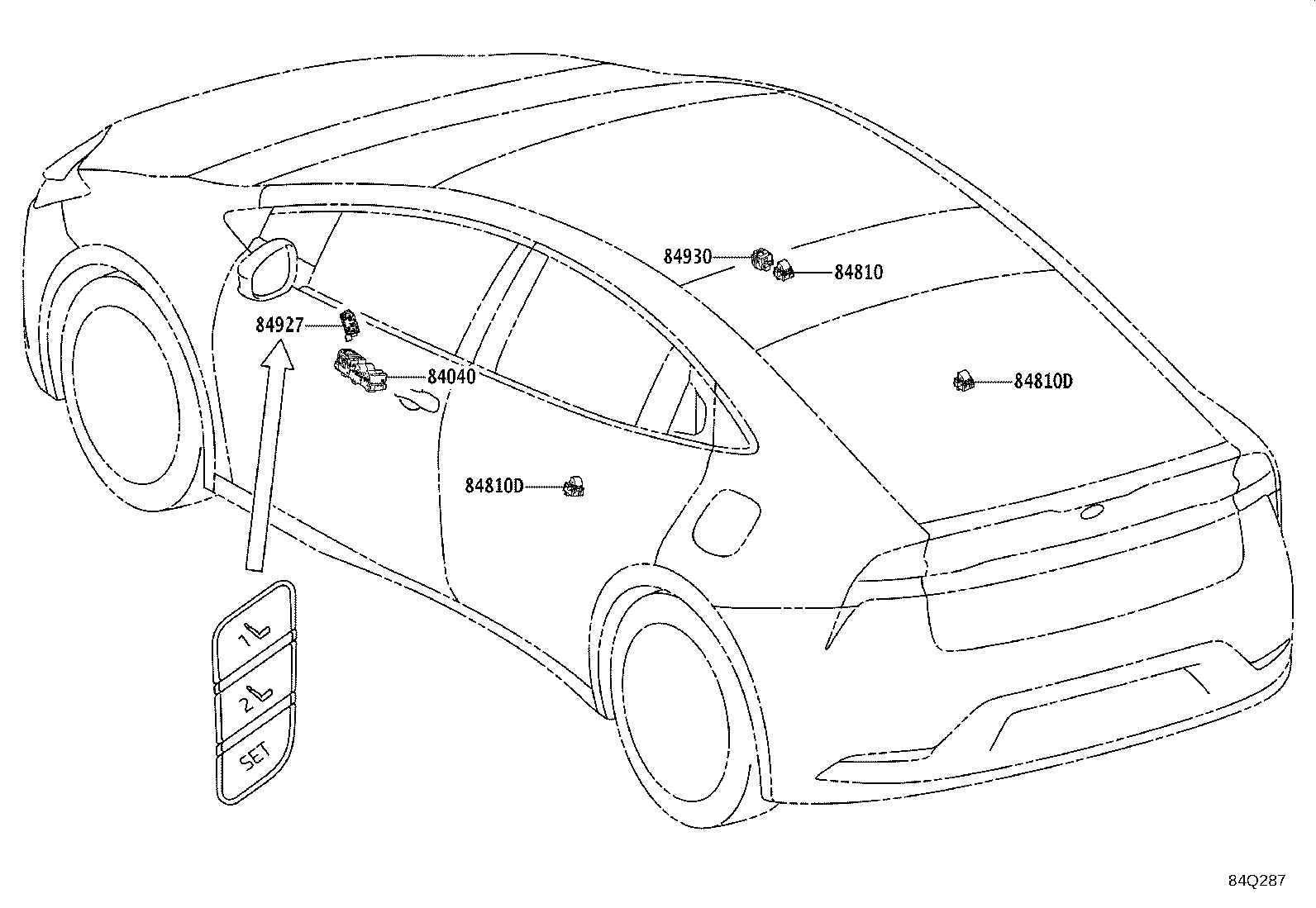

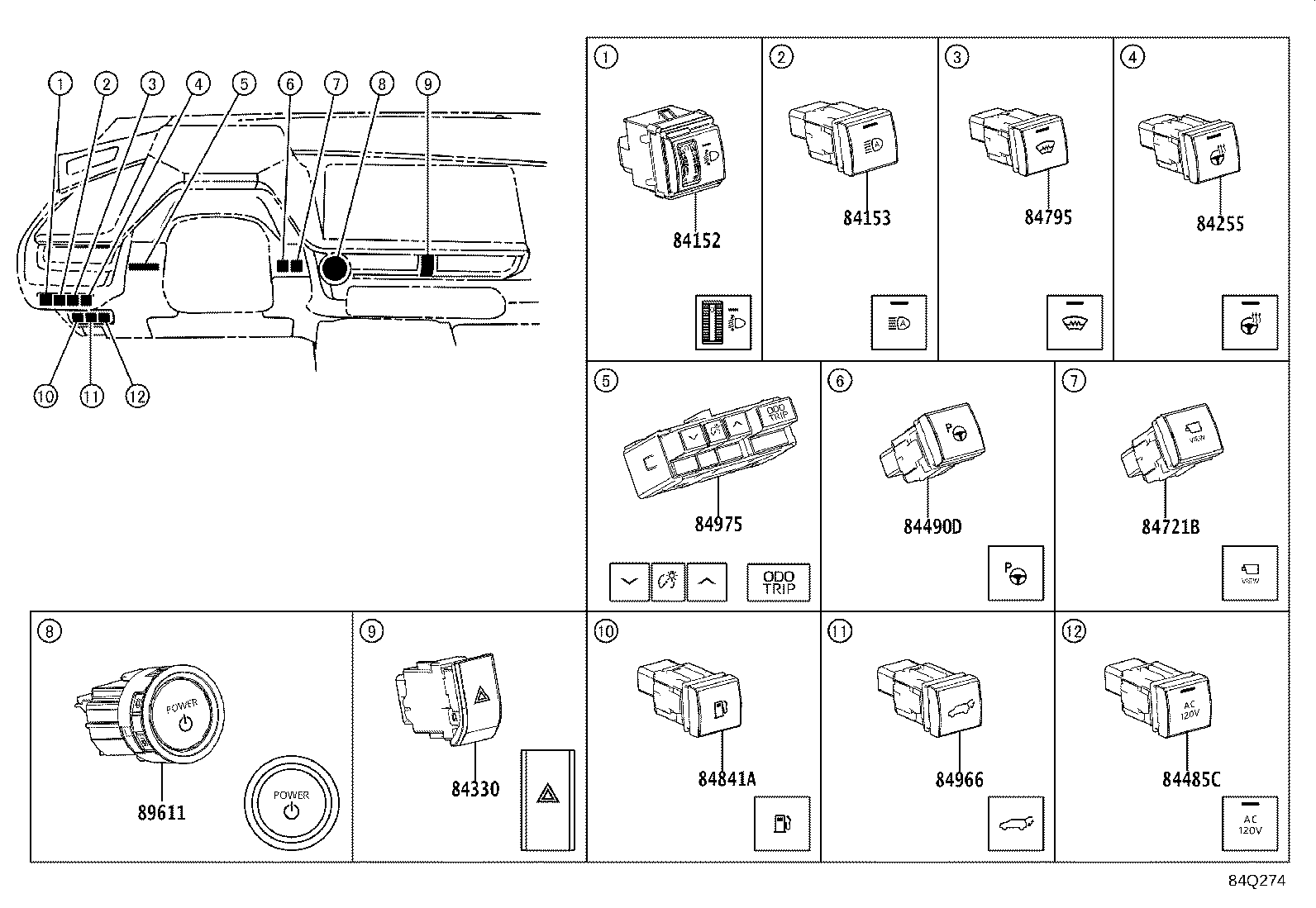

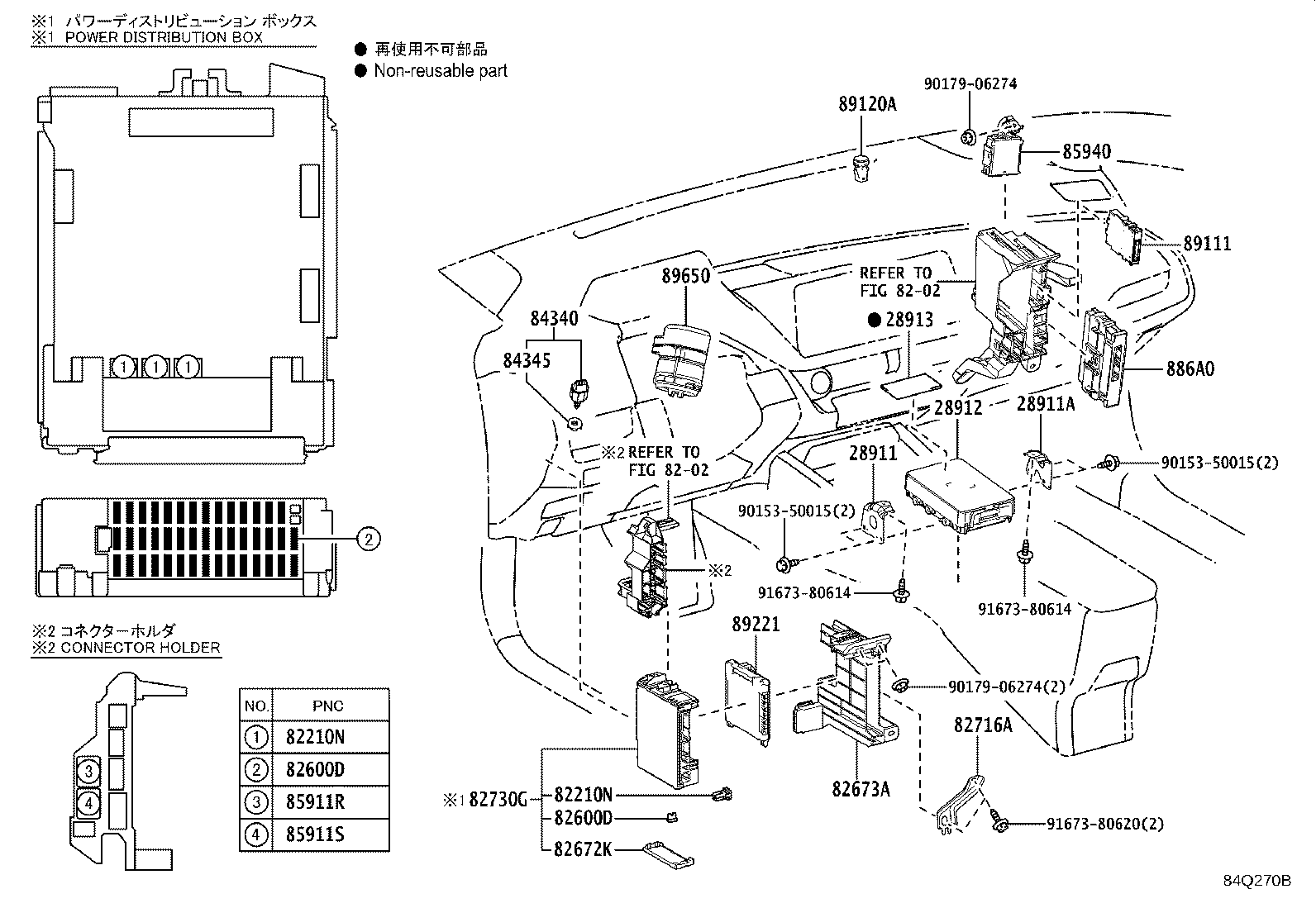

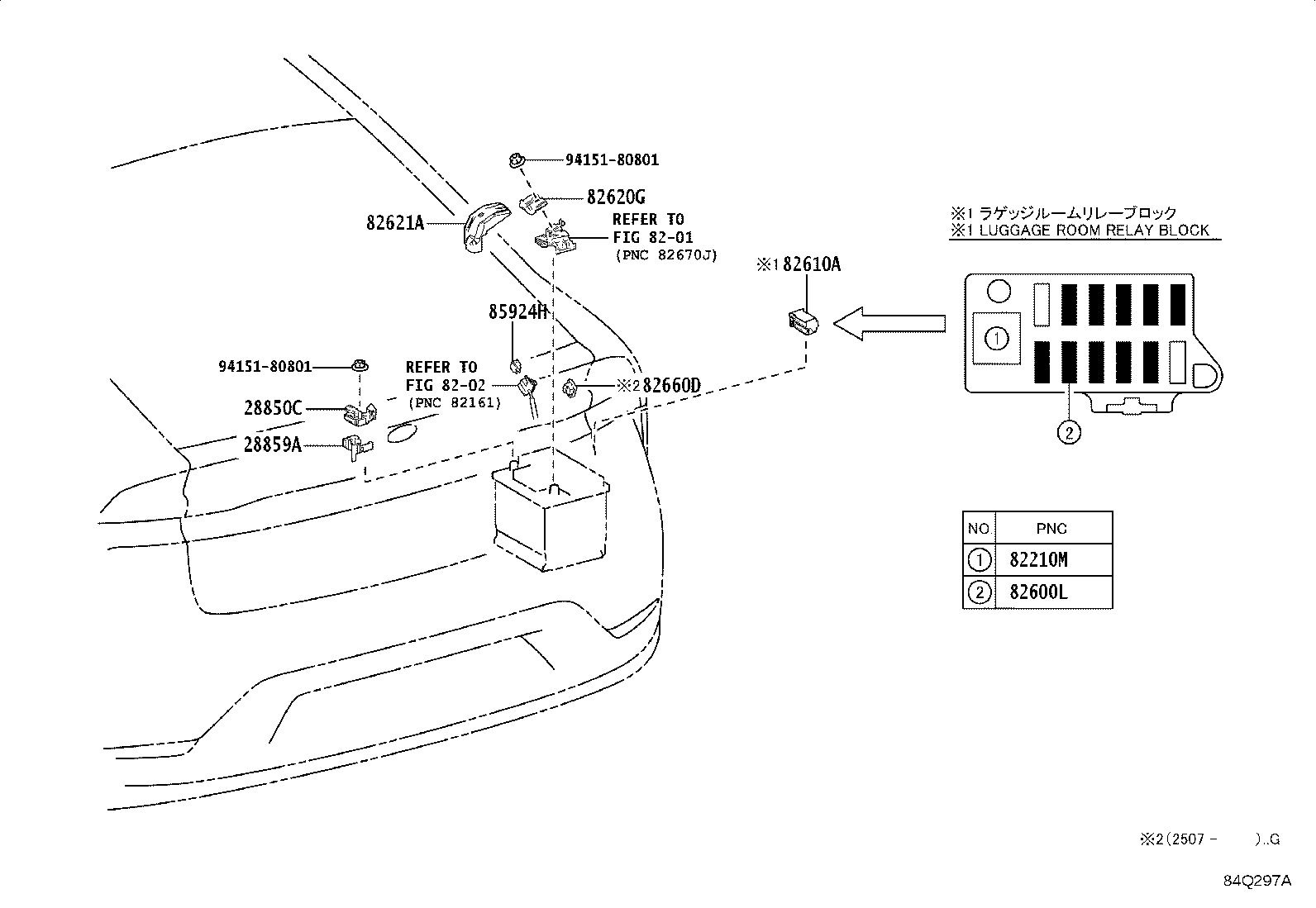

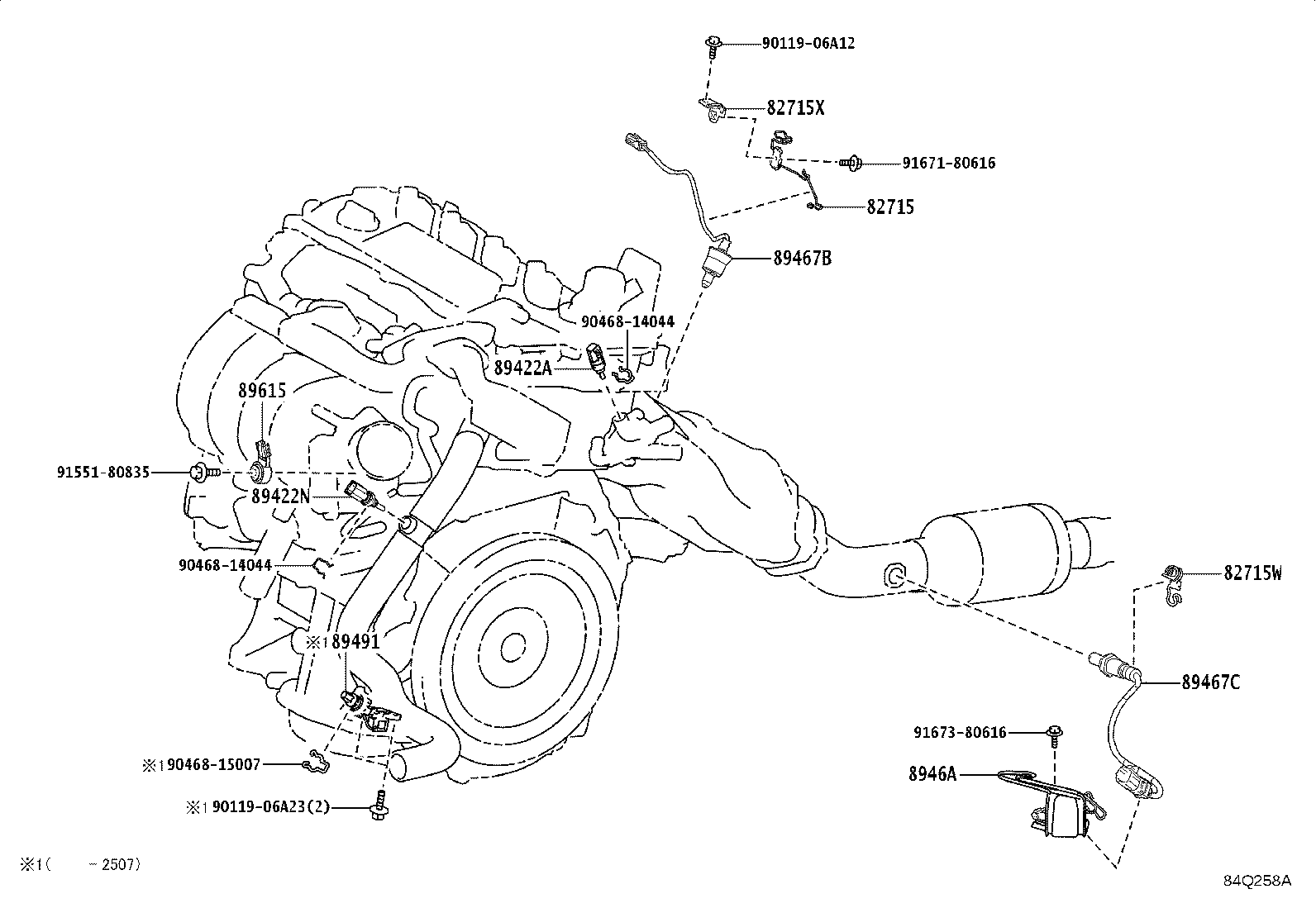

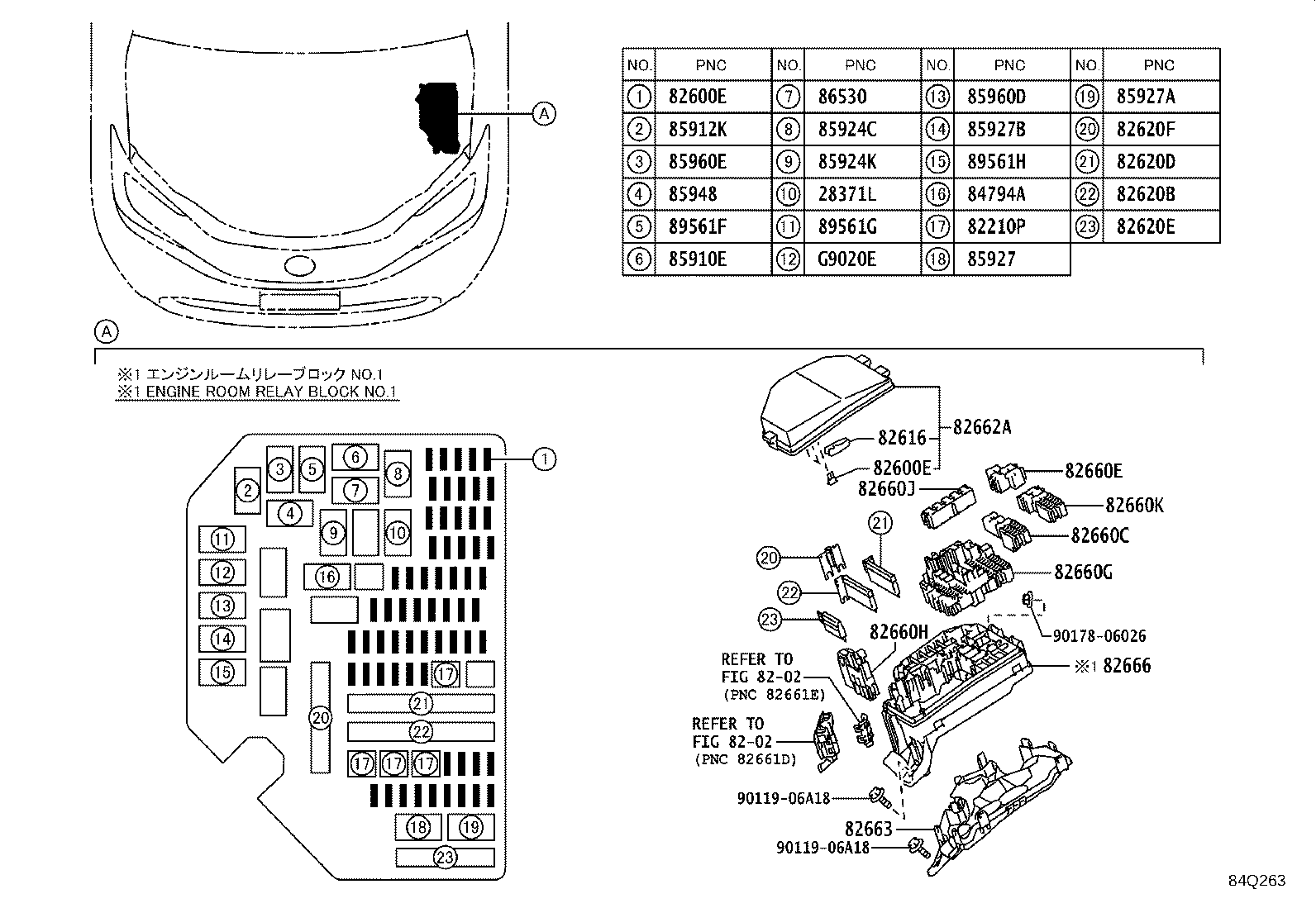

Figure 84Q255B 84Q255B 2022-12 → — Figure 84Q258A 84Q258A 2022-12 → — Figure 84Q263 84Q263 2022-12 → — Figure 84Q265 84Q265 2022-12 → — Figure 84Q270B 84Q270B 2022-12 → — Figure 84Q274 84Q274 2022-12 → — Figure 84Q278A 84Q278A 2022-12 → — Figure 84Q281A 84Q281A 2022-12 → — Figure 84Q284 84Q284 2022-12 → — Figure 84Q287 84Q287 2022-12 → — Figure 84Q290A 84Q290A 2022-12 → — Figure 84Q293 84Q293 2022-12 → — Figure 84Q296 84Q296 2022-12 → — Figure 84Q297A 84Q297A 2022-12 → —

Part groups

PNCDescription
28371J Relay, Igb
28371L Relay, Igp
28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
28911 Bracket, Integration Control Supply, NO.1
28911A Bracket, Integration Control Supply, NO.2
28912 Supply, Integration Control
28913 Cover, Integration Control
82210M Fusible Link
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600L Luggage Room Fuse
82610A Block Assy, Fuse
82616 Puller, Fuse
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82620E Block Assy, Fusible Link
82620F Block Assy, Fusible Link
82620G Block Assy, Fusible Link
82621A Cover, Fusible Link
82660C Block Assy, Relay
82660E Block Assy, Relay
82660G Block Assy, Relay
82660H Block Assy, Relay
82660J Block Assy, Relay
82660K Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82666 Holder, Connector
82672K Cover, Power Distribution Box
82673A Bracket, Junction Block, NO.1
82715 Bracket,Wiring Harness Clamp
82715W Bracket, Wiring Harness Clamp
82715X Bracket, Wiring Harness Clamp, NO.2
82716A Bracket, Wiring Harness Clamp
82730G Box Assy, Power Distribution
83320 Gage Assy, Fuel Sender
84040 Master Switch Assy,Multiplex Network
84152 Switch, Headlamp Leveling
84153 Switch, Auto High Beam
84250A Switch Assy, Steering Pad
84255 Switch, Steering Heater
84306 Cable Sub-assy, Spiral
84319 Housing, Steering Wheel Switch
84329 Switch, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84390B Switch Assy, Electric Parking Brake
84485C Switch, Power Outlet
84490D Switch Assy, Ipa Main
84650 Switch Assy, Windshield Wiper
84721B Switch, Panoramic View Monitor
84751R Switch, Seat Heater(REAR)
84794A Relay, FR Wiper Deicer
84795 Switch, Front Window Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840G Switch Assy, Back Door Opener
84841A Switch, Fuel Lid Opener
84921D Knob, Power Seat Switch, LH
84921K Knob, Power Seat Switch, LH
84922C Switch, Front Power Seat, LH
84927 Switch, Seat Memory
84930 Switch Assy, Door Control
84931C Switch, Back Door Control
84966 Switch, Power Back Door Control
84966A Switch, Power Back Door Control, NO.1
84975 Switch, Trip
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85530C Socket Assy, Power Outlet, Center
85532 Socket, Usb Charger
85532C Socket, Usb Charger, NO.2
85532D Socket, Usb Charger, NO.3
85535B Cover, Power Outlet Socket, NO.1
85536 Bezel, Power Outlet Socket
85910E Relay, Injector
85911R Relay, Rear Seat Heater, RH
85911S Relay, Rear Seat Heater, LH
85912K Relay, Vvt
85924C Relay, Igct
85924H Relay, Igct-scene
85924K Relay, Igct, NO.2
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85934 Relay, Magnet-clutch
85940 Relay Assy, Windshield Wiper
85948 Relay, Windshield Wiper
85960D Relay, Headlamp, RH
85960E Relay, Headlamp, LH
86530 Relay Assy, Horn
88161 Bracket, Blind Spot Monitor, RH
88162 Sensor, Blind Spot Monitor, RH
88171 Bracket, Blind Spot Monitor, LH
88172 Sensor, Blind Spot Monitor, LH
886A0 Computer Assy, Heat Pump
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89222A Computer, Multiplex Network Door
89245B Sensor, Steering
89422A Sensor, Water Temperature
89422N Sensor, Water Temperature, NO.2
89461 Sensor, Vapor Pressure
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
8946A Bracket, Exhaust Sensor Clamp
89491 Sensor, Engine Oil Level
894B0 Computer Assy, Solar Energy Control
89561F Relay, Electronic Fuel Injection Main, NO.1
89561G Relay, Electronic Fuel Injection Main, NO.2
89561H Relay, Electronic Fuel Injection Main, NO.3
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89710D Computer Assy, Position Control, LH
89747E Buzzer, Power Back Door Warning
G9020E Relay, Hybrid Water Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
