Hev Inverter

8 part groups · 2 illustrations

Illustrations

Figure 84Q384

84Q384 2022-12 → —

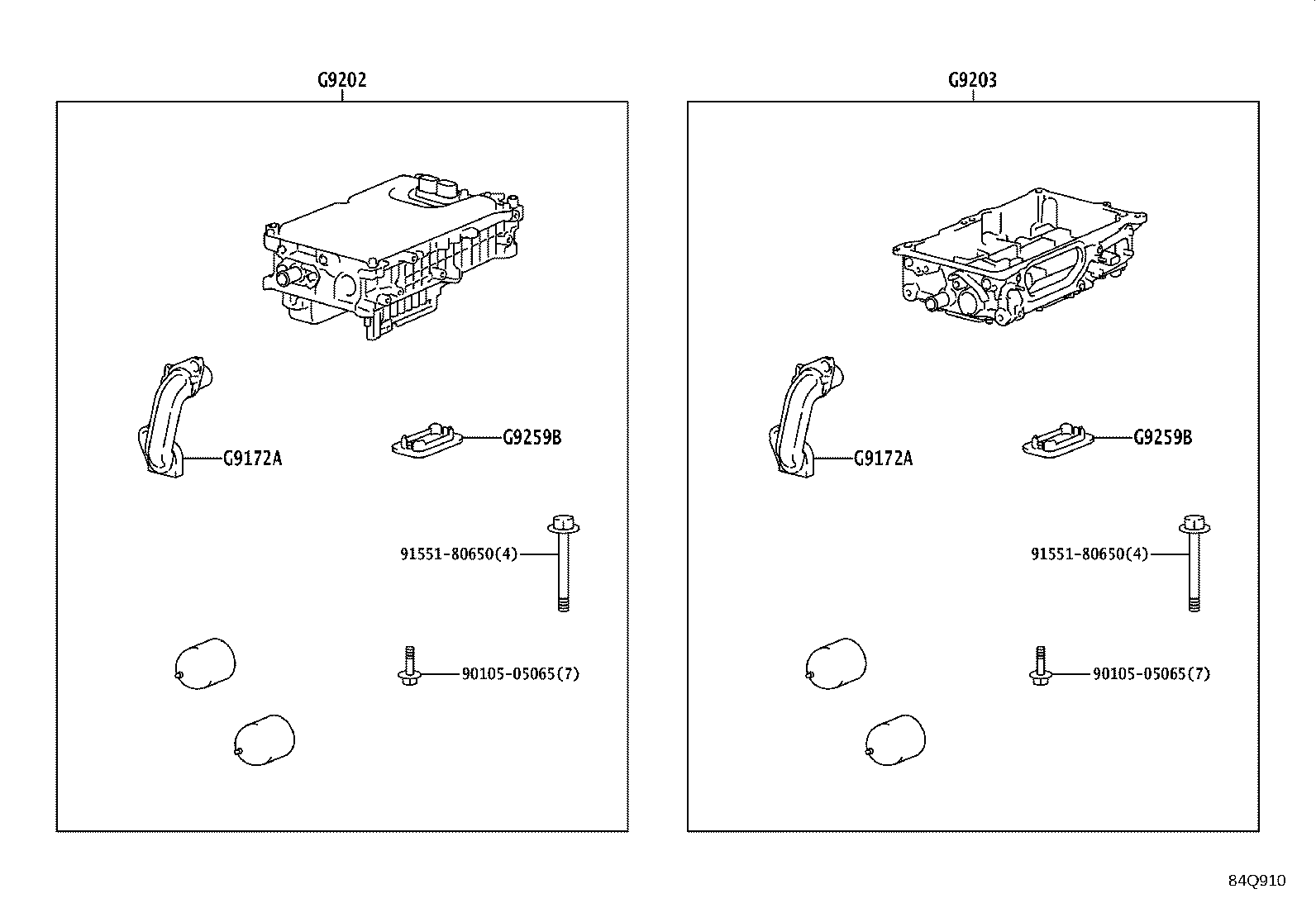

Figure 84Q910

84Q910 2022-12 → —

Part groups

PNC	Description
G9172A	Clamp, Inverter Cooling Pipe
G9200	Inverter Assy, W/Converter
G9202	Case Sub-assy, Inverter
G9203	Case Sub-assy, Converter
G9214	Bracket, Inverter, NO.1
G9215	Bracket, Inverter, NO.2
G9221	Cover, Inverter
G9259B	Plug, Inverter Drain

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
