Toyota Prius
2022-12 → present · chassis MXWH6# · catalogue 222450 · United States
Supported model
Data version 2023-03

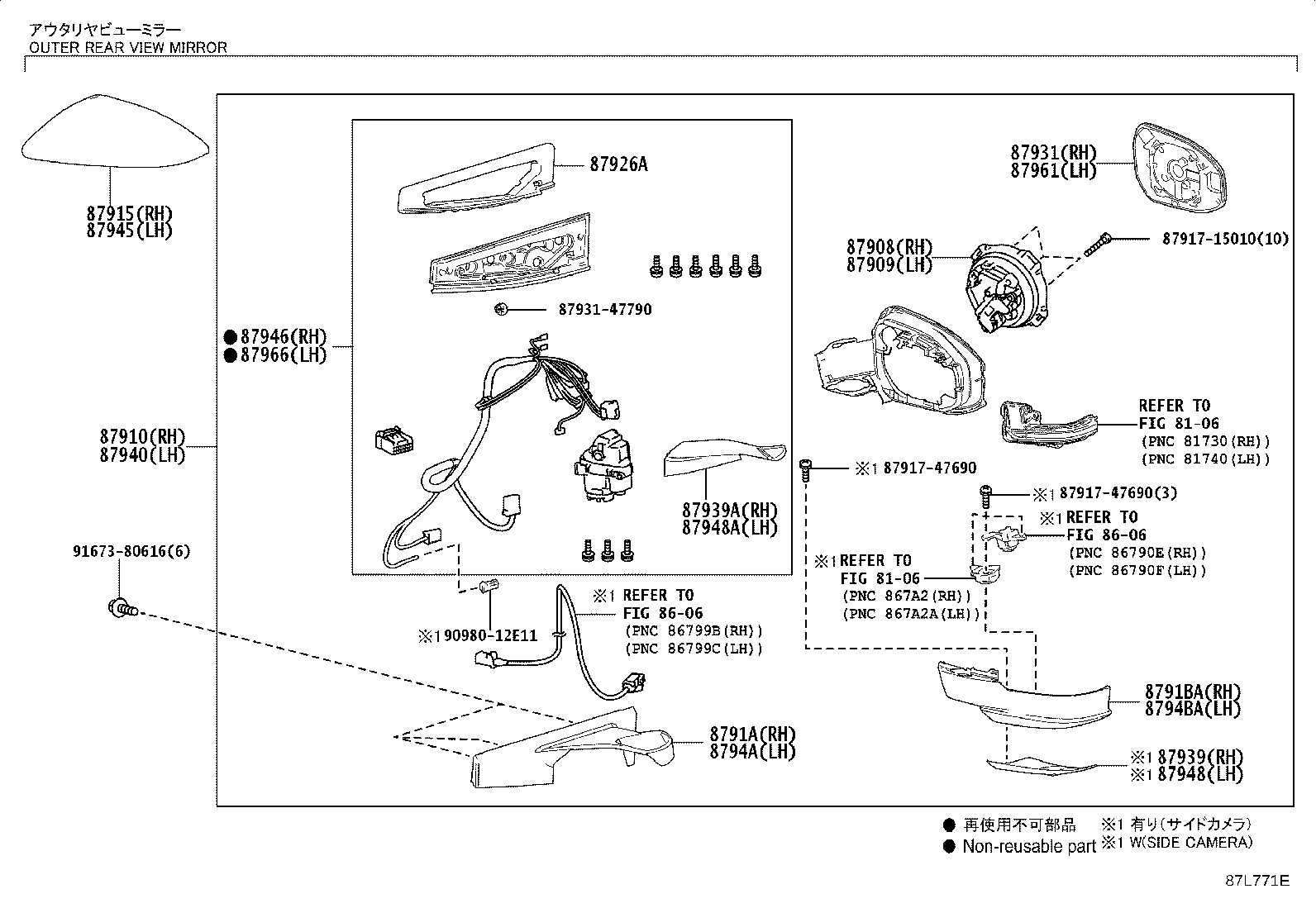

Mirror
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87908 | Actuator Assy, Outer Mirror, RH |
| 87909 | Actuator Assy, Outer Mirror, LH |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915 | Cover, Outer Mirror, RH |
| 8791A | Cover, Outer Mirror, RH NO.2 |
| 8791BA | Cover, Outer Mirror, RH NO.3 |
| 87926A | Packing, Outer Rear View Mirror |
| 87931 | Outer Mirror, RH |
| 87939 | Cover, Outer Mirror Hole, RH |
| 87939A | Cover, Outer Mirror Hole, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87946 | Retractor, Outer Mirror, RH |
| 87948 | Cover, Outer Mirror Hole, LH |
| 87948A | Cover, Outer Mirror Hole, LH |
| 8794A | Cover, Outer Mirror, LH NO.2 |
| 8794BA | Cover, Outer Mirror, LH NO.3 |
| 87961 | Mirror Outer, LH |
| 87966 | Retractor, Outer Mirror, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
