Toyota Prius Prime(PHV)
2016-09 → 2022-11 · chassis ZVW52 · catalogue 224430 · United States
Supported model
Data version 2023-12
Cylinder Block

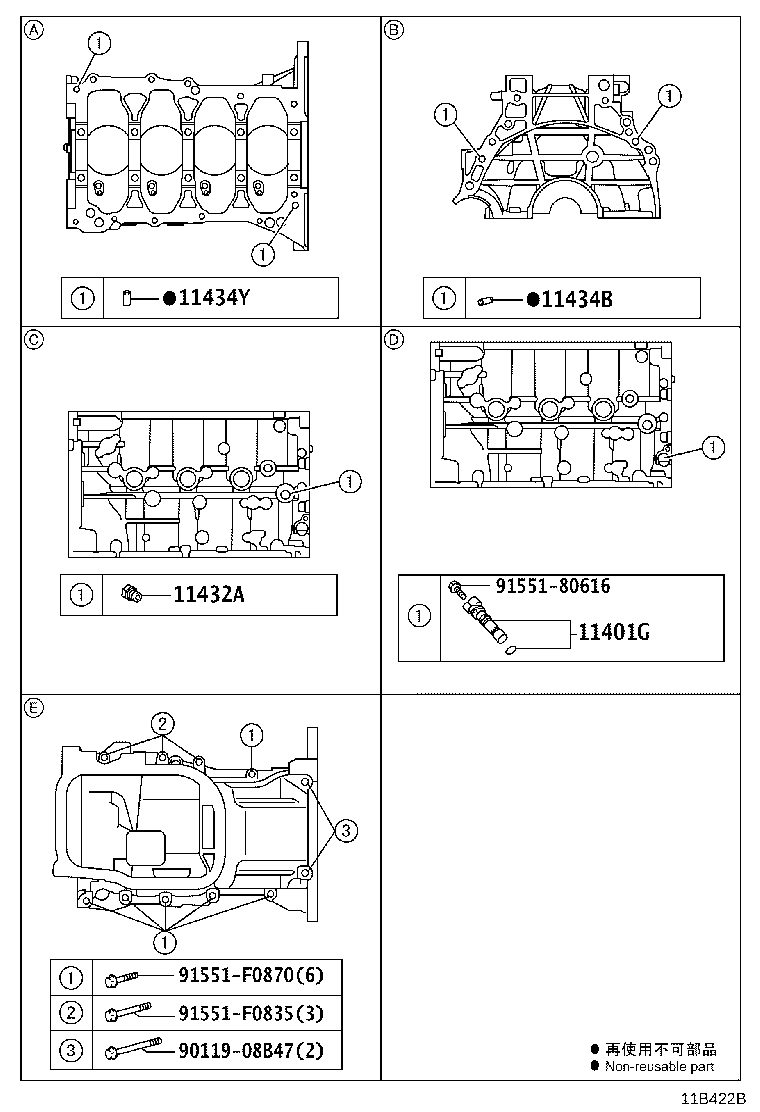

24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11401 | Block Sub-assy, Cylinder |
| 11401G | Sensor, Crank Position |
| 11401L | Seal, Engine Rear Oil |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11420 | Crankcase Assy, Stiffening |
| 11421 | Bolt, Stud(FOR OIL PAN) |
| 11432A | Plug, W/Head Taper Screw, NO.1 |
| 11434A | Pin, Straight(FOR TIMING GEAR COVER SET) |
| 11434B | Pin, Straight(FOR CLUTCH HOUSING SET) |
| 11434J | Pin, Ring (FOR CYLINDER HEAD SET) |
| 11434M | Pin, Straight(FOR CHAIN TENSIONER) |
| 11434Y | Pin, Straight(FOR OIL PAN) |
| 11444A | Ring, O |
| 11445 | Spacer, Cylinder Block Water Jacket |
| 11446 | Spacer, Cylinder Block Water Jacket, LH |
| 11452 | Guide, Oil Level Gage |
| 11452B | Ring, O(FOR OIL LEVEL GAGE GUIDE) |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12102A | Pan Sub-assy, Oil, NO.2 |
| 15301 | Gage Sub-assy, Oil Level |
| 15301A | Ring, O(FOR OIL LEVEL GAGE) |
| 15708 | Nozzle Sub-assy, Oil, NO.1 |
| 28193 | Insulator, Starter Hole |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
