Toyota Prius Prime(PHV)
2016-09 → 2022-11 · chassis ZVW52 · catalogue 224430 · United States
Supported model
Data version 2023-12
Radiator & Water Outlet

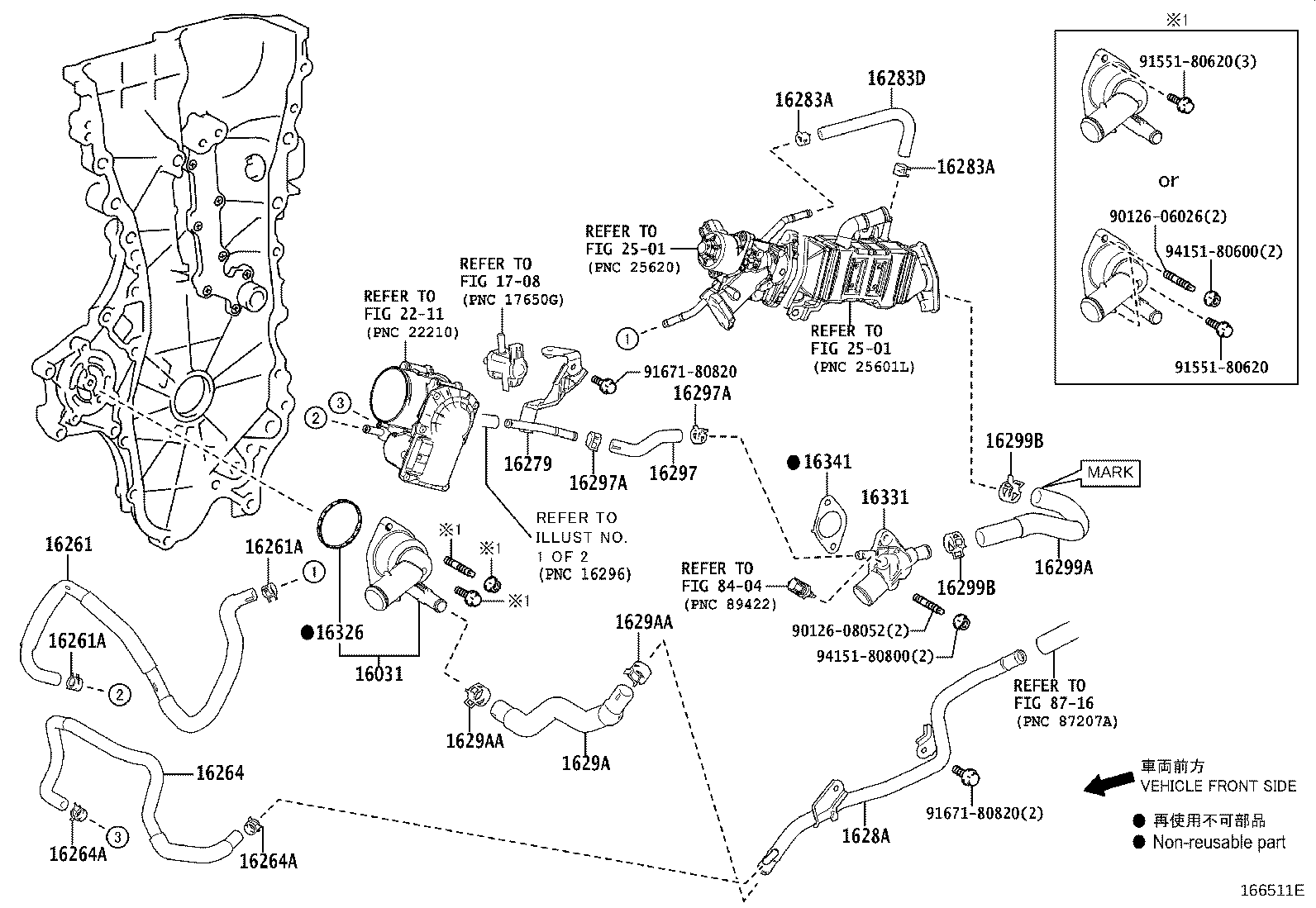

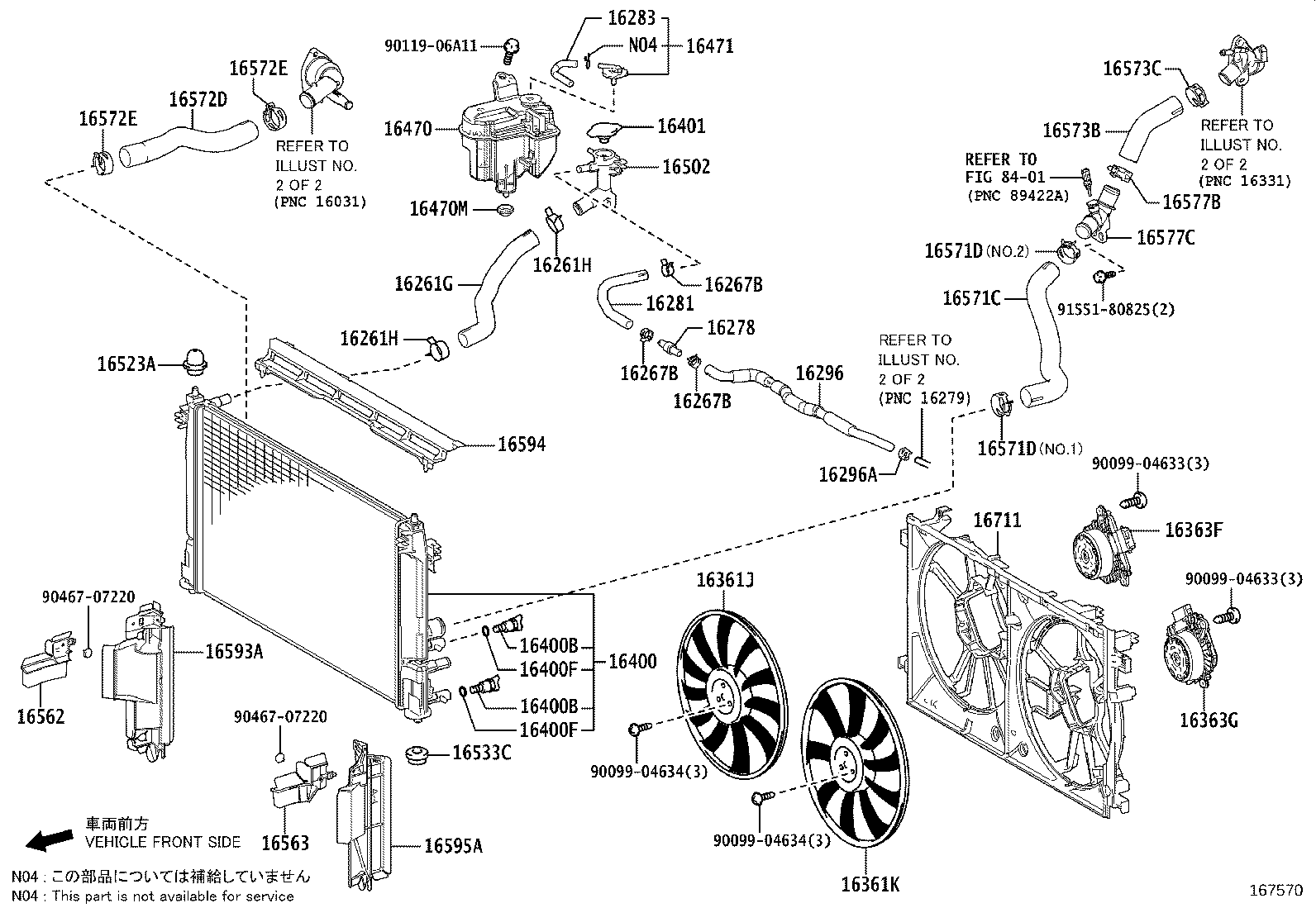

62 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16031 | Water Inlet Sub-assy, W/Thermostat |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264D | Hose, Water By-pass, NO.2 |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267B | Clip(FOR WATER BY-PASS HOSE) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16279 | Pipe, Water By-pass, NO.3 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16283 | Hose, Water By-pass, NO.6 |
| 16283A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16283D | Hose, Water By-pass, NO.6 |
| 1628A | Pipe, Water By-pass, NO.6 |
| 16296 | Hose, Water By-pass, NO.8 |
| 16296A | Clip(FOR WATER BY-PASS HOSE NO.8) |
| 16297 | Hose, Water By-pass, NO.9 |
| 16297A | Clip(FOR WATER BY-PASS HOSE NO.9) |
| 16299A | Hose, Water By-pass, NO.13 |
| 16299B | Clip(FOR WATER BY-PASS HOSE NO.13) |
| 1629A | Hose, Water By-pass, NO.14 |
| 1629AA | Clip(FOR WATER BY-PASS HOSE NO.14) |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16331 | Outlet, Water |
| 16341 | Gasket, Water Outlet |
| 16361J | Fan, RH |
| 16361K | Fan, LH |
| 16363F | Motor, Cooling Fan, RH |
| 16363G | Motor, Cooling Fan, LH |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16470 | Tank Assy, Radiator Reserve |
| 16470M | Grommet |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16475A | Cap, Reserve Tank |
| 16492 | Ring, O(FOR RADIATOR RESERVE TANK COCK) |
| 164A0 | Cock Assy, Reserve Tank |
| 164A2 | Tank, Reserve Sealed W/O Cap |
| 16502 | Filler Sub-assy, Water |
| 16523A | Cushion, Radiator Support |
| 16533C | Grommet(FOR RADIATOR SUPPORT) |
| 16562 | Seal, Radiator TO Support, NO.2 |
| 16563 | Seal, Radiator TO Support, NO.3 |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16573B | Hose, Radiator, NO.3 |
| 16573C | Clamp OR Clip, Radiator Hose, NO.3 |
| 16577B | Clamp OR Clip, Hose(FOR RADIATOR PIPE) |
| 16577C | Pipe, Radiator |
| 16593A | Guide, Radiator Air, NO.1 RH |
| 16594 | Guide, Radiator Air, NO.2 |
| 16595A | Guide, Radiator Air, NO.1 LH |
| 16711 | Shroud, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
