Toyota Prius Prime(PHV)

2016-09 → 2022-11 · chassis ZVW52 · catalogue 224430 · United States

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

15 part groups · 2 illustrations

Illustrations

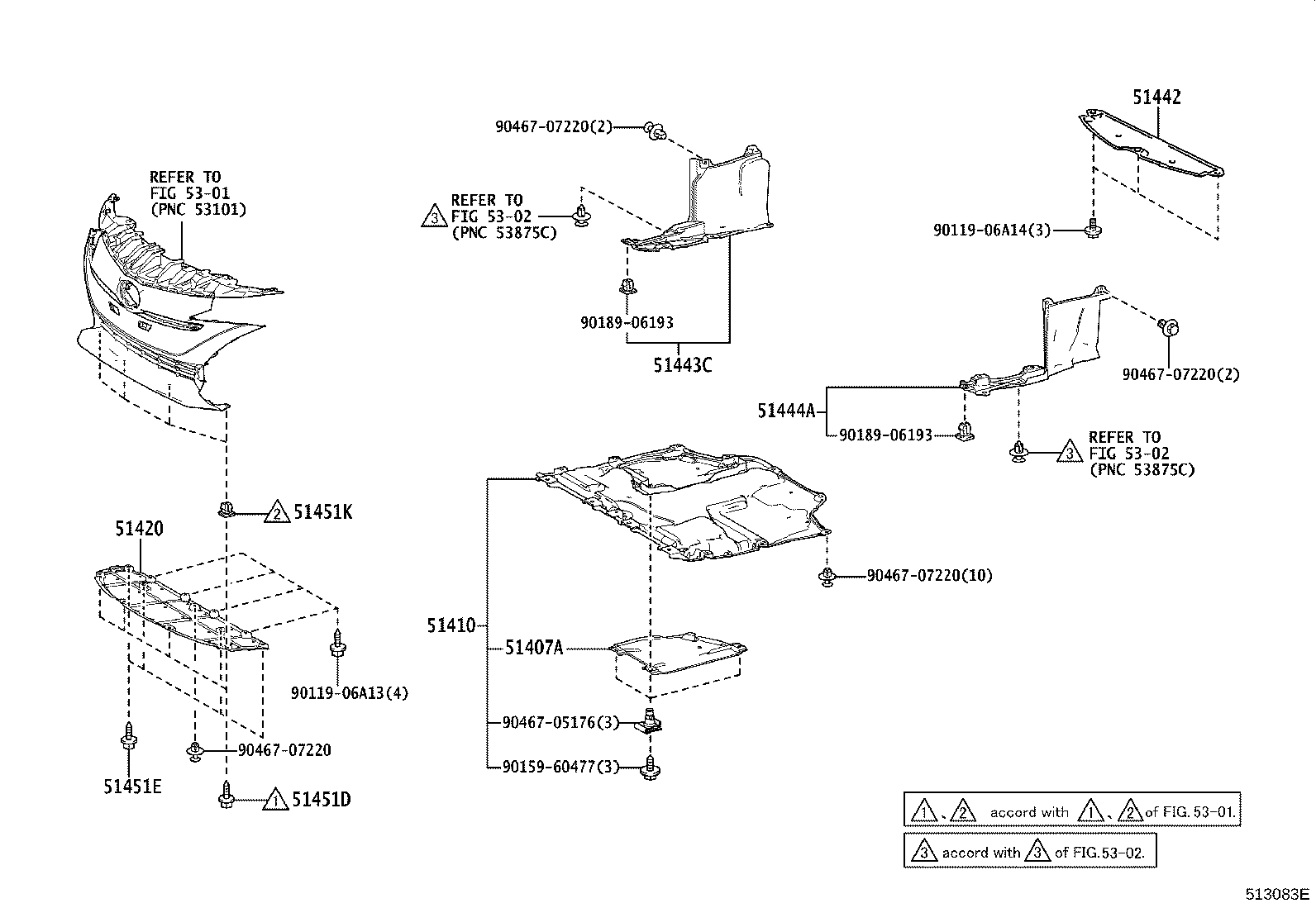

Figure 513069 513069 2016-09 → — Figure 513083E 513083E 2016-09 → —

Part groups

PNCDescription
51107A Reinforcement Sub-assy, Side Rail, Rear RH
51108A Reinforcement Sub-assy, Side Rail, Rear LH
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51228G Plate, Front Suspension Member
51284 Cover, Rear Suspension Member Hole
51407A Cover Sub-assy, Engine Under, NO.3
51410 Cover Assy, Engine Under, NO.1
51420 Cover Assy, Engine Under, NO.2
51442 Cover, Engine Under, NO.2
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
51451D Screw, NO.1
51451E Screw, NO.2
51451K Grommet, Screw, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
