Toyota Prius Prime(PHV)
2016-09 → 2022-11 · chassis ZVW52 · catalogue 224430 · United States
Supported model
Data version 2023-12

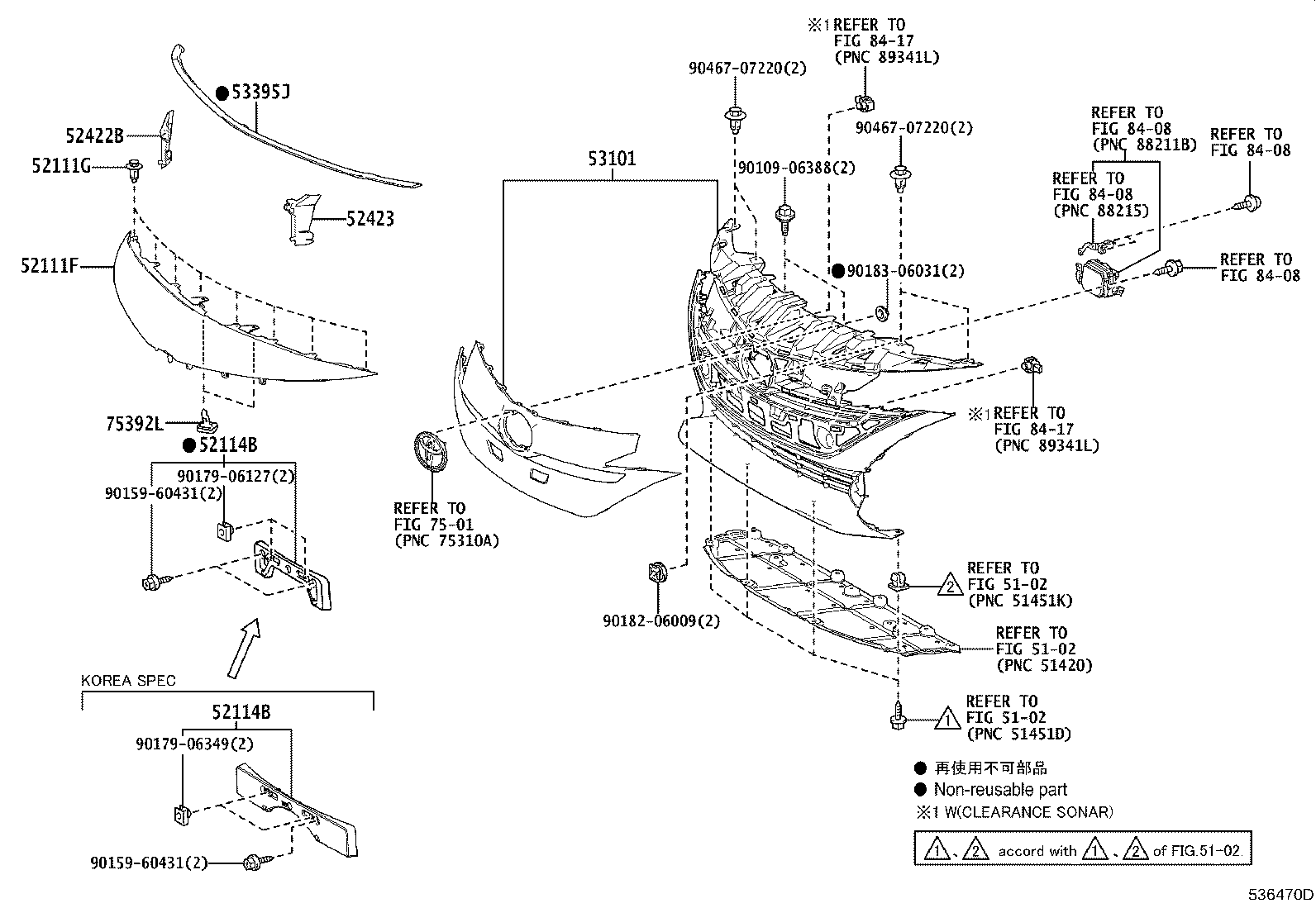

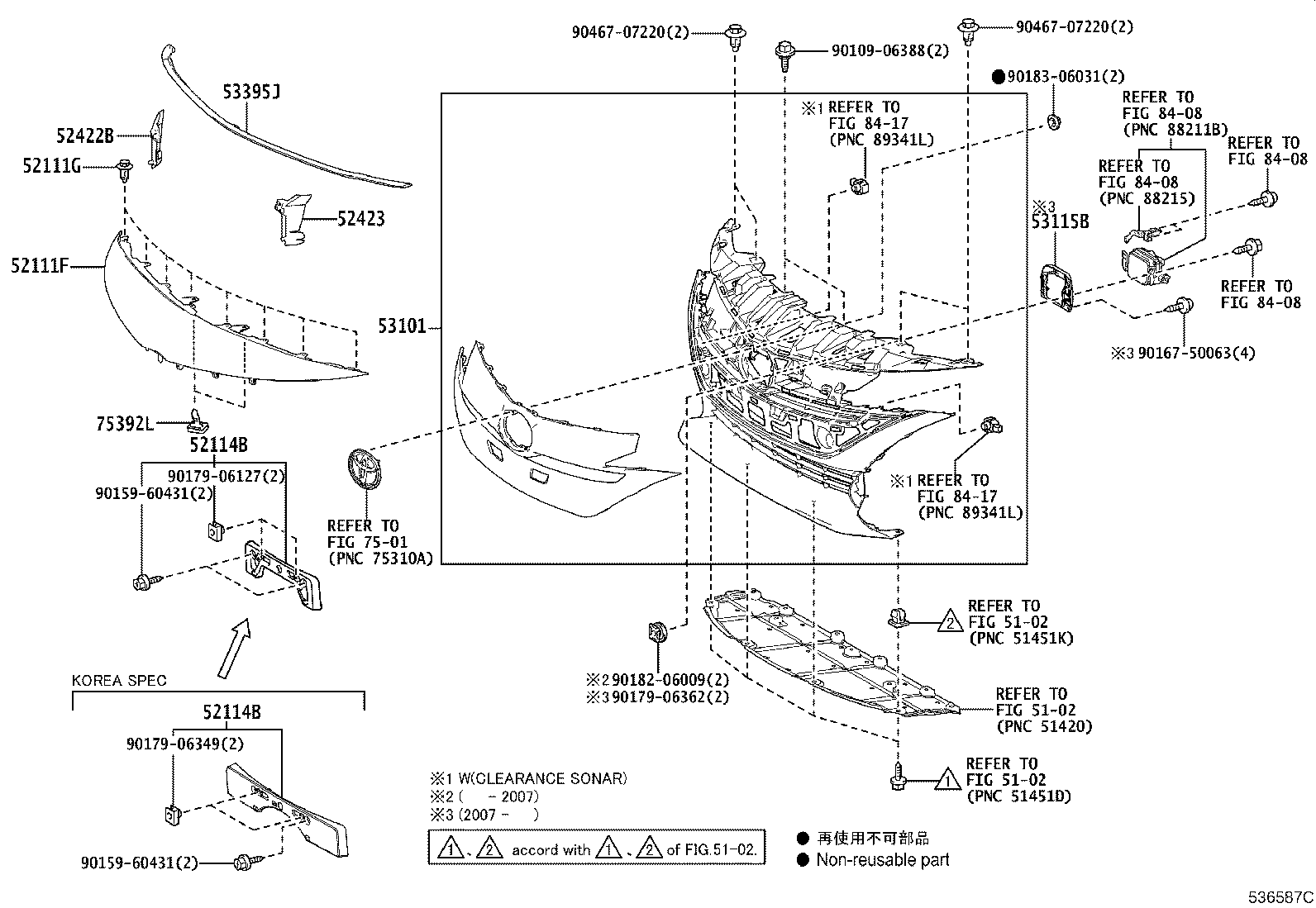

Radiator Grille
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52111F | Bar, Front Bumper, Center |
| 52111G | Clip, Front Bumper Bar |
| 52114B | Bracket, Front Bumper Extension Mounting |
| 52422B | Pad, Front Bumper, RH |
| 52423 | Pad, Front Bumper, LH |
| 53101 | Grille Sub-assy, Radiator |
| 53115B | Bracket, Radiator Grille |
| 53395J | Seal, Hood TO Front End Panel |
| 75392L | Retainer, Outside Moulding |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
