Toyota Prius Prime(PHV)

2016-09 → 2022-11 · chassis ZVW52 · catalogue 224430 · United States

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

31 part groups · 3 illustrations

Illustrations

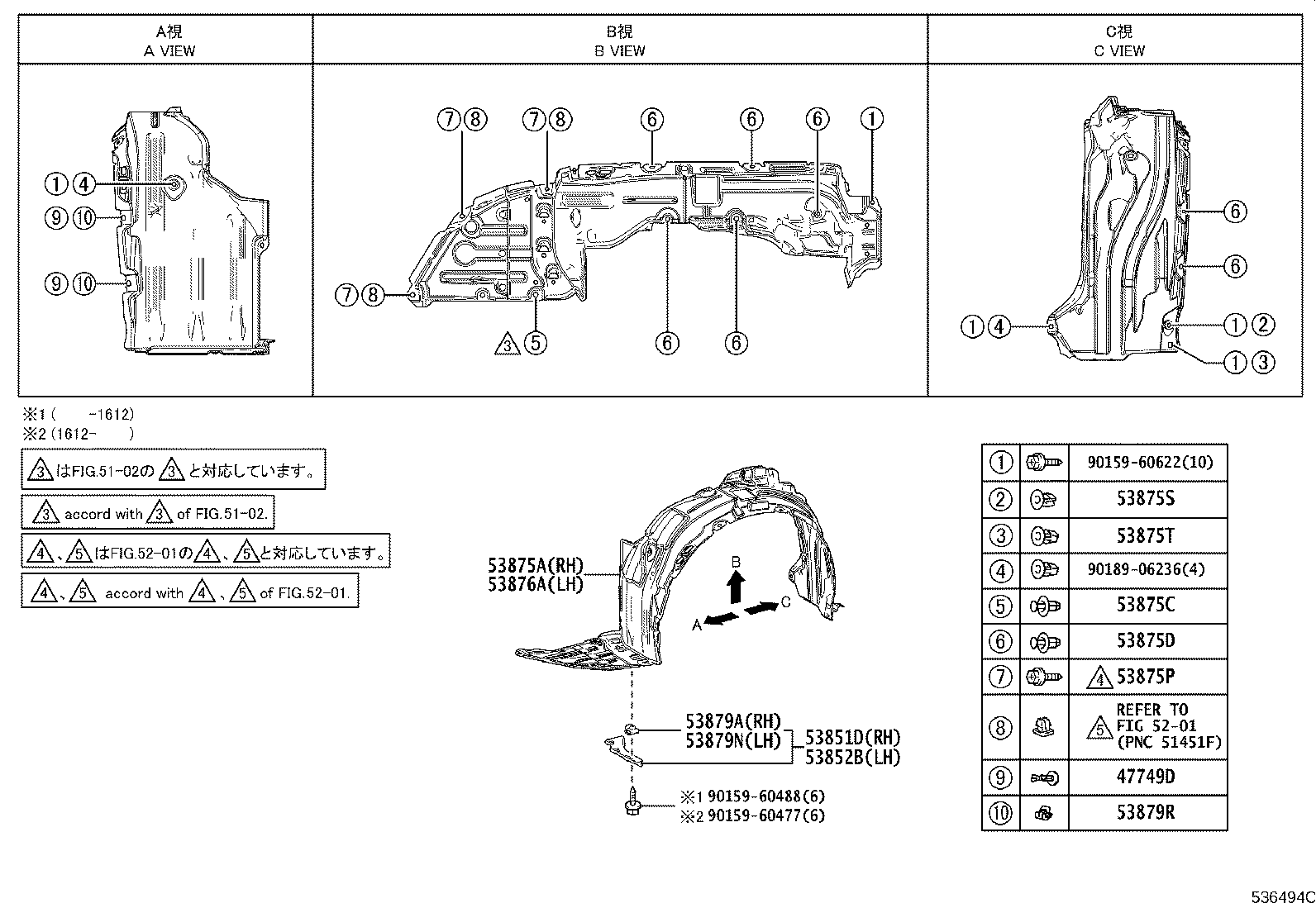

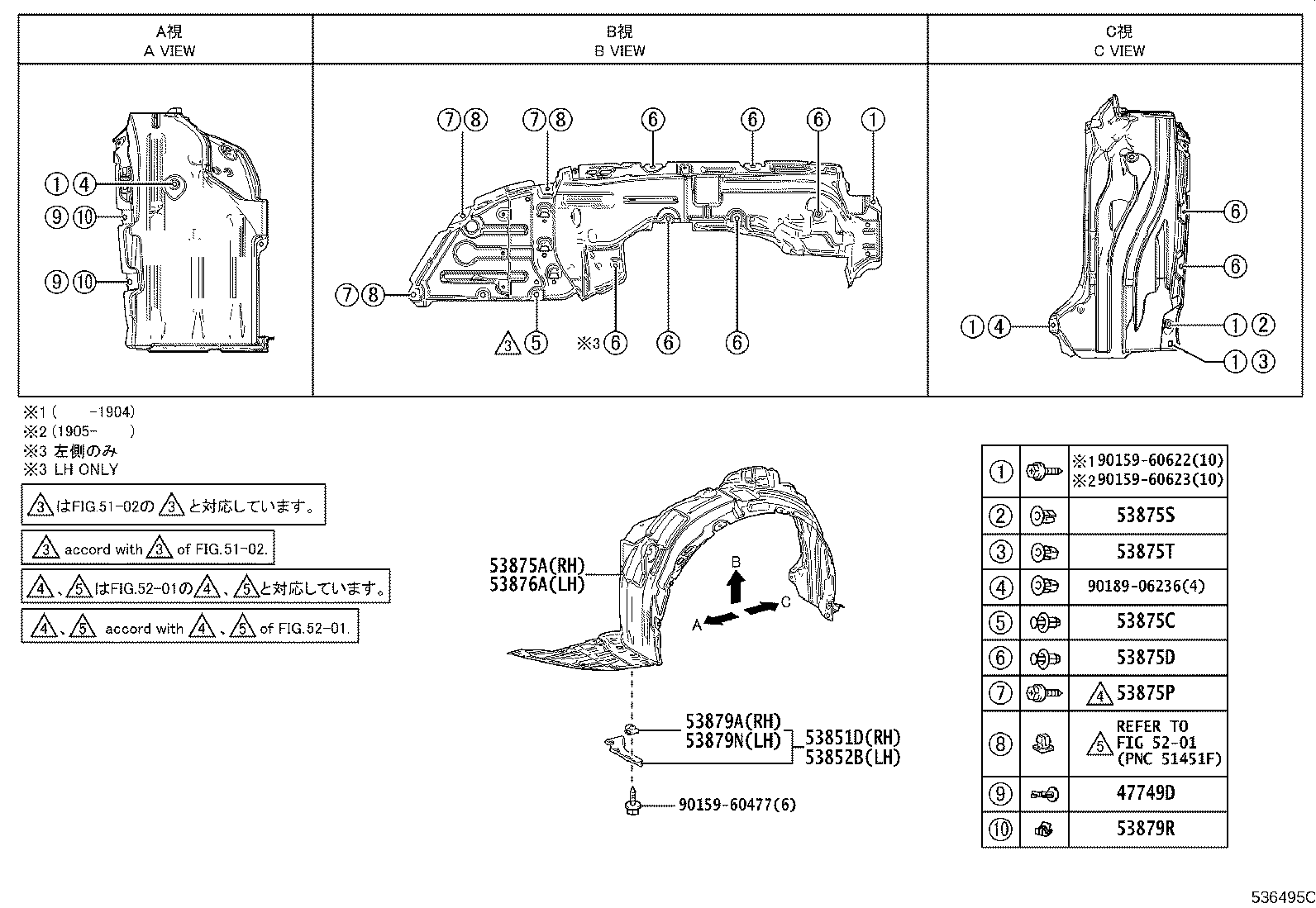

Figure 535076J 535076J 2016-09 → — Figure 536494C 536494C 2016-09 → 2018-12 Figure 536495C 536495C 2018-12 → —

Part groups

PNCDescription
47749D Clip, Pin Hold
53153B Guide, Front Side Air
53154E Guide, Front Side Air, NO.2
53155C Seal, Radiator Grille, NO.1
53156H Seal, Radiator Grille, NO.2
53301 Hood Sub-assy
53336A Bracket, Hood Stay
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53384B Cushion, Hood, Center
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53807E Seal Sub-assy, Fender Apron Mudguard, RH
53808E Seal Sub-assy, Fender Apron Mudguard, LH
53827L Protector, Front Fender Side Panel, RH
53828B Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53857 Retainer, Front Wheel Opening Extension, RH
53858 Retainer, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875D Clip, Front Fender Liner, NO.2
53875P Screw, NO.1
53875S Grommet, NO.1
53875T Grommet, NO.2
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53879N Retainer, Front Fender Liner, LH
53879R Retainer, Front Fender Liner
53882F Seal, Front Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
