Toyota Prius Prime(PHV)
2016-09 → 2022-11 · chassis ZVW52 · catalogue 224430 · United States
Supported model
Data version 2023-12

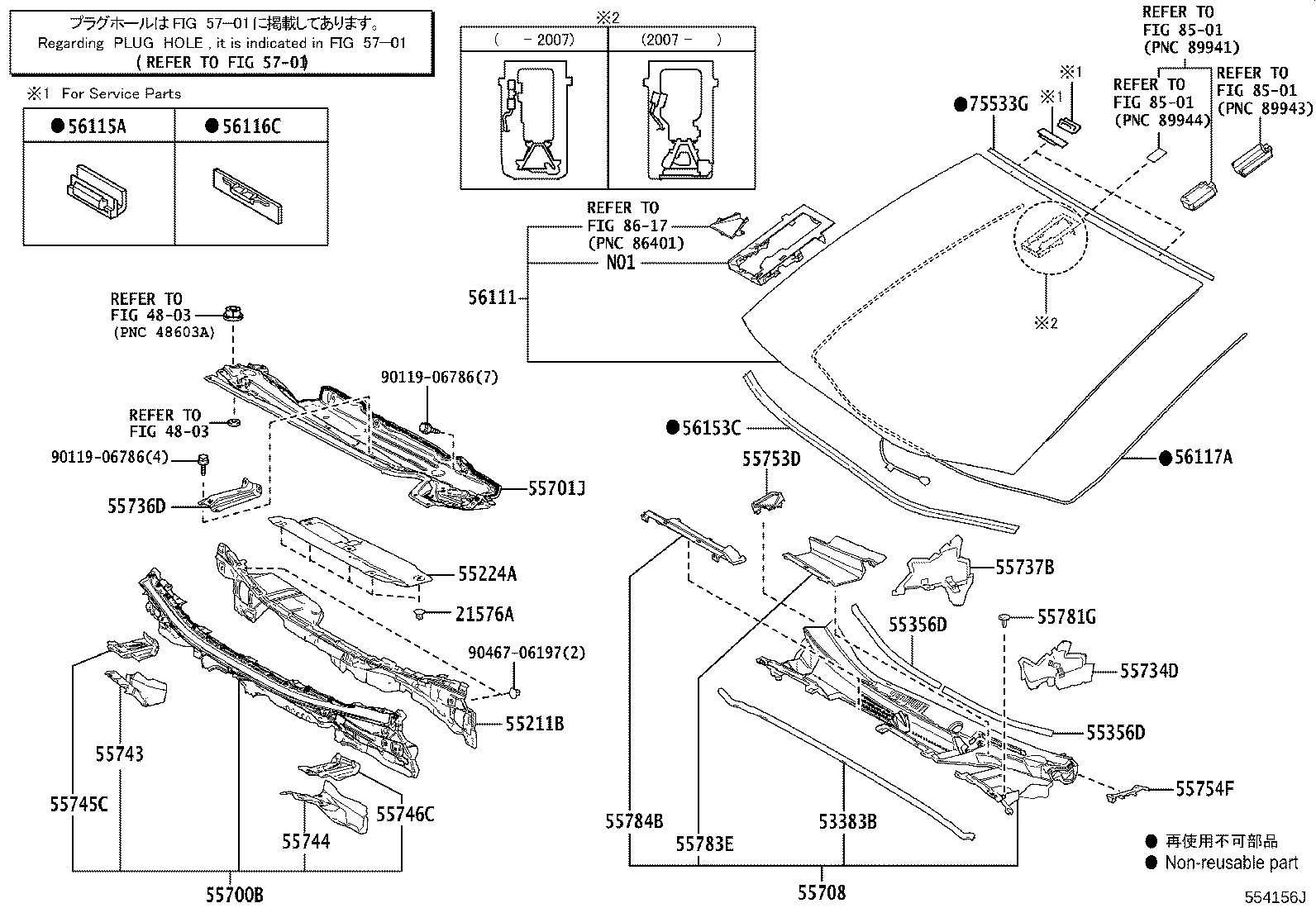

Cowl Panel & Windshield Glass
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 21576A | Clip |
| 53383B | Seal, Hood TO Cowl Top |
| 55211B | Silencer, Front Panel |
| 55224A | Insulator, Dash Panel, Outer NO.2 |
| 55356D | Cushion, Instrument Panel, NO.2 |
| 55700B | Cowl Assy |
| 55701J | Panel Sub-assy, Cowl Top, Outer |
| 55708 | Louver Sub-assy, Cowl Top Ventilator |
| 55734D | Plate, Water Guard |
| 55736D | Reinforcement, Cowl Body Mounting, LH |
| 55737B | Seal, Heater Air Duct Splash Shield, NO.1 |
| 55743 | Panel, Cowl Top Outside Corner, RH |
| 55744 | Panel, Cowl Top Outside Corner, LH |
| 55745C | Reinforcement, Cowl Top, Inner RH |
| 55746C | Reinforcement, Cowl Top, Inner LH |
| 55753D | Shield, Cowl Water Extract, RH |
| 55754F | Shield, Cowl Water Extract, LH |
| 55781G | Clip, Cowl Top Ventilator Louver |
| 55783E | Louver, Cowl Top Ventilator, Center |
| 55784B | Louver, Cowl Top Ventilator, Center NO.2 |
| 56111 | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56116C | Stopper, Windshield Glass, NO.2 |
| 56117A | Dam, Window Glass Adhesive |
| 56153C | Moulding, Front Window, Inner Center |
| 75533G | Moulding, Windshield, Outside |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
