Toyota Prius Prime(PHV)
2016-09 → 2022-11 · chassis ZVW52 · catalogue 224430 · United States
Supported model
Data version 2023-12

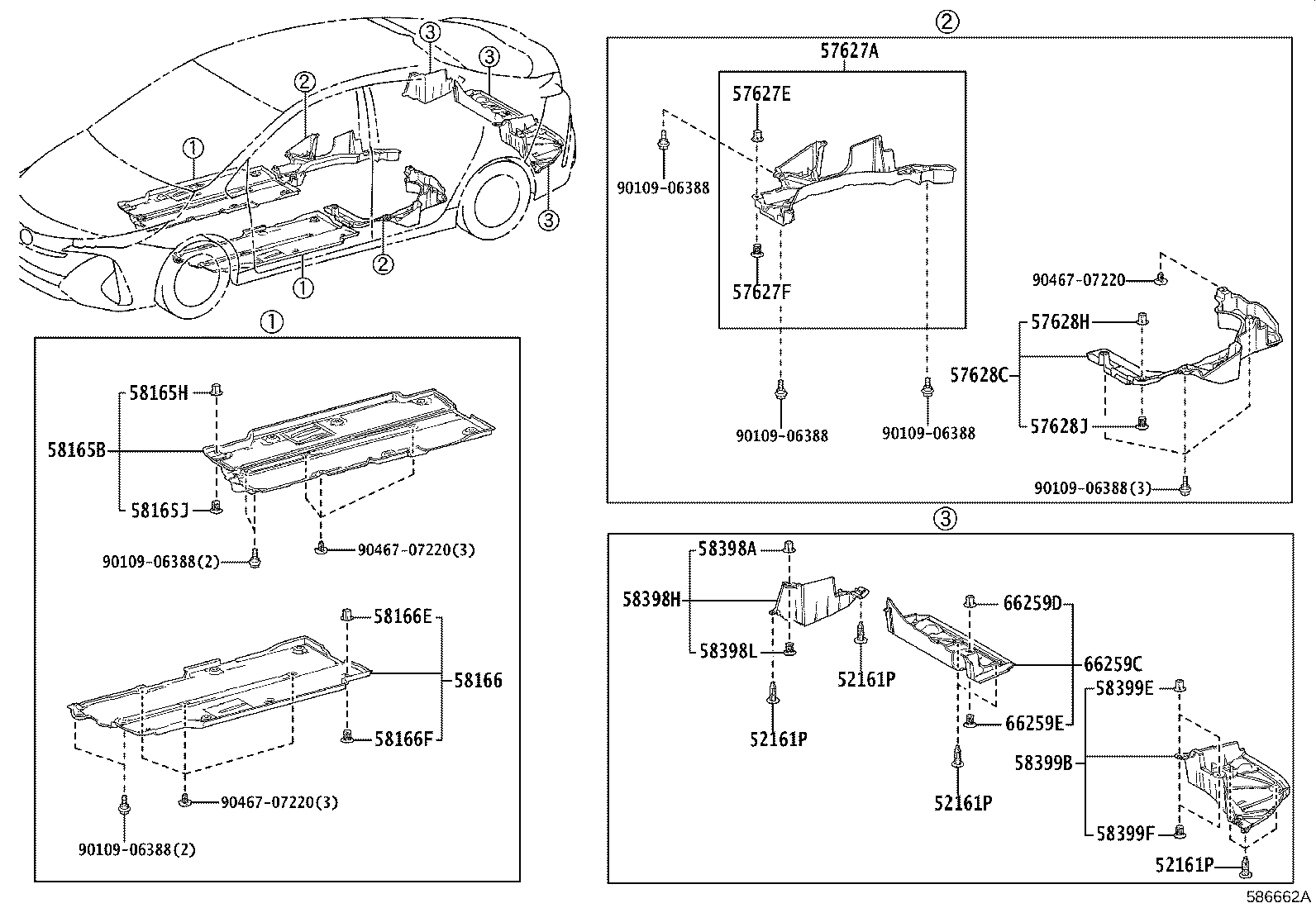

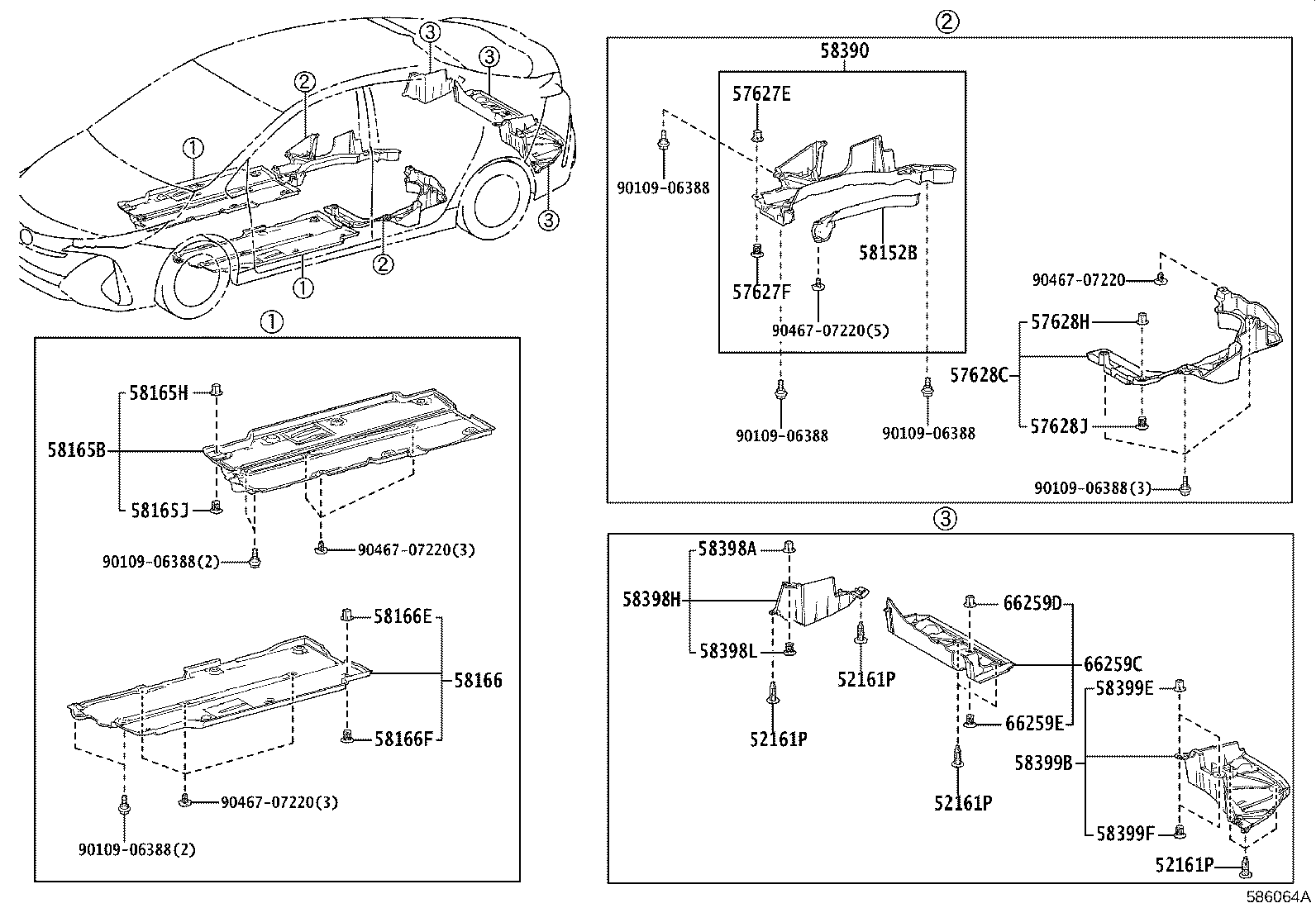

Floor Pan & Lower Back Panel
70 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161P | Piece, Rear Bumper |
| 55108C | Brace Sub-assy, Dash TO Frame, RH |
| 55109B | Brace Sub-assy, Dash TO Frame, LH |
| 55112A | Panel, Dash, NO.2 |
| 55129D | Cover, Dash Panel Hole, RH |
| 55139B | Cover, Dash Panel Hole, LH |
| 57053 | Reinforcement Sub-assy, Front Floor Crossmember, RH |
| 57054A | Reinforcement Sub-assy, Front Floor Crossmember, LH |
| 57188C | Reinforcement, Front Side Member Extension, RH |
| 57189B | Reinforcement, Front Side Member Extension, LH |
| 57405E | Member Sub-assy, Center Floor Cross, NO.2 |
| 57407E | Member Sub-assy, Center Floor Cross |
| 57451A | Member, Front Floor Cross, RH |
| 57452C | Member, Front Floor Cross, LH |
| 57508A | Reinforcement Sub-assy, Front Floor, RH |
| 57509A | Reinforcement Sub-assy, Front Floor, LH |
| 57533B | Brace, Front Floor, Center |
| 57627A | Cover, Rear Floor Side Member, RH |
| 57627E | Clip, Rear Floor Side Member Cover, NO.1 |
| 57627F | Clip, Rear Floor Side Member Cover, NO.2 |
| 57628C | Cover, Rear Floor Side Member, LH |
| 57628H | Clip, Rear Floor Side Member Cover, NO.1 |
| 57628J | Clip, Rear Floor Side Member Cover, NO.2 |
| 57683A | Bracket, Fuel Tank Mounting, NO.1 |
| 57807B | Reinforcement Sub-assy, Belt Anchor, NO.2 |
| 58014 | Panel Sub-assy, Front Floor, Rear Lower |
| 58102C | Reinforcement Sub-assy, Front Floor Side, RH |
| 58103A | Reinforcement Sub-assy, Front Floor Side, LH |
| 58111A | Pan, Front Floor, RH |
| 58112C | Pan, Front Floor, LH |
| 58113A | Panel, Front Floor, Center |
| 58114A | Reinforcement, Front Floor Panel |
| 58115 | Reinforcement, Front Floor Panel, Front |
| 58152B | Insulator, Front Floor Heat, NO.1 Lower |
| 58165B | Cover, Front Floor, RH |
| 58165H | Clip, Front Floor Cover, NO.1 |
| 58165J | Clip, Front Floor Cover, NO.2 |
| 58166 | Cover, Front Floor, LH |
| 58166E | Clip, Front Floor Cover, NO.1 |
| 58166F | Clip, Front Floor Cover, NO.2 |
| 58176C | Reinforcement, Parking Brake Base, NO.2 |
| 58211H | Pan, Center Floor |
| 58225G | Plate, Floor Panel Front End |
| 58282A | Base, Belt Anchor TO Floor Pan, NO.3 RH |
| 58283D | Base, Belt Anchor TO Floor Pan, NO.3 LH |
| 58305N | Extension Sub-assy, Rear Floor TO Quarter, RH |
| 58306B | Extension Sub-assy, Rear Floor TO Quarter, LH |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58315C | Extension, Rear Floor Side Panel, RH |
| 58316C | Extension, Rear Floor Side Panel, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58350 | Reinforcement Assy, Rear Floor Panel, RH |
| 58360 | Reinforcement Assy, Rear Floor Panel, LH |
| 58367B | Bracket, Fuel Tube |
| 58368B | Bracket, Fuel Tube, NO.2 |
| 58369A | Bracket, Fuel Tube, NO.3 |
| 58386B | Bracket, Rear Bumper Cover, NO.2 |
| 58387H | Plate, Rear Floor |
| 58388B | Bracket, Plate Rear Floor |
| 58390 | Cover Assy, Floor Under, NO.1 |
| 58398A | Clip, NO.3(FOR FLOOR UNDER COVER) |
| 58398H | Cover, Floor Under, NO.1 |
| 58398L | Clip, NO.4(FOR FLOOR UNDER COVER) |
| 58399B | Cover, Floor Under, NO.2 |
| 58399E | Clip, NO.1(FOR FLOOR UNDER COVER) |
| 58399F | Clip, NO.2(FOR FLOOR UNDER COVER) |
| 66259C | Cover, Rear Body Floor, Rear |
| 66259D | Clip, Rear Body Floor Cover, NO.1 |
| 66259E | Clip, Rear Body Floor Cover, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
