Toyota Prius Prime(PHV)

2016-09 → 2022-11 · chassis ZVW52 · catalogue 224430 · United States

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

25 part groups · 2 illustrations

Illustrations

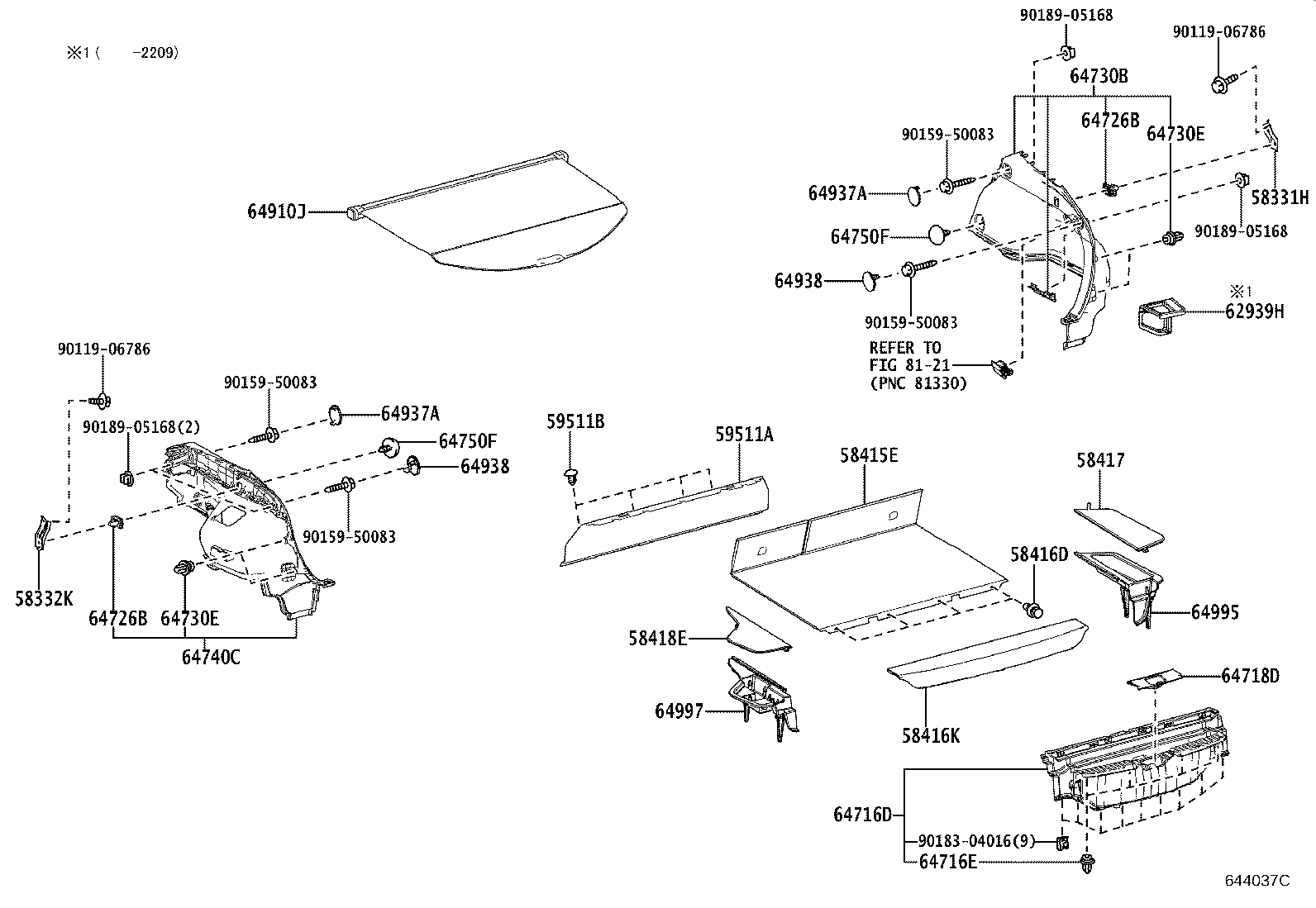

Figure 644027B 644027B 2016-09 → — Figure 644037C 644037C 2016-09 → —

Part groups

PNCDescription
58331H Bracket, Luggage Compartment Trim, NO.1
58332K Bracket, Luggage Compartment Trim, NO.2
58415E Board, Rear Floor, NO.1
58416D Clip, Rear Floor Board
58416K Board, Rear Floor, NO.2
58417 Board, Rear Floor, NO.3
58418E Board, Rear Floor, NO.4
59511A Board, Rear Floor Battery Cover, Front
59511B Clip, Rear Floor Battery Cover Board
62939H Silencer, Quarter Vent
64716D Cover, Deck Trim, Rear
64716E Clip(FOR DECK TRIM REAR COVER)
64718D Cover, Deck Trim Service Hole
64726B Clip, Deck Rear Trim
64730B Panel Assy, Deck Trim Side, RH
64730E Clip(FOR DECK TRIM SIDE BOARD)
64740C Panel Assy, Deck Trim Side, LH
64750F Clip(FOR DECK SIDE TRIM PANEL)
64910J Cover Assy, Tonneau
64937A Cap, Tonneau Cover Holder, NO.1
64938 Hook, Tonneau Cover, A
64995 Box, Deck Floor, RH
64997 Box, Deck Floor, LH
66311 Hook, Rope
66312 Hook, Rope, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
