Toyota Prius Prime(PHV)

2016-09 → 2022-11 · chassis ZVW52 · catalogue 224430 · United States

Supported model Data version 2023-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

43 part groups · 5 illustrations

Illustrations

71A388A 2016-09 → 2019-04

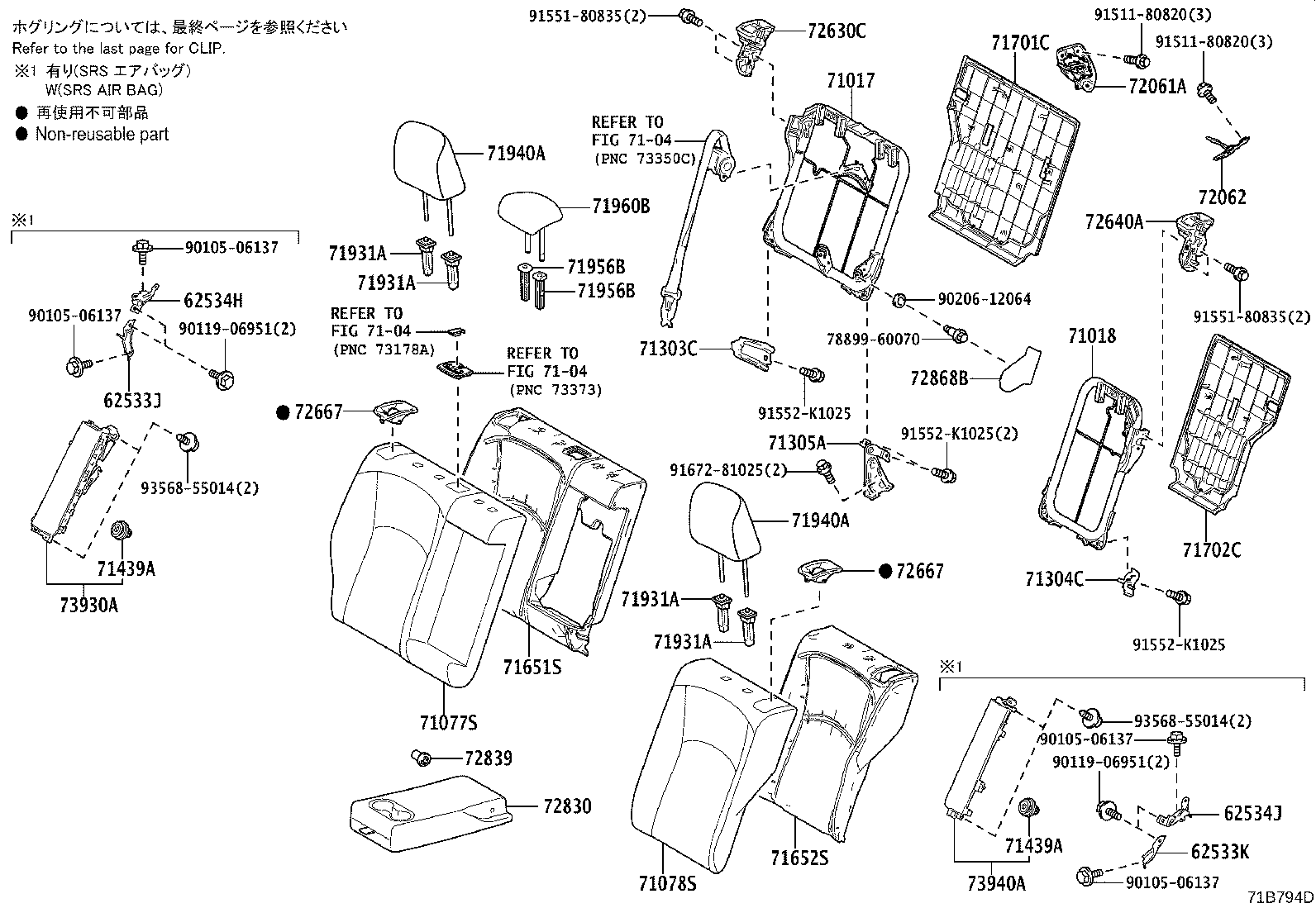

71B794D 2019-05 → —

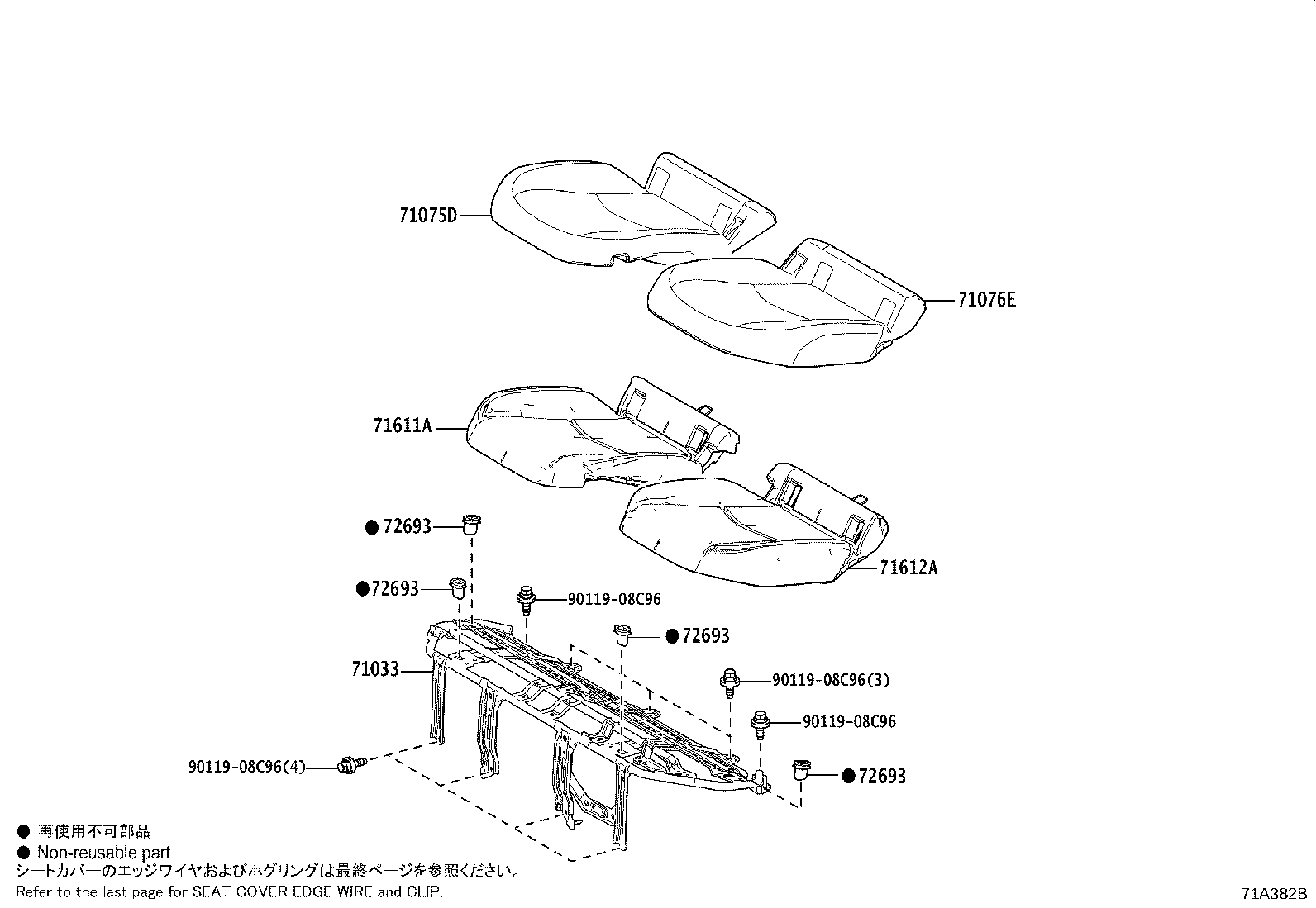

71A382A 2016-09 → 2019-04

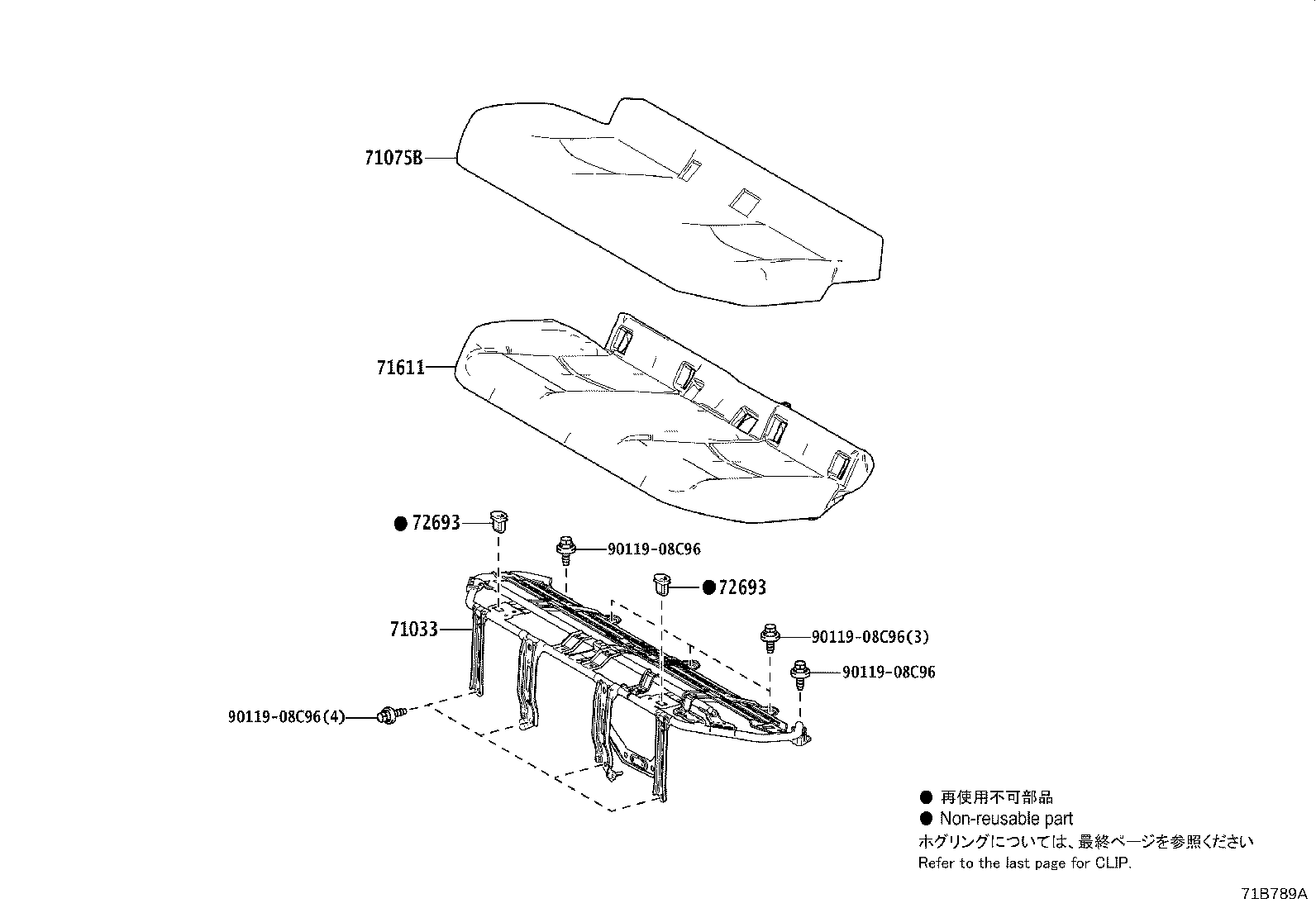

71B789A 2019-05 → —

718166A 2016-09 → —

Part groups

PNC	Description
62533J	Bracket, Side Trim, NO.1, RH
62533K	Bracket, Side Trim, NO.1, LH
62534H	Bracket, Side Trim, NO.2, RH
62534J	Bracket, Side Trim, NO.2, LH
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71033	Leg Sub-assy, Rear Seat Cushion
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075D	Cover Sub-assy, Rear Seat Cushion, RH
71076E	Cover Sub-assy, Rear Seat Cushion, LH
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71303C	Hinge Sub-assy, Rear Seatback, RH
71304C	Hinge Sub-assy, Rear Seatback, LH
71305A	Hinge Sub-assy, Rear Seatback, Center
71349E	Cover, Rear Seatback Hinge
71439A	Clip
71611	Pad, Rear Seat Cushion
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71701C	Board Sub-assy, Rear Seatback, RH
71702C	Board Sub-assy, Rear Seatback, LH
71846B	Cap, Rear Seatback Board, NO.1
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
71956B	Support, Rear Seat Headrest
71960B	Headrest Assy, Rear Seat, Center
72061A	Base Sub-assy, Rear Seatback Lock, RH
72062	Base Sub-assy, Rear Seatback Lock, LH
72630C	Lock Assy, Rear Seatback, RH
72640A	Lock Assy, Rear Seatback, LH
72667	Bezel, Rear Seatback Lock, Upper
72693	Hook, Rear Seat Cushion Lock
72810B	Armrest Assy, NO.1 Seat
72830	Armrest Assy, Rear Seat, Center
72839	Shim, Rear Seat Armrest Hinge
72868B	Cover, Center Armrest Hinge
73930A	Airbag Assy, Rear Seat, RH
73940A	Airbag Assy, Rear Seat, LH
79156A	Plate, NO.1 Seat Side, NO.1
79157A	Plate, NO.1 Seat Side, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
