Toyota Prius Prime(PHV)

2016-09 → 2022-11 · chassis ZVW52 · catalogue 224430 · United States

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

3 part groups · 2 illustrations

Illustrations

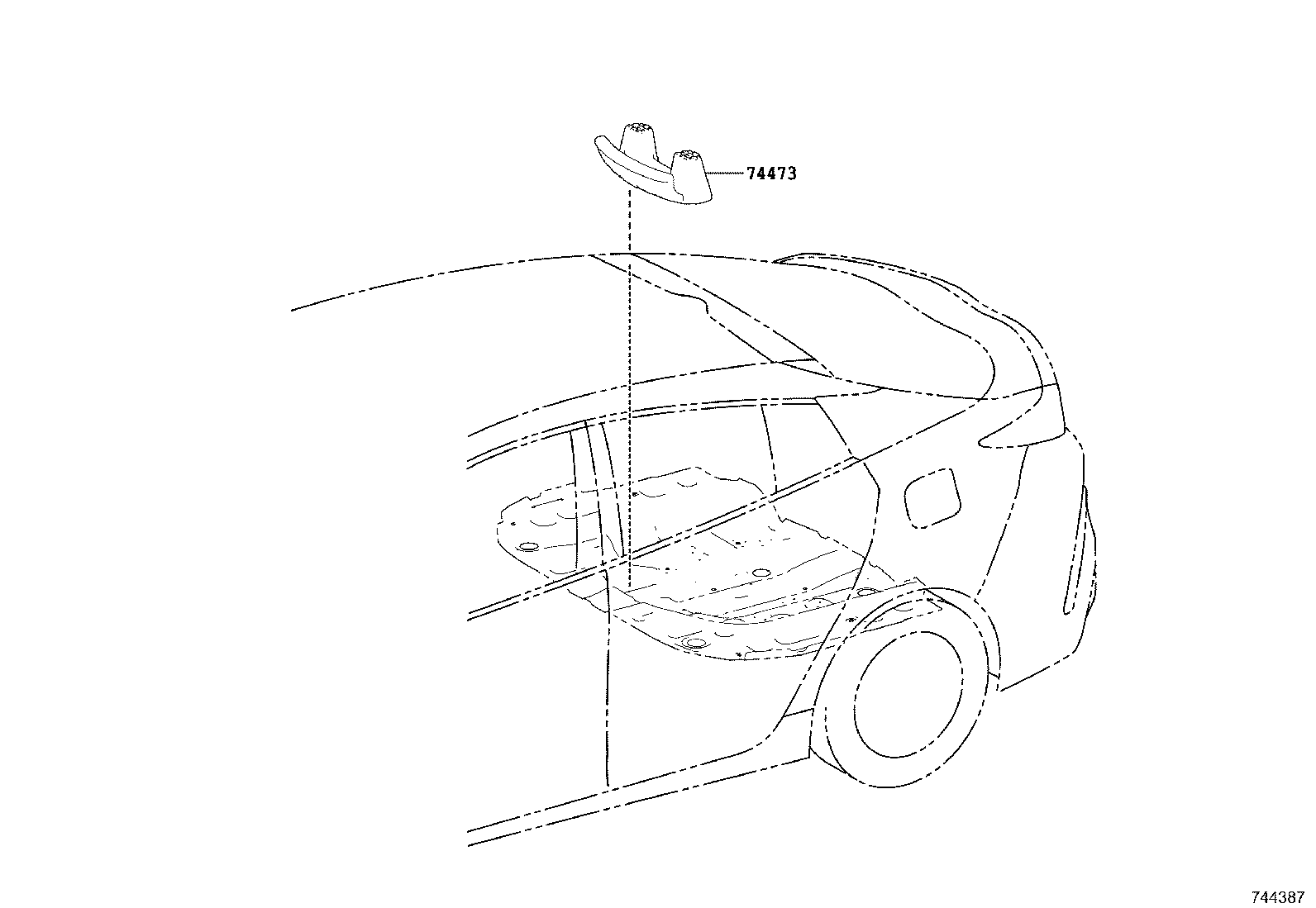

Figure 744386 744386 2016-09 → — Figure 744387 744387 2016-09 → —

Part groups

PNCDescription
74404A Clamp Sub-assy, Battery
74473 Spacer, Battery
74482 Clamp, Battery, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
