Toyota Prius Prime(PHV)
2016-09 → 2022-11 · chassis ZVW52 · catalogue 224430 · United States
Supported model
Data version 2023-12

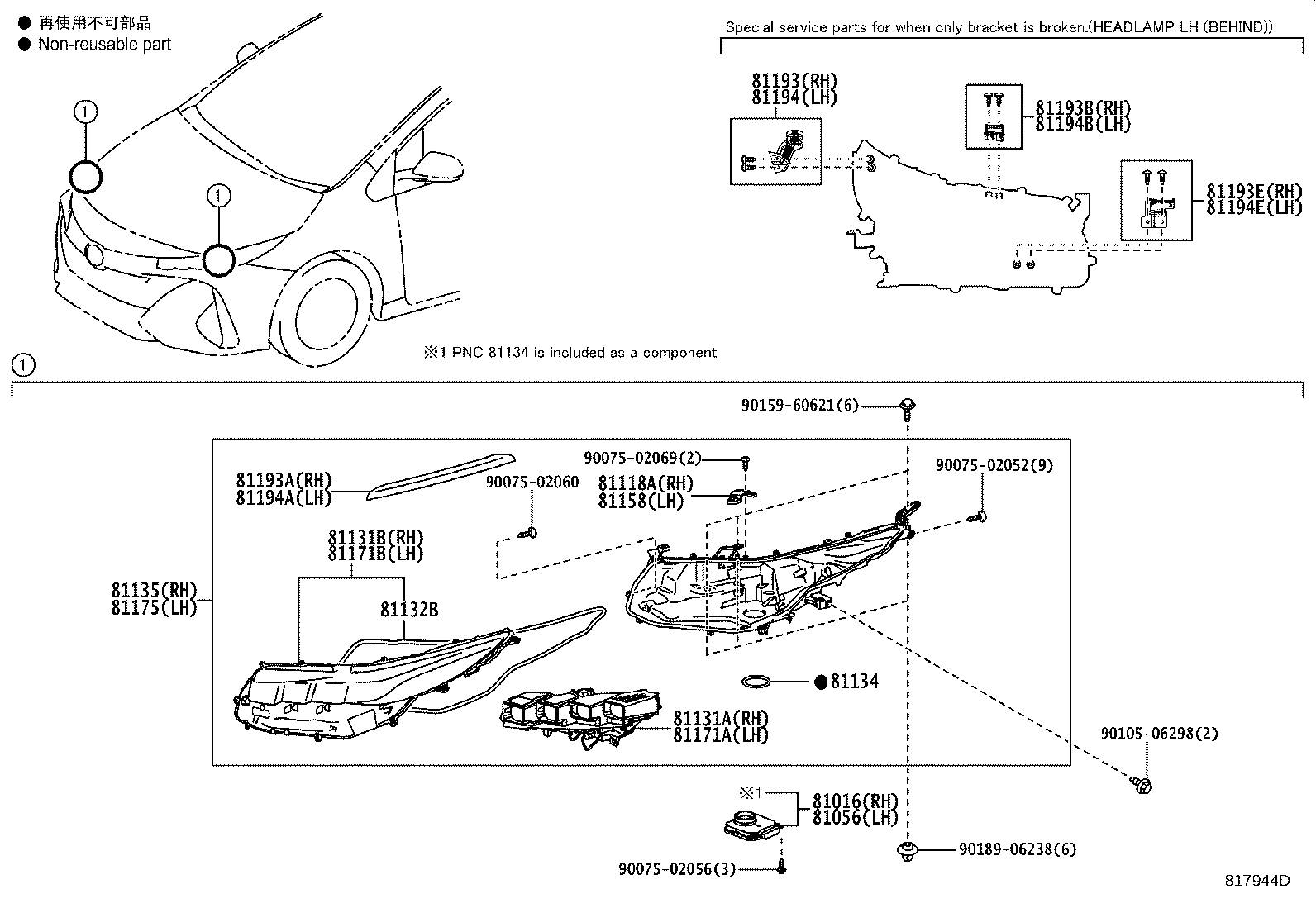

Headlamp
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81016 | Computer Sub-assy, Headlamp, RH NO.1 |
| 81056 | Computer Sub-assy, Headlamp, LH NO.1 |
| 81118A | Bracket, Headlamp, RH |
| 81131A | Unit, Headlamp, RH |
| 81131B | Head Lamp Lens, RH |
| 81132B | Gasket, Headlamp Lens |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81135C | Cover, Headlamp Back, NO.1 |
| 81158 | Bracket, Headlamp, LH |
| 81171A | Unit, Headlamp, LH |
| 81171B | Head Lamp Lens, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81193A | Protector, Headlamp, RH |
| 81193B | Retainer, Headlamp Protector, Upper RH NO.2 |
| 81193E | Retainer, Headlamp Protector, Upper RH NO.3 |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81194A | Protector, Headlamp, LH |
| 81194B | Retainer, Headlamp Protector, Upper LH NO.2 |
| 81194E | Retainer, Headlamp Protector, Upper LH NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
